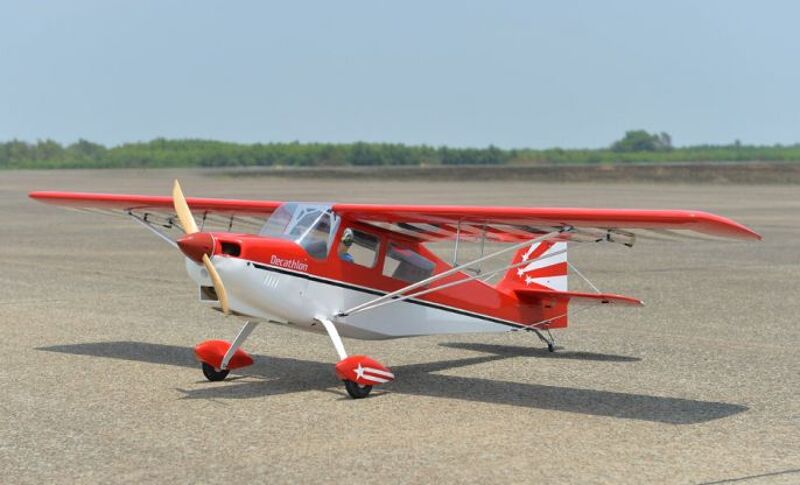

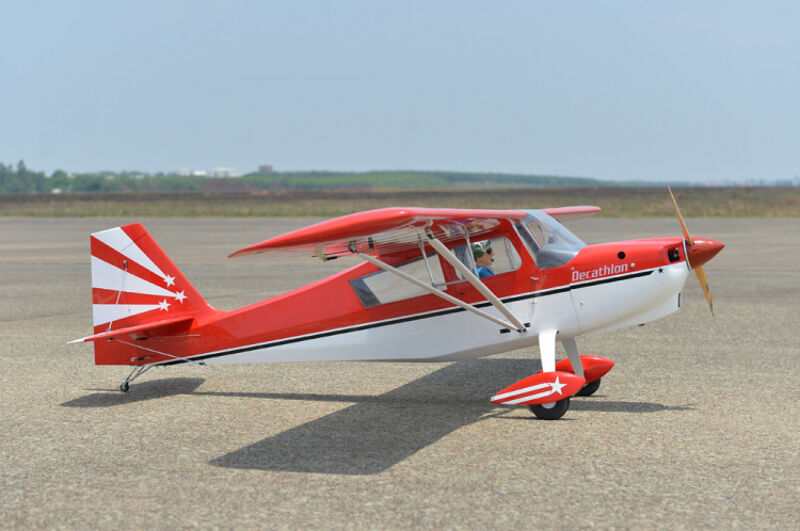

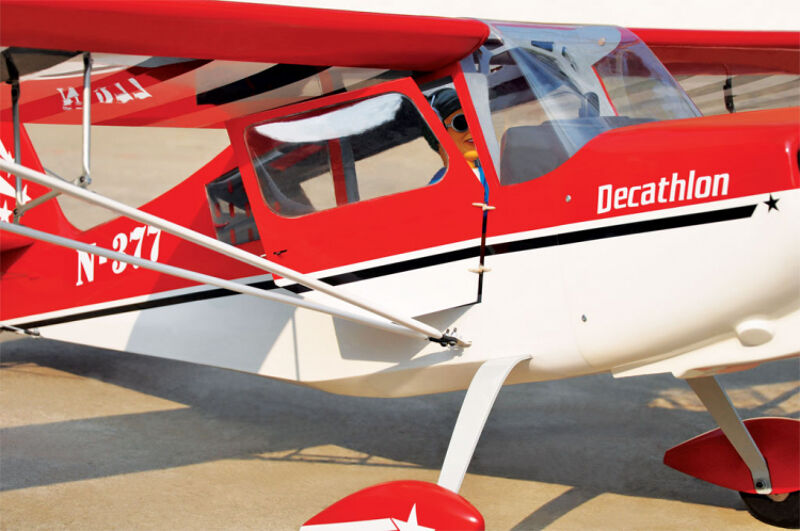

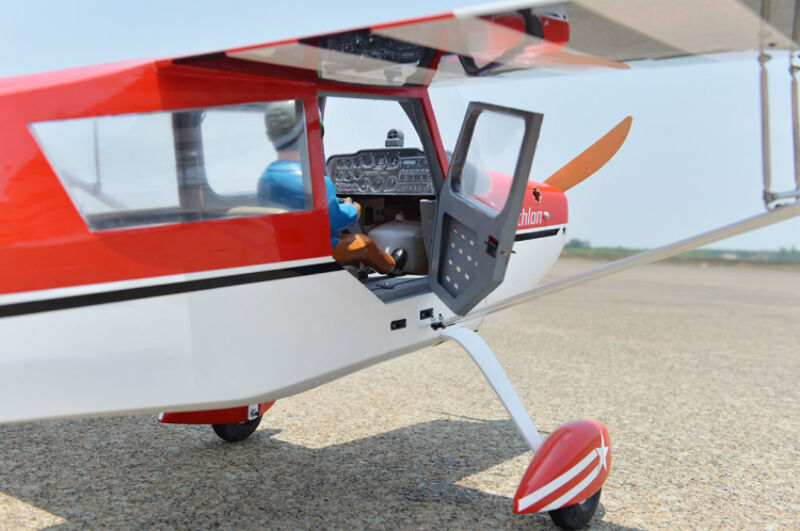

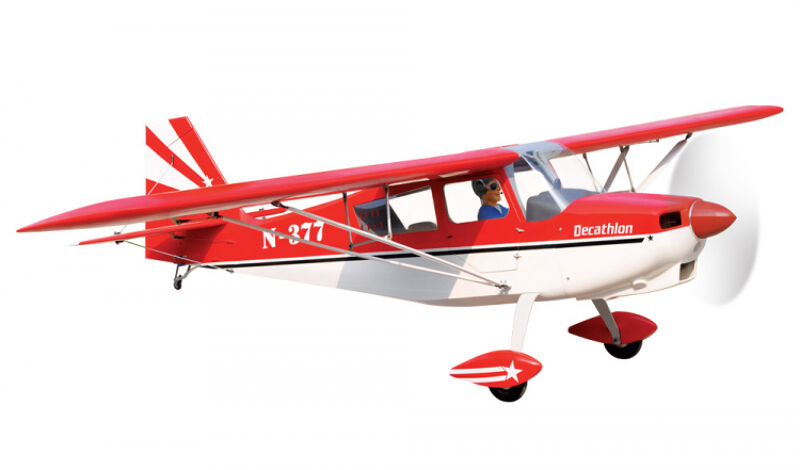

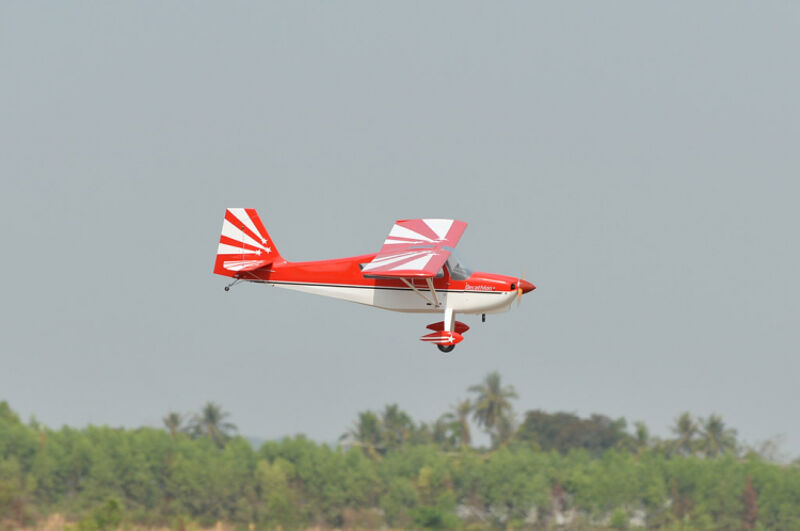

The American Champion 8KCAB Super Decathlon is a two-seat, fixed conventional gear light aerobatic aircraft designed for flight training and recreational flying. It is a modernized version of the Bellanca Decathlon and is known for its enhanced aerobatic capabilities, durability, and strong performance in both positive and negative G maneuvers. The Super Decathlon is powered by a Lycoming AEIO-360-H1B engine, providing reliable power for a variety of flight conditions. Its design includes a high-wing configuration, fabric-covered fuselage and wings, and a tailwheel undercarriage, making it adept at both standard and aerobatic flying, including spins, rolls, and loops.
SPECIFICATIONS:
- Wingspan: 2450 mm
- Length: 1750 mm
- Weight: 7.5 kg
- Wing area: 97 dm2
- Wing loading: 77 g/dm2
- Wing type: Naca Airfoil
- Spinner: 86mm
- Gear type: Aluminium Hi-grade for main gear and tail gear (included)
- Covered with Oracover
Parts listing required (not included):
- Engine: Gasoline 30-35cc
- Radio: 5-6 Channels
- Servo: 6 standard high torque servos - size: 40x20x38mm
Electric Conversion (not included):
- Brushless Motor: Outrunner "1.60" 2500–3200W, 250KV
- Lipo Battery: 12 cells 4000-5500mAh
- Receiver battery: 6V/ 1200mAh
- ESC: 80-100A
