Phoenix Model - Piper Super Cub PA-18 2720mm GP/EP ARF Kit
Phoenix Model
PH114
Trade prices excl. Mwst.
1/€ 858,68
Nur 1 auf Lager
€ 1.039,00€ 858,68 excl. Mwst.

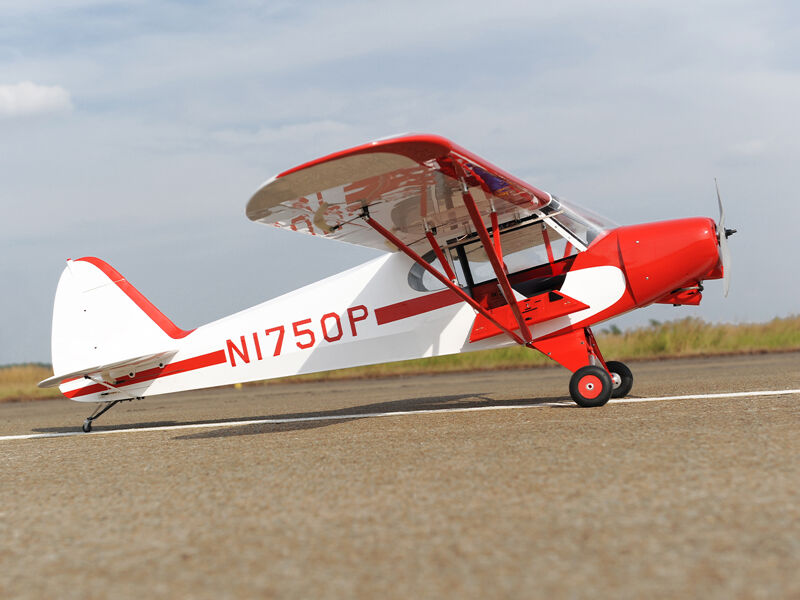

The Phoenix Piper Super Cub PA-18 from Phoenix Models impresses with its scale cockpit including pilot, the hollow hinged rudder and many other scale details. Another highlight is the robust and sprung undercarriage - this is already included in the scope of delivery.
The model is up to 95% prefabricated and covered with foil, high-quality small parts required for assembly are included in the scope of delivery.
The Piper Super Cup PA-18 is designed for operation with a 30ccm petrol engine or a 63mm brushless motor, the accessories for both drive variants are also included in the scope of delivery.
Thanks to the completely removable canopy, the battery can be changed quickly. The two-part wing and the two-part fuselage enable easy and comfortable transport.
Features:
Extremely light and high-strength, laser-cut wooden construction
GRP hood
Spring-loaded undercarriage
Two-part wing and horizontal tail unit
Detailed cockpit with pilot dummy
95% prefabrication, covered and painted
Electric or combustion operation possible
Technical data:
Span: 2720 mm
Length: 1742 mm
Weight: 9.000 – 9.500 g
Needed to complete :
Ailerons: 2x Servos
Elevator: 2x Servos
Rudder: 1x Servo
Flaps : 2x Servos
Motor (optional) : 1 Servo
Brushless motor: D-Power AL 63-03
Brushless motor set: D-Power SET BL-Motor AL63-03 & ESC 90A
Battery 5000mAh 10S Lipo
Combustion engine : 2 stroke: DLE 30 Power 3D V2 - 30 cc petrol engine (ONLY FOR GAS VERSION)
General Info
Brand
Phoenix Model
Item Nr
PH114
Airplane - Specs
Material
Wood
Wingspan (mm)
2720
Model Length (mm)
1742
Take-off Weight (g)
9250
Airplane - Functions
Controls
Flaps
Rudder
Ailerons
Motor
Elevator
Required Radio (Not included)
Min. 8 Channel
Airplane - Power System
Power System
Not Included (See Needed to complete)
Propeller / EDF
Not Included (See Needed to complete)
Speed Controller - ESC
Not Included (See Needed to complete)
Required Battery (Not included)
Li-Po 10S - 5000mAh - Min. 25C
Airplane - Electronics
Receiver
Not Included
Qty of Servos
7x Servos | 1 optional for GAS motor (Not Included | See Needed to complete)
