Hacker A30-14 M V2G 6-Pol kv3600 + 6,7:1

Hacker

HACK13716601

Artikel auf Bestellung beim Lieferanten

Dieser Artikel ist nicht vorrätig; er wird für Sie bei unserem Lieferanten bestellt. Die Lieferzeit hängt von der Verfügbarkeit beim Lieferanten ab.

€ 219,00 € 180,99 excl. Mwst.

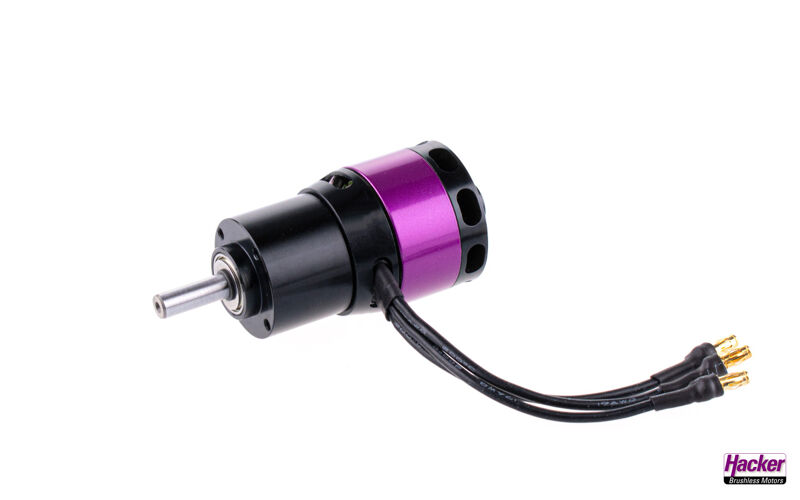

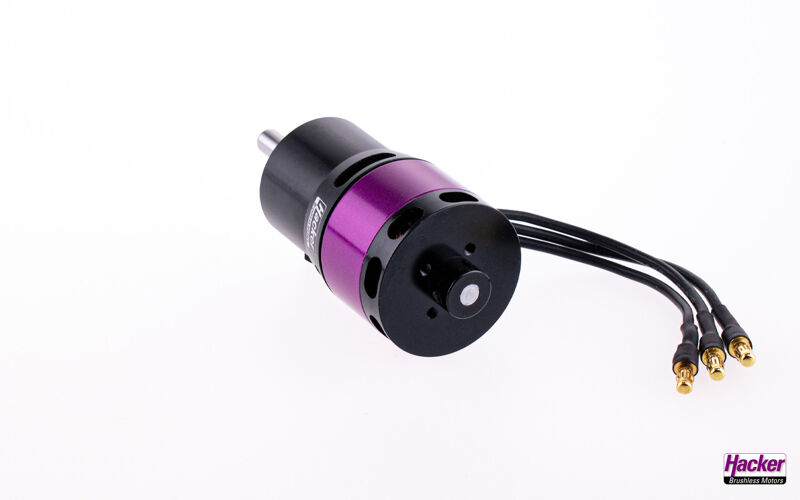

The compact, lightweight gearbox drive consists of the high-torque A30-M and our highly efficient 6.7:1 planetary gearbox. This makes the use of larger more efficient and quieter propellers possible. Propellers up to 18 inches can be driven by this power dwarf.

For use this only 157g light engine in the classes F3B, F3J and F5J, but of course can also be used in similar models and scale gliders. The takeoff weight is usually between 2.0 and 3.0 kg.

General Info

Brand: Hacker

Item Nr: HACK13716601

Barcode: 4250320273417,00

Motor - Specs

Motor - Input Voltage Range (V): 3S - 4S Li-Po

Motor - KV (Rpm/V): 3600,00

Motor - Poles: 6-Pole

Motor - Switching Frequency (kHz): 8 kHz

Motor - Timing: 10-15

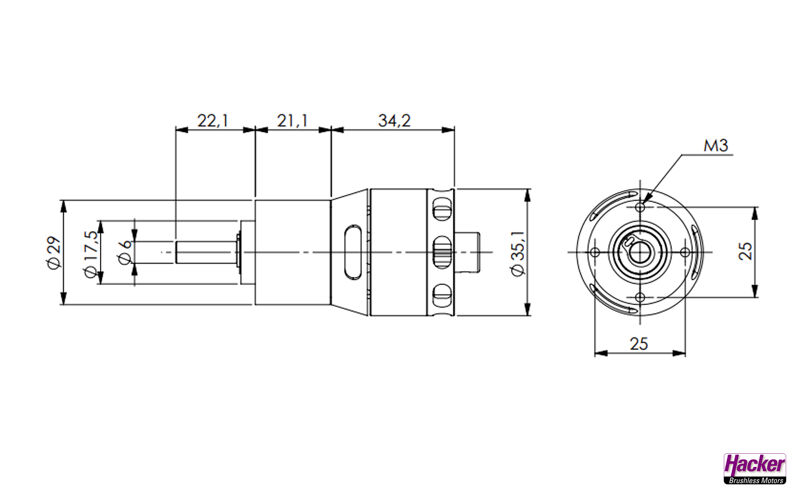

Motor - Dimensions

Motor - Dia. ø (mm): 35,10

Motor - Length (mm): 68,00

Motor - Shaft Dia. ø (mm): 6.0 mm

Motor - Weight (g): 157,00
