Hacker A10-7L kv2200 + 4,4:1

Hacker

HACK97104407

Artikel auf Bestellung beim Lieferanten

Dieser Artikel ist nicht vorrätig; er wird für Sie bei unserem Lieferanten bestellt. Die Lieferzeit hängt von der Verfügbarkeit beim Lieferanten ab.

€ 87,00 € 71,90 excl. Mwst.

The A10 motors are compact outrunner motors from our A-series and offer high efficiency at low weight. The A10 motors are available as direct drive and as gear drive for small motor and glider models. This small weight-optimized high-end direct drive is often used in motor and 3D models around 200g take-off weight.

The gearbox version is used in the HLG and RES class and is perfect for all small and light glider models up to approx. 700g take-off weight.

General Info

Brand: Hacker

Item Nr: HACK97104407

Barcode: 4250320240464,00

Motor - Specs

Motor - Input Voltage Range (V): 3S Li-Po

Motor - KV (Rpm/V): 2200,00

Motor - Poles: 12-Pole

Motor - Switching Frequency (kHz): 8 kHz

Motor - Timing: 20-25

Motor - Turns (T)

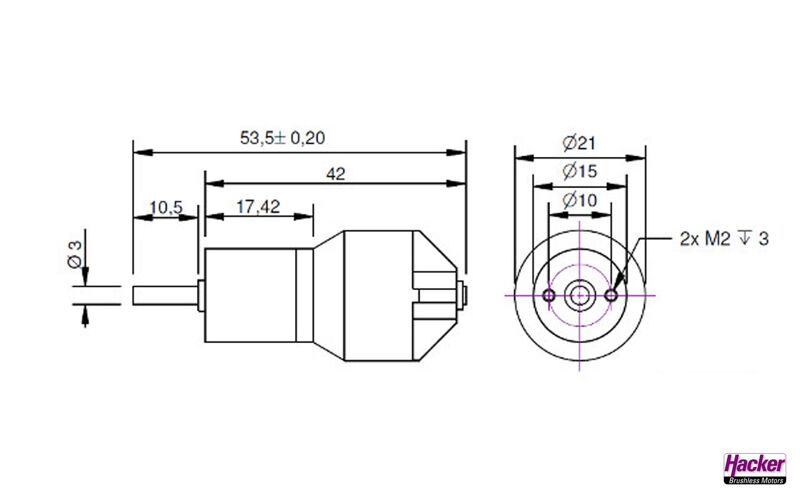

Motor - Dimensions

Motor - Dia. ø (mm): 21,00

Motor - Length (mm): 43,00

Motor - Shaft Dia. ø (mm): 3.0 mm

Motor - Weight (g): 40,00
