Hacker A20-34 S EVO kv1500

Hacker

HACK97800002

Artikel auf Bestellung beim Lieferanten

Dieser Artikel ist nicht vorrätig; er wird für Sie bei unserem Lieferanten bestellt. Die Lieferzeit hängt von der Verfügbarkeit beim Lieferanten ab.

€ 54,99 € 45,45 excl. Mwst.

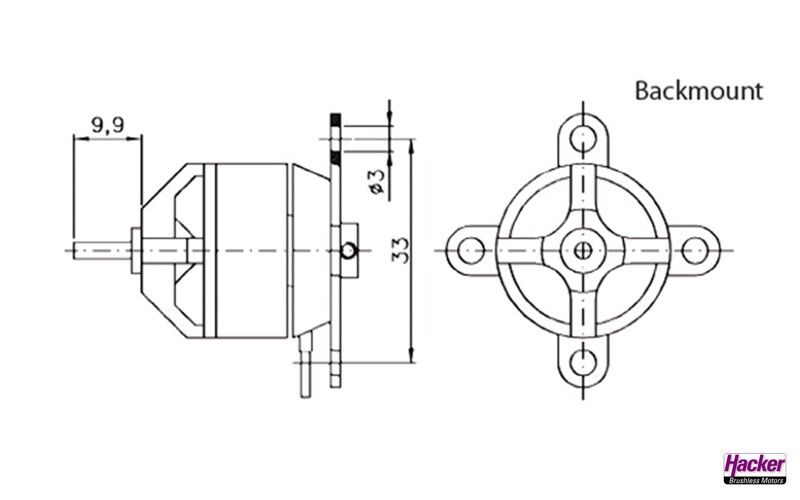

The 8, 10 and 14-pole outrunner motors of the A20 series are available in 4 lengths (S, M, L, XL), with a voltage range of 7.2V to 12.6V. As a result, they cover a wide range of applications from the 250g indoor model up to the 1.5kg electric glider. The A20 series is double ball bearing mounted, has an interchangeable 3mm shaft and can be front or back mounted.

The weight-optimised high-end motor A20-34 S EVO kv1500 with a weight of only 29g is perfectly suited for indoor 3D models up to 250g.

General Info

Brand: Hacker

Item Nr: HACK97800002

Barcode: 4250320200574,00

Motor - Specs

Motor - Input Voltage Range (V): 2S Li-Po

Motor - KV (Rpm/V): 1500,00

Motor - Poles: 14-Pole

Motor - Switching Frequency (kHz): 8 kHz

Motor - Timing: 20-25

Motor - Turns (T)

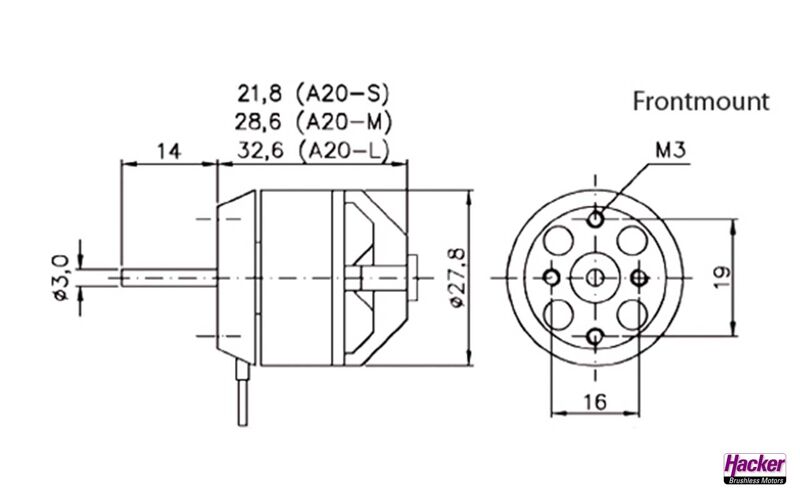

Motor - Dimensions

Motor - Dia. ø (mm): 28,00

Motor - Length (mm): 24,00

Motor - Shaft Dia. ø (mm): 3.0 mm

Motor - Weight (g): 29,00
