Hitec D85MG Digitale Servo (4,3 kg , 0,13s @ 6,0V)

Hitec D85MG Digitale Servo (4,3 kg , 0,13s @ 6,0V)

Hitec

HI1-00068

4 Auf Lager

€ 46,30 € 38,26 excl. Mwst.

High Response
High Resolution
Narrow Dead Band Width
High Standing Torque
Shock Protected Pot

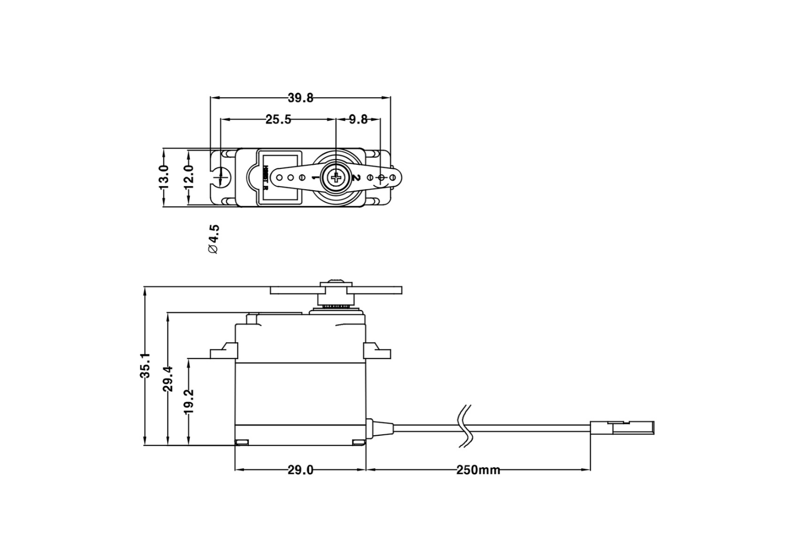

Dimensions (mm): 29.0 x 13.0 x 30.0
Weight (g): 21.9
Speed (sec/60°) 4.8V: 0.17, 6.0V: 0.13
Torque (Kg.cm) 4.8V: 3.6, 6.0V: 4.3
Motor Type: Brushed Motor
Encoder: Potentiometer
Communication : PWM
Servo Type : Digital
Max. Voltage (V) : 6,00
Max. Force (kg/cm): 4,30
Max. Setting Speed (sec / 60 degrees): 0,13
Gearing: H25T (Ø6,0)
Programmable

General Info

Brand: Hitec

Item Nr: HI1-00068

Barcode: 0,00

Servo - Specs

Speed 60°/Sec @ 4.8V: 0,17

Speed 60°/Sec @ 6.0V: 0,13

Torque kg/cm @ 4.8V: 3,60

Torque kg/cm @ 6.0V: 4,30

Servo - Dimensions

Servo Type: Mini Servo

Spline Type: 25T Spline

Length (mm): 29,00

Width (mm): 13,00

Height (mm): 30,00

Weight (g): 22,00

Servo - Technology

Technology: Digital

Operating Voltage (V): 4.8V - 6.0V

Servo Motor: Brushed Motor

Servo Protection: None

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Metal Gears

Servo Case: Composite Case

Connector: JR Universal + Colored Lead
