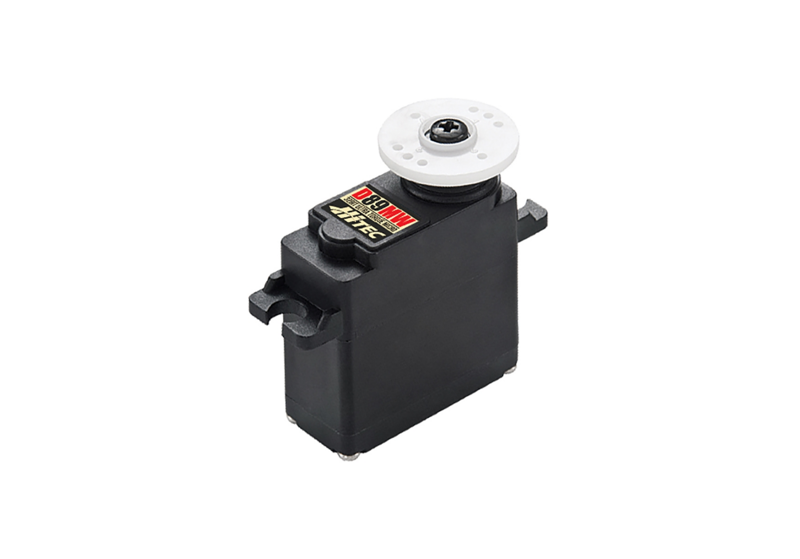

Replacing the standard-size HS-5485HB and HS-5495BH servos, the sport class D485HW brings faster response and accuracy to your various radio control needs with D-series high resolution 32-bit technology and wide voltage operation.
Programmable (using a Hitec servo programmer)
- High Response
- High Resolution
- Narrow Dead Band Width
- High Standing Torque
- Shock Protected Pot
- Dimensions (mm): 29.0 x 13.0 x 30.0
- Weight (g): 21.9
- Speed (sec/60°) 4.8V: 0.17, 6.0V: 0.13
- Torque (Kg.cm) 4.8V: 3.6, 6.0V: 4.3
- Motor Type: Brushed Motor
- Encoder: Potentiometer
- Communication : PWM
- Servo Type : Digital
- Max. Voltage (V) : 6,00
- Max. Force (kg/cm): 4,30
- Max. Setting Speed (sec / 60 degrees): 0,13
- Gearing: H25T (Ø6,0)
