Hitec HS-53 Servo (1,9 kg , 0,11s @ 6,0V)

Hitec HS-53 Servo (1,9 kg , 0,11s @ 6,0V)

Hitec

HI112053

5 Auf Lager

€ 14,40 € 11,90 excl. Mwst.

Durable Nylon Gears
Three-Pole Cored Motor
Feather-Weight
Economically Priced
Bearing Type: None
Speed (4.8V/6.0V): 0.16 / 0.13
Torque kg./cm. (4.8V/6.0V): 1.2 / 1.5

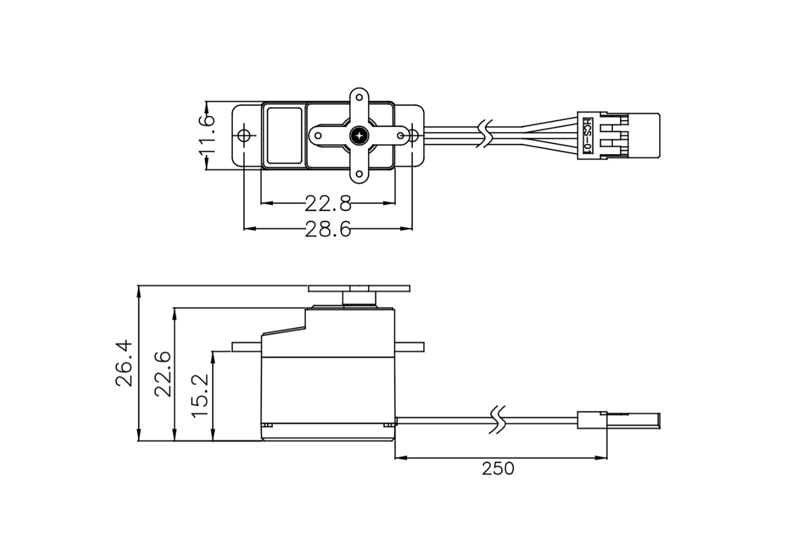

Size in Millimeters: 22.8 x 11.6 x 22.6
Weight grams: 8.0
Motor Type: Brushed Motor
Encoder: Potentiometer
Communication : PWM
Servo Type : Analogue
Max. Voltage (V) : 6,00
Max. Force (kg/cm) : 1,50
Max. Setting Speed (sec / 60 degrees): 0,13
Gearing: H24T (Ø6,0)

General Info

Brand: Hitec

Item Nr: HI112053

Barcode: 0,00

Servo - Specs

Speed 60°/Sec @ 4.8V: 0,18

Speed 60°/Sec @ 6.0V: 0,14

Speed 60°/Sec @ 7.4V

Speed 60°/Sec @ 8.4V

Torque kg/cm @ 4.8V: 1,00

Torque kg/cm @ 6.0V: 2,00

Torque kg/cm @ 7.4V

Torque kg/cm @ 8.4V

Quiescent Current (mA)

Rated Current (mA)

Blocking Current (mA)

Servo - Dimensions

Servo Type: Nano Servo

Spline Type: 24T Spline

Length (mm): 23,00

Width (mm): 12,00

Height (mm): 24,00

Weight (g): 8,00

Servo - Technology

Technology: Analog

Operating Voltage (V): 4.8V - 6.0V

Servo Motor: Brushed Motor

Servo Protection: None

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Composite Gears

Servo Case: Composite Case

Connector: JR Universal + Colored Lead
