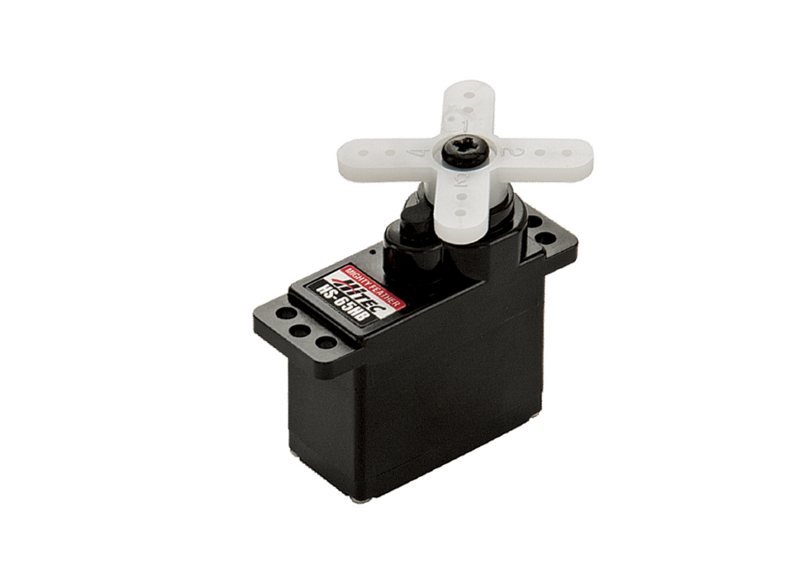

Hitec HS-65HB Micro Servo mit Karbonit-Zahnrädern (2,2 kg , 0,11s @ 6,0V)

Hitec HS-65HB Micro Servo mit Karbonit-Zahnrädern (2,2 kg , 0,11s @ 6,0V)

Hitec

HI112065

6 Auf Lager

€ 25,70 € 21,24 excl. Mwst.

Strong Karbonite Gears
Ball Bearing-Supported Output Shaft
High Torque and High Speed
Motor Type: 3 Pole brushed
Bearing Type: Top Ball Bearing
Speed (4.8V/6.0V): 0.14 / 0.11 sec @ 60 deg.
Torque kg./cm. (4.8V/6.0V): 1.8 / 2.2
Size in Millimeters: 23.34 x 11.43 x 23.88
Weight grams: 11.0
Encoder: Potentiometer
Communication : PWM
Servo Type : Analogue
Max. Voltage (V) : 6,00
Max. Force (kg/cm) : 2,20
Max. Setting Speed (sec / 60 degrees): 0,11
Gearing: H24T (Ø6,0)

General Info

Brand: Hitec

Item Nr: HI112065

Barcode: 0,00

Servo - Specs

Speed 60°/Sec @ 4.8V: 0,14

Speed 60°/Sec @ 6.0V: 0,11

Torque kg/cm @ 4.8V: 1,80

Torque kg/cm @ 6.0V: 2,20

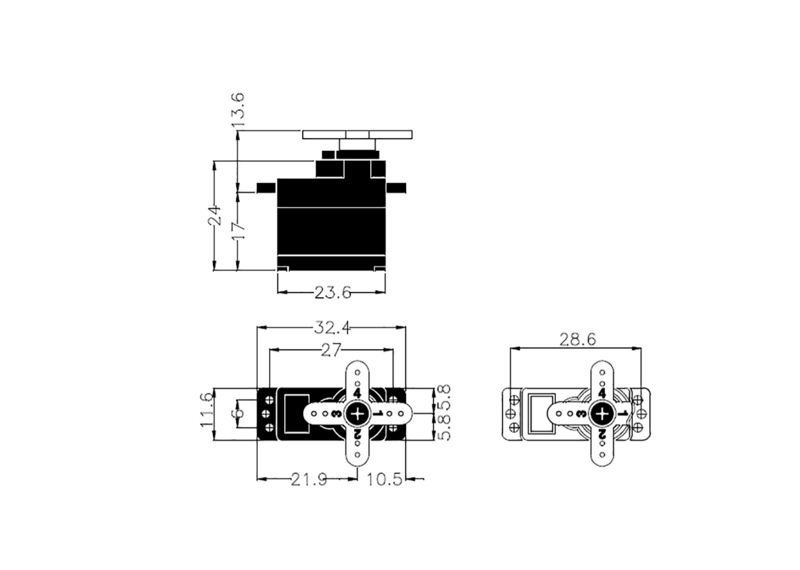

Servo - Dimensions

Servo Type: Micro Servo

Spline Type: 24T Spline

Length (mm): 23,30

Width (mm): 11,40

Height (mm): 24,00

Weight (g): 11,00

Servo - Technology

Technology: Analog

Operating Voltage (V): 4.8V - 6.0V

Servo Motor: Brushed Motor

Servo Protection: None

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Composite Gears

Servo Case: Composite Case

Connector: JR Universal + Colored Lead
