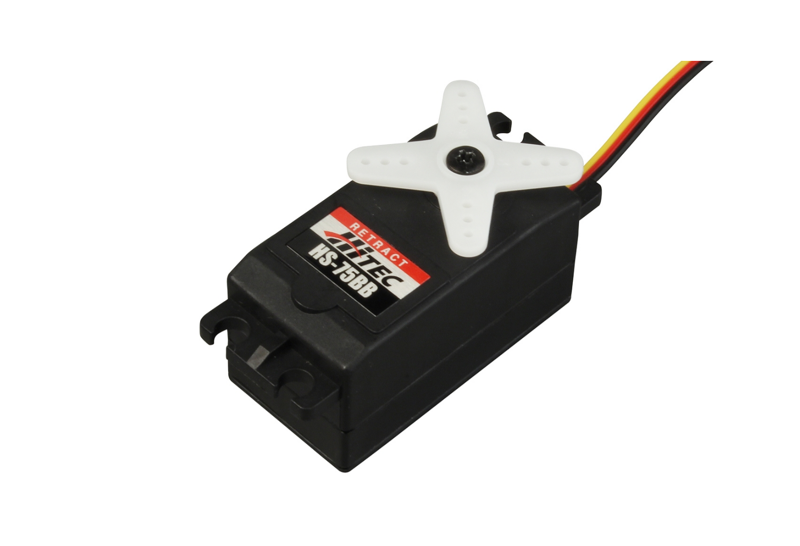

With its low profile design, strong torque and precision movement, the HS-75BB is a great choice to move your retract gear in a realistic manner that you need. Note, this is a retract or “bang bang” servo and only travels from one end to the other (180 degrees). If you require a proportional servo this size, use the Hitec HS-77BB.
- Low profile design
- High torque
- Slow speed for realistic run-in action
- nylon gears
- 1 ball bearing
- Motor Type: 3 Pole Brushed
- Bearing Type: Top Ball Bearing
- Speed (4.8V/6.0V): 0.45 / 0.34 sec @ 180 deg.
- Torque kg./cm. (4.8V/6.0V): 6.6 / 8.2
- Size in Millimeters: 43.94 x 22.86 x 24.89
- Weight grams: 34.87
- Encoder : Potentiometer
- Communication : PWM
- Servo Type : Analogue
- Max. Voltage (V) : 6,00
- Max. Force (kg/cm): 8,20
- Max. Setting Speed (sec / 60 degrees): 0,34
- Gearing: H24T (Ø6,0)
