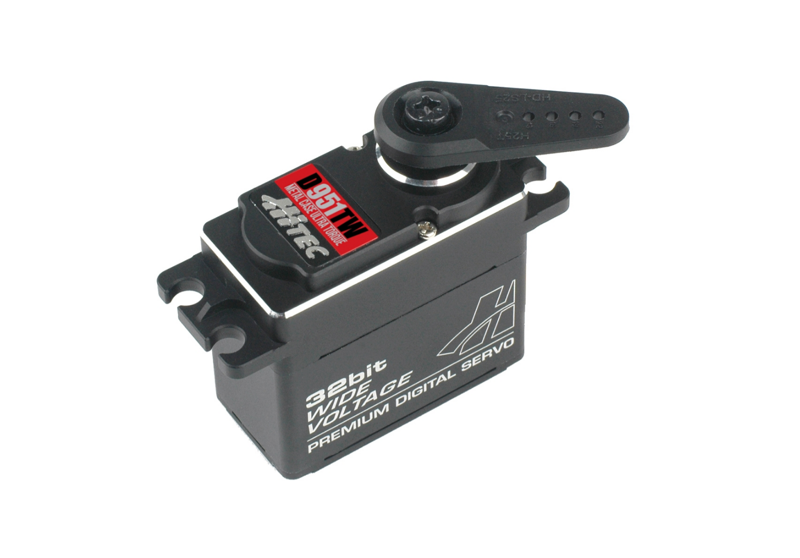

Hitec D951TW Digital Standard Servo (35 kg, 0,14s @ 7,4V)

Hitec D951TW Digital Standard Servo (35 kg, 0,14s @ 7,4V)

Hitec

HI116951

Nicht auf Lager

€ 158,90 € 131,32 excl. Mwst.

Width: 20 mm
Height: 38 mm
Length: 40 mm
Weight: 80g
Servo Type: Standard
Motor type Servos: coreless
Gears: Titanium
Operating Voltage in V: 4.8-8.4 V
Operating time s / 60 ° at 4.8 volts: 0.23, at 6.0 volts: 0.17, at 7.4 volts: 0.14
Torque in kgcm at 4.8 volts: 21, at 6.0 volts: 29, at 7.4 volts: 35
Encoder : Potentiometer
Communication : PWM
Servo Type : Digital
Max. Voltage (V) : 7,40
Max. Force (kg/cm) : 35,00
Max. Setting Speed (sec / 60 degrees): 0,14
Gearing: H25T (Ø6,0)

General Info

Brand: Hitec

Item Nr: HI116951

Barcode: 0,00

Servo - Specs

Speed 60°/Sec @ 4.8V: 0,23

Speed 60°/Sec @ 6.0V: 0,17

Speed 60°/Sec @ 7.4V: 0,14

Torque kg/cm @ 4.8V: 21,00

Torque kg/cm @ 6.0V: 29,00

Torque kg/cm @ 7.4V: 35,00

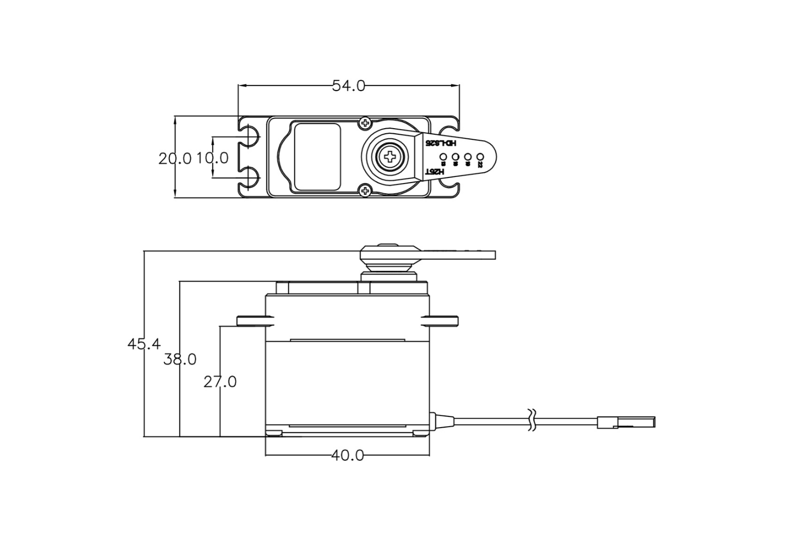

Servo - Dimensions

Servo Type: Standard Servo

Spline Type: 25T Spline

Length (mm): 40,00

Width (mm): 20,00

Height (mm): 38,00

Weight (g): 80,00

Servo - Technology

Technology: Digital HV

Operating Voltage (V): 4.8V - 7.4V

Servo Motor: Coreless Motor

Servo Protection: None

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Titanium Gears

Servo Case: Aluminium Case

Connector: JR Universal + Colored Lead
