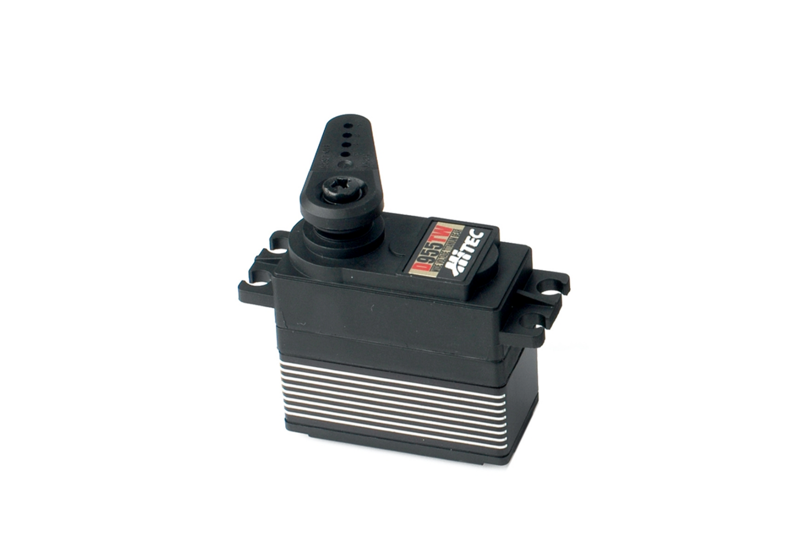

Hitec D955TW Digital Standard Servo (29 kg, 0,12s @ 7,4V)

Hitec D955TW Digital Standard Servo (29 kg, 0,12s @ 7,4V)

Hitec

HI116955

Artikel auf Bestellung beim Lieferanten

Dieser Artikel ist nicht vorrätig; er wird für Sie bei unserem Lieferanten bestellt. Die Lieferzeit hängt von der Verfügbarkeit beim Lieferanten ab.

€ 113,20 € 93,55 excl. Mwst.

Programmable PWM Digital Amplifier
32-Bit MCU with 12-Bit ADC Circuitry
4096 Resolution
1M Cycle Long Life Potentiometer
Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
Dual Ball Bearing Supported Output Shaft
25-Tooth Output Spline
Coreless Metal Brush Motors
Nylon Reinforced Plastic Upper and Lower Case
Diamond Cut Aluminum Heat Sink Center Case
Dust Resistant and Splash Proof Case
Operating Voltage Range (Volts DC): 4.8V ~ 7.4V
Speed (Second @ 60°): 0.19 ~ 0.12
Maximum Torque Range oz. / in.: 251 ~ 404
Maximum Torque Range kg. / cm.: 18.0 ~ 29.0
Current Draw at Idle: 30 mA
No Load Operating Current Draw: 500 mA
Stall Current Draw: 5,200 mA
Dead Band Width: 1 µs

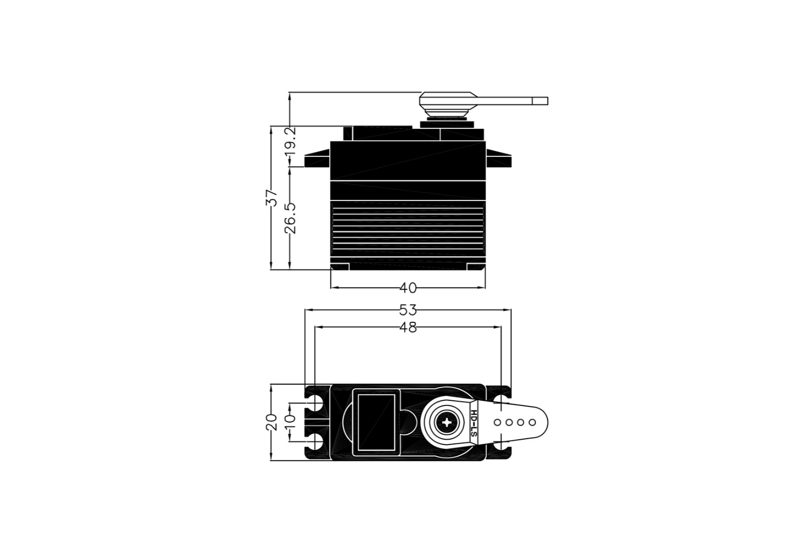

Dimensions (Inches): 1.57 x 0.78 x 1.46
Dimensions (Metric): 40.0 x 20.0 x 37.0
Weight (Ounces): 2.33
Weight (Gram): 66.0
Circuit Type: 32bit Programable Digital
Motor Type: Coreless Metal Brush
Gear Material: MK 1st Gear & 3 Titanium Gears
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): H25T
Case Material: Plastic / Aluminum
Dust / Water Resistance: Splash Proof
Connector Gauge (AWG) / Strand Count 20 / 80

Programmable functions

End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Soft Start Rate
Overload Protection
Data Save / Load
Program Reset

General Info

Brand: Hitec

Item Nr: HI116955

Barcode: 0,00

Servo - Specs

Speed 60°/Sec @ 4.8V: 0,19

Speed 60°/Sec @ 7.4V: 0,12

Torque kg/cm @ 4.8V: 18,00

Torque kg/cm @ 7.4V: 29,00

Servo - Dimensions

Servo Type: Standard Servo

Spline Type: 25T Spline

Length (mm): 40,00

Width (mm): 20,00

Height (mm): 37,00

Weight (g): 66,00

Servo - Technology

Technology: Digital HV

Operating Voltage (V): 4.8V - 7.4V

Servo Motor: Coreless Motor

Servo Protection: None

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Titanium Gears

Servo Case: Aluminium Case

Connector: JR Universal + Colored Lead
