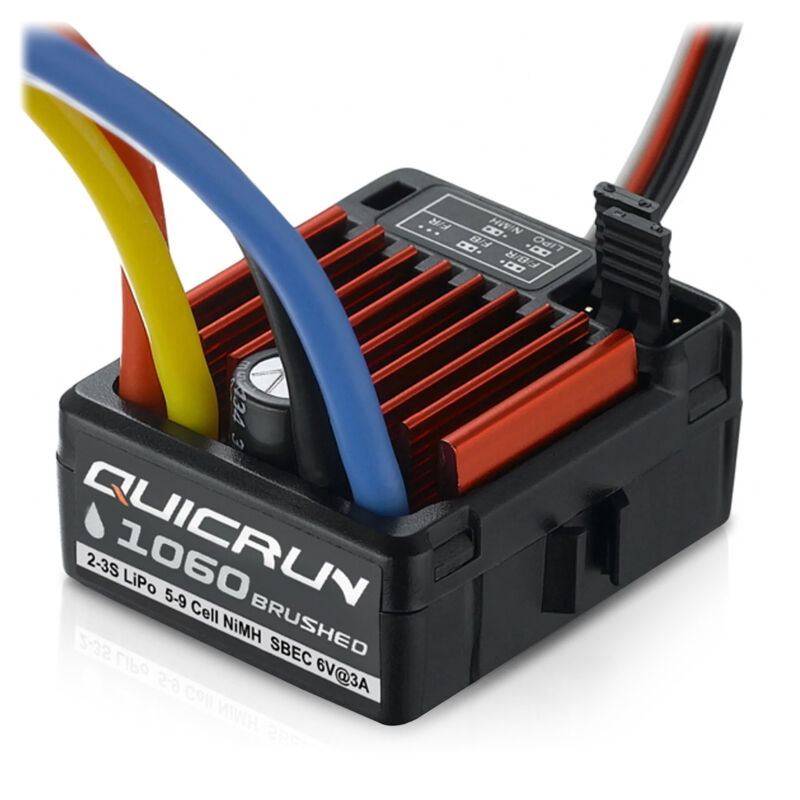

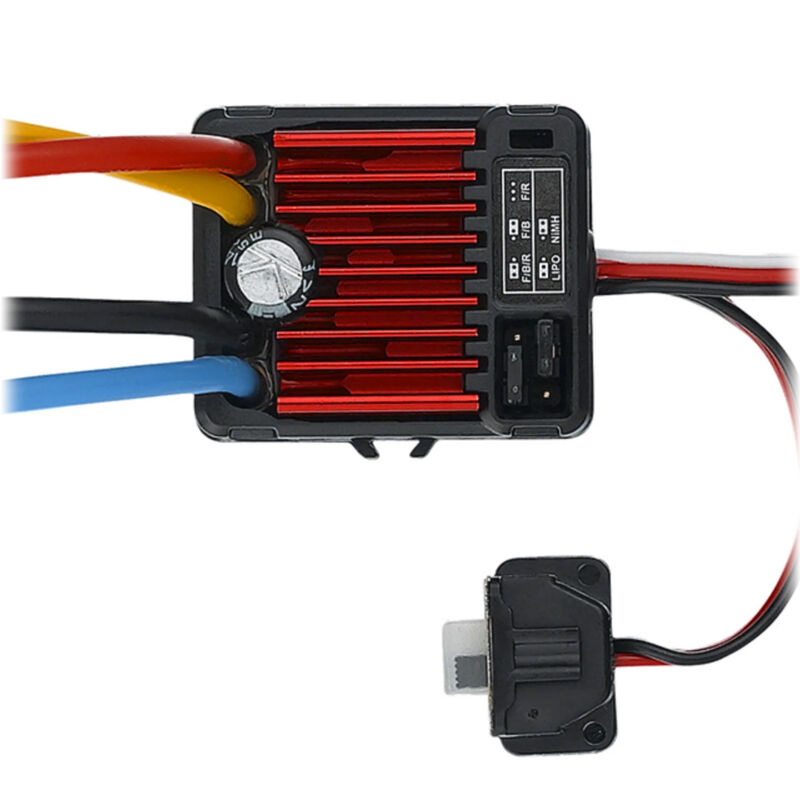

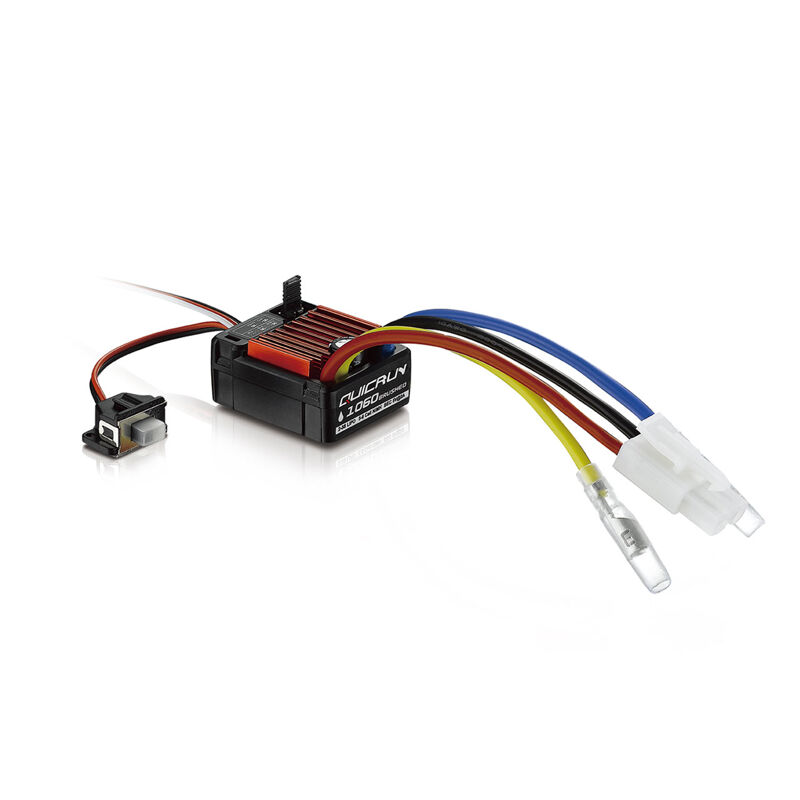

The QuicRun series of products include brushed power systems, sensored brushless power systems and sensorless brushless power systems. They are very cost-effective, and specially for beginners and intermediate-level drivers. This series not only continue the outstanding quality of HOBBYWING products, but also simplify the operation. Users can directly use them without any complicated adjustments.
Features :
- Water-proof and dust-proof, suitable for all-weather condition races.
- Small size with built-in capacitor module.
- Four running modes to fit various vehicles
- Fwd/Br/Rev
- Fwd/Br
- Fwd/Rev (also called "Crawler Mode")
- (Note: Fwd =Forward, Br=Brake, Rev=Reverse)
- Great current endurance capability.
- Switch mode built-in BEC has powerful output.
- Automatic throttle range calibration, easy to use.
- Easy to set the ESC parameters with jumpers.
- Multiple protections: Low voltage cut-off protection for battery / Thermal (Over-heat) protection / Throttle signal loss protection.
Technical Specifications :
- Fwd. Cont. / Peak Current : 60A / 360A
- Rev. Cont. / Peak Current : 30A / 180A
- Voltage Range : 2-3S Lipo or 5-9 NiMH
- Scale : 1/10
- Application : Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler, Tank
- Motor Limit :
2S Lipo or 6 cells NiMH: 540, 550 Size Motor: >=12T or RPM<30000 @7.2V
3S Lipo or 9 cells NiMH: 540, 550 Size Motor: >=18T or RPM<20000 @7.2V - BEC Output : 3A / 6V
- Plugs : Tamiya
- Dimensions : 36.5 x 32 x 18mm
- Weight : 39g
- The ESC can be programmed by jumpers.
- Running Mode : Fwd/Br/Rev , Fwd/Br , Fwd/Rev (Crawler)
- Battery Type : Lipo / NiMH
