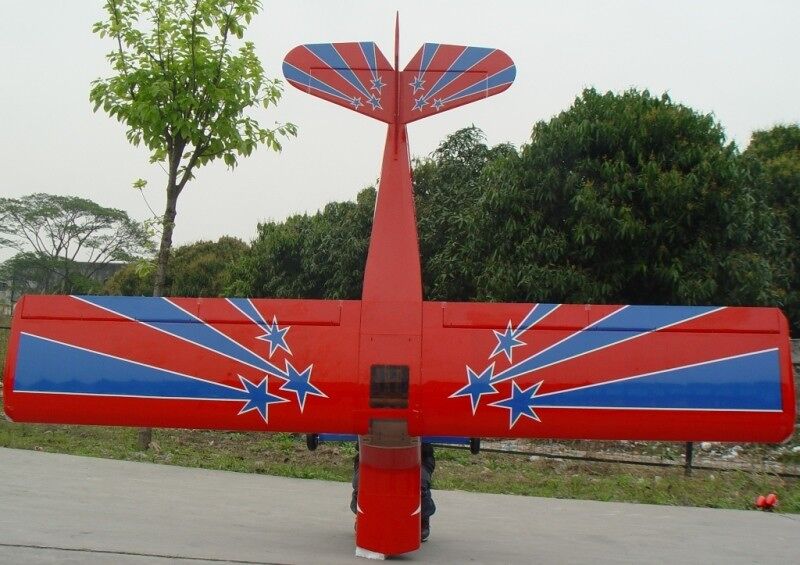

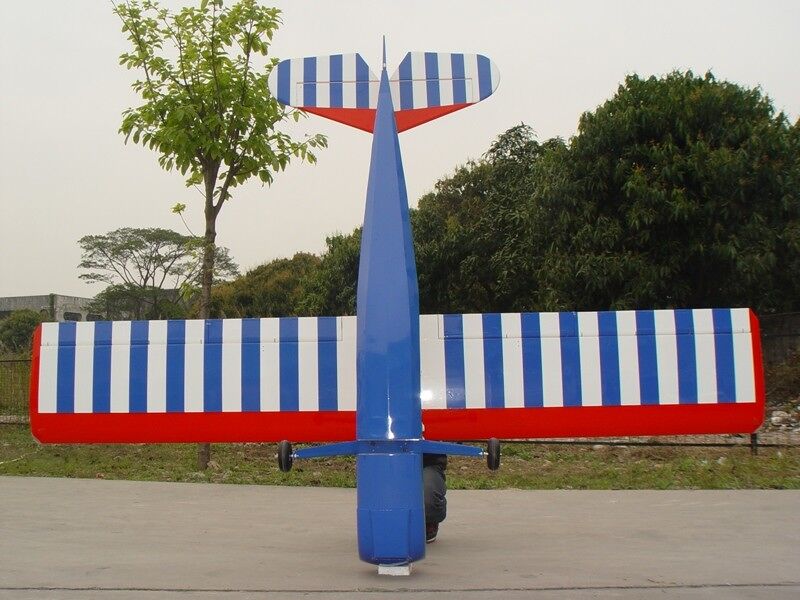

Pilot RC - Decathlon 150", Red/Blue/White ARF Kit (Scheme CH3)
Pilot-RC
PILDEC150DECH3
Artikel auf Bestellung beim Lieferanten
Dieser Artikel ist nicht vorrätig; er wird für Sie bei unserem Lieferanten bestellt. Die Lieferzeit hängt von der Verfügbarkeit beim Lieferanten ab.
€ 1.949,00€ 1.610,74 excl. Mwst.
If you are looking for a big plane that runs on a small engine and can still do all the tricks while still being stable, forgiving and even relaxing… You need a Decathlon!
SPECIFICATIONS:
Model:
Decathlon – 40%
Wingspan:
150″ (3.810mm)
Length:
102″ (2.580mm)
Wing area:
3,758 “² (24,245 cm²)
Weight:
39.24lbs (17.8kg)
FEATURES:
Strong yet light weight design, good for acrobatic flying and can even hover!
Genuine German Oracover (Ultracote) covering
Fast to put together at the field
Highly prefabricated, experienced builders can have air ready in under a day
Pre-installed hinges (glued and pinned)
Internally mounted cowling – so no external screws exposed
Removable rudder (as well as removable wings and stabs)
Laser engraved motor mounting position and multiple servo locations available for Rudder setup (pull pull or direct push pull)
Optional LED Light Set
INCLUDED HARDWARE:
Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
Pre-installed hinges and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Wheels, axels and wheel pants
Pre-preared pull-pull wires and pushrods with ball links
Matching carbon spinner, 5″
REQUIRED HARDWARE:
Motor: 80-120cc or equivalent electric
Servos: 10 high torque (minimum 20kg) plus throttle // Uses x2 per aileron, x1 per flap, x1 per elevator and x2 on rudder
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.
General Info
Brand
Pilot-RC
Item Nr
PILDEC150DECH3
Airplane - Specs
Material
Wood
Wingspan (mm)
3810,00
Model Length (mm)
2580,00
Take-off Weight (g)
17800,00
Airplane - Functions
Controls
Rudder
Elevator
Ailerons
Flaps
Motor
Required Radio (Not included)
Min. 8 Channel
Airplane - Power System
Power System
Not Included (See Needed to complete)
Propeller / EDF
Not Included (See Needed to complete)
Speed Controller - ESC
Not Included (See Needed to complete)
Airplane - Electronics
Receiver
Not Included
Qty of Servos
11x Servos | (Not Included | See Needed to complete)
