Pilot-RC already surprised everyone with a new level of precision and with our extremely popular ,ExtraNG ,Slick . We have now taken all these great features and grown them into our new EDGE V3.

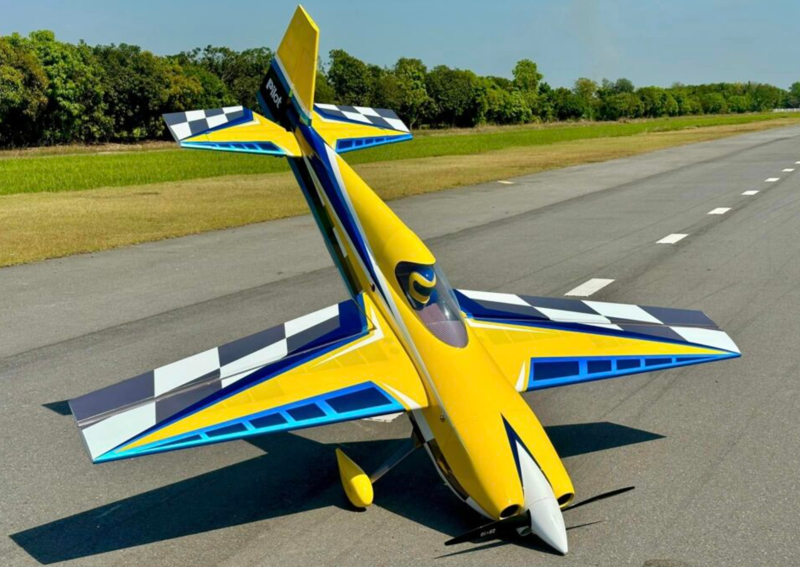

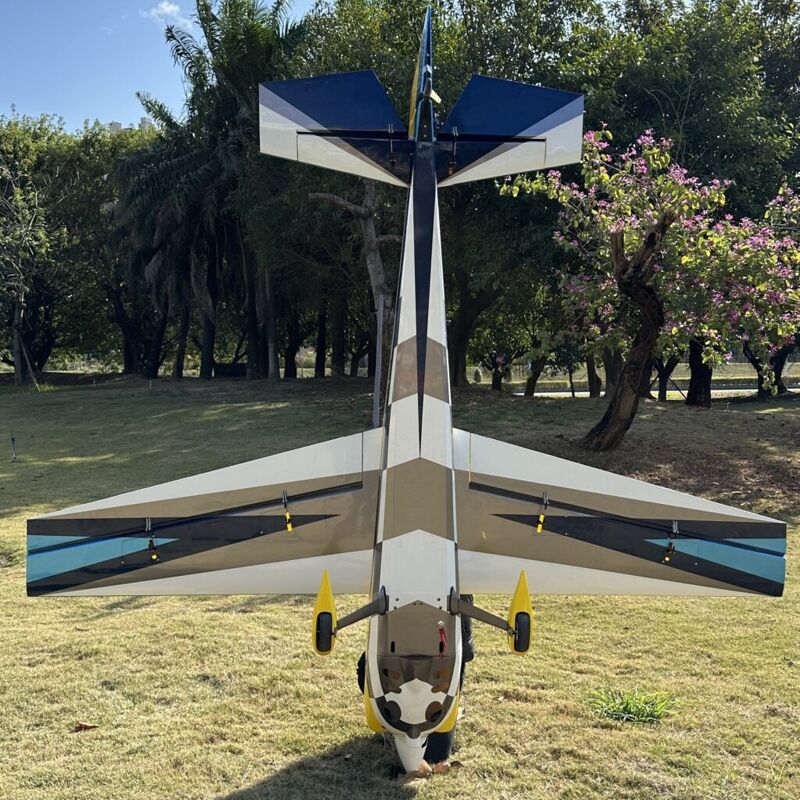

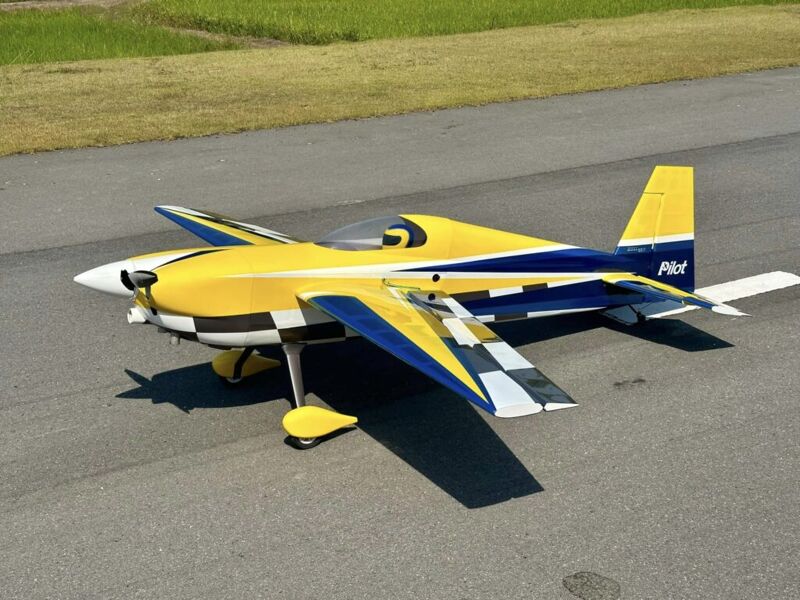

The Pilot-RC EDGE 540 V3 , as well as looking great and offering color schemes designed by legendary Italian designer Mirco Pecorari at Aircraft Studio Design in 01 color scheme and Ryu Sintuphrom signature 02 color scheme both are great design color look great as usual
Pilot-RC Edge 540 V3 120cc Designed by the design team of Pilot-RC with high experience with rc airframe , the Edge 540 V3 120cc has the modern aesthetics of a full-size V3 EDGE. outstanding performance capabilities. The design is a full base on the Edge 540 V3 which has a back of fueslage unique design and one of the best shape EDGE 540 ever, not only modern looking but also has a great aerodynamic in the sky and, ensuring an authentic, the Edge 540 V3 120cc is a true and high performer. and is outstanding in a variety of flying styles Edge It’s a friendly 3D aircraft that is specially easy to get low and slow, but actually No matter where you are in the 3D style, high-energy XA flight or precision flying, Edge 540 V3 provides an impressive characteristic every expectation to pilot.
SPECIFICATIONS:
Model:
EDGE 540 V3- 103″
Wingspan:
104″ (2.643mm)
Length:
104″ (2.648mm) with 5″spinner
Wing area:
1,836 “² (11,838 cm²)
Weight:
27.5lbs (12.5kg) dry weight
FEATURES:
NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
NEW! Patented quick assembly system for wings, stabilizer and SFG
NEW! Patented quick assembly system for canopy.
Genuine German Oracover (Ultracote) covering
Highly prefabricated, experienced builders can have air ready in under a day
Pre-installed hinges (glued and pinned)
Internally mounted cowling – so no visible external screws exposed (two exposed screws underneath for easy mounting)
Removable wings and stabs
Laser engraved motor mounting position
Easy canister installation due to open construction
Pull push system for Rudder servo
INCLUDED HARDWARE:
Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
Pre-installed hinges and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Wheels, axels and wheel pants
Pre-prepared pull-pull wires and pushrods with ball links
Matching carbon spinner,5″
REQUIRED HARDWARE:
Motor: 80-120cc or equivalent electric
Servos: 7-8 high torque (minimum 20kg) plus throttle // Uses x2 per aileron, x1 per elevator and x1 or x2 on rudder
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.
CENTER OF GRAVITY:
212mm - Measured back from leading edge of the wing at the fuselage.
You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
General Info
Brand
Pilot-RC
Item Nr
PILEDG103C02
Airplane - Specs
Material
Wood
Wingspan (mm)
2643,00
Model Length (mm)
2648,00
Take-off Weight (g)
12500,00
Airplane - Functions
Controls
Elevator
Rudder
Motor
Ailerons
Required Radio (Not included)
Min. 8 Channel
Airplane - Power System
Power System
Not Included (See Needed to complete)
Propeller / EDF
Not Included (See Needed to complete)
Speed Controller - ESC
Not Included (See Needed to complete)
Required Battery (Not included)
Li-Po 12S - 5000mAh - Min. 25C
Airplane - Electronics
Receiver
Not Included
Qty of Servos
7x Servos | 1 optional for GAS motor (Not Included | See Needed to complete)
