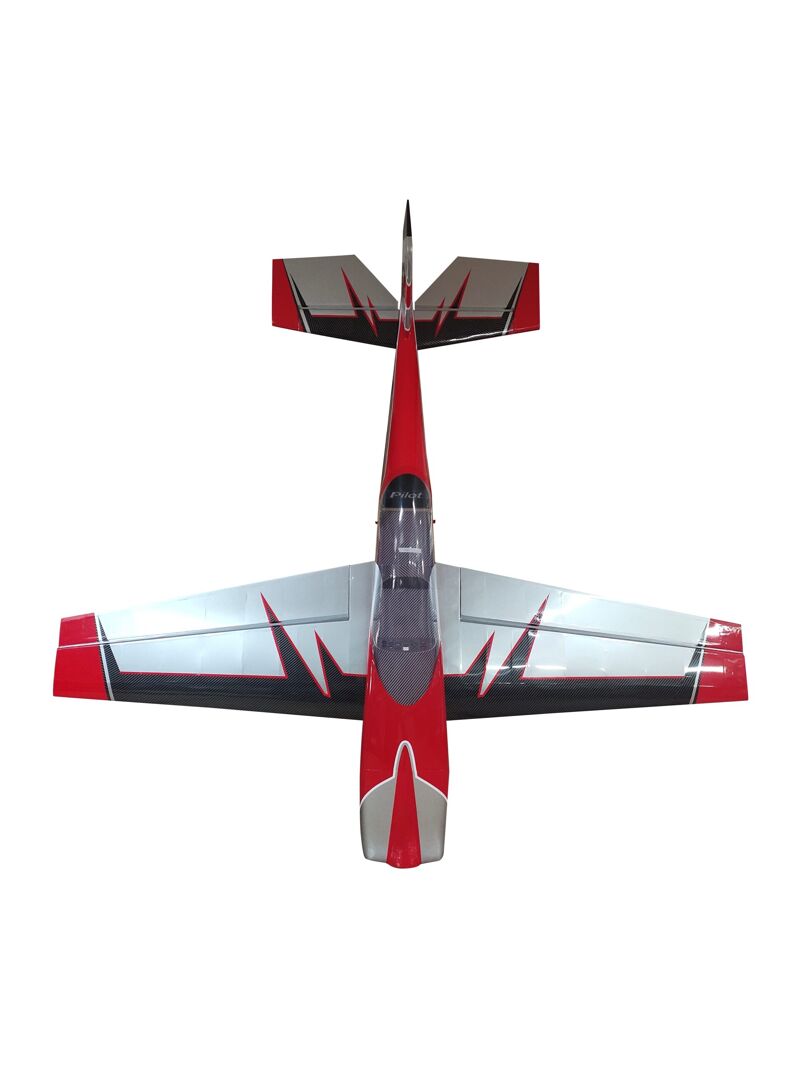

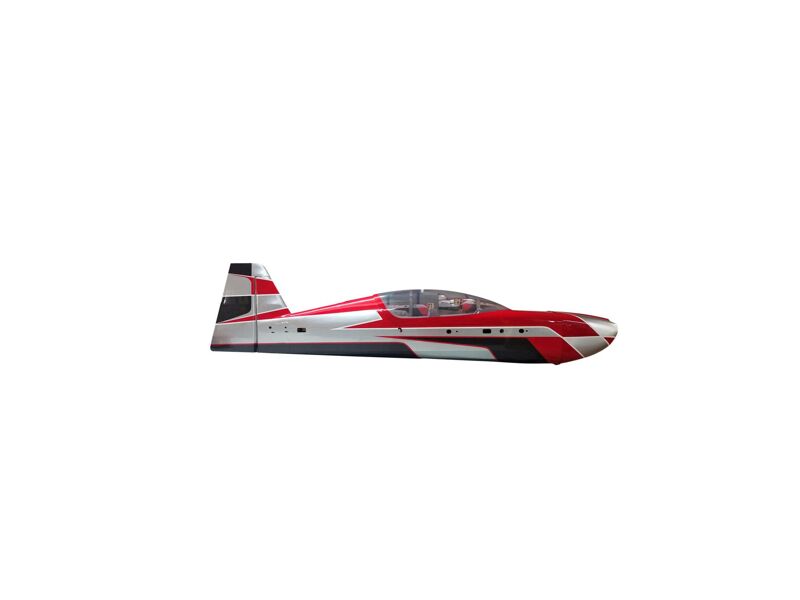

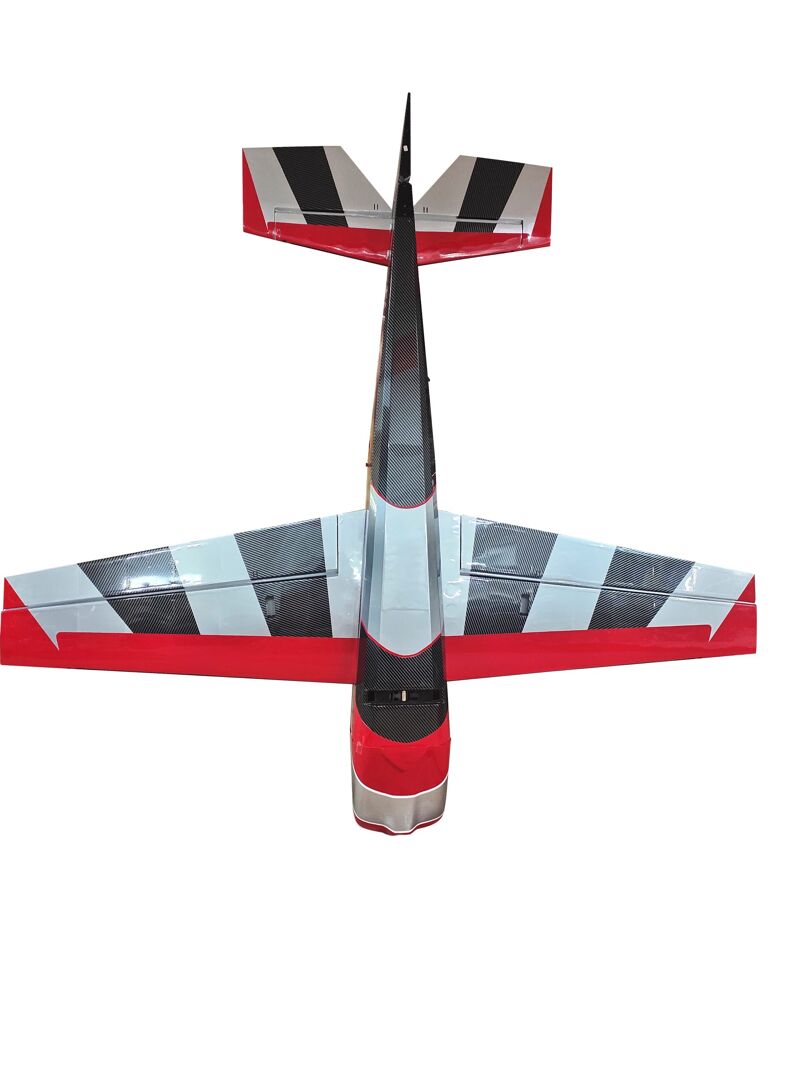

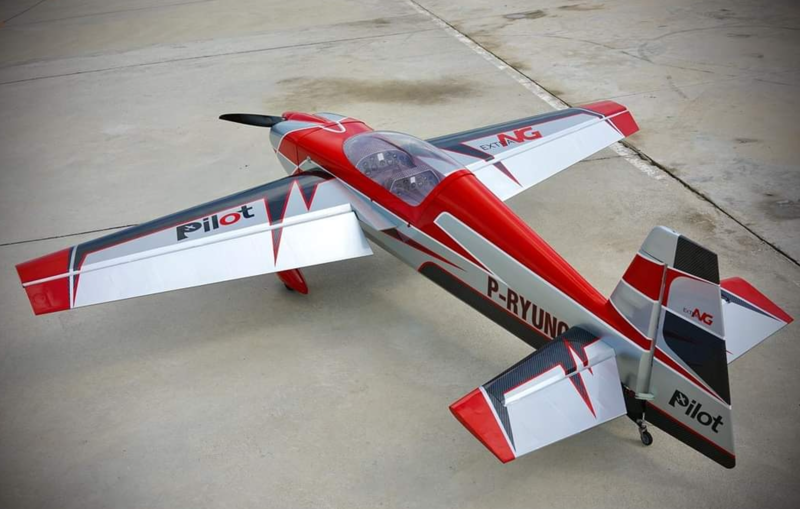

Pilot RC - Extra NG 115", Red/Grey/Black ARF Kit (Scheme 04)
Pilot-RC
PILEXTNG115C04
Trade prices excl. Mwst.
1/€ 1.569,42
Nicht auf Lager
€ 1.899,00€ 1.569,42 excl. Mwst.
A brand new design, built from a classic. In 2019 Extra Acrobatic Aircraft unveiled their latest masterpiece, and now in 2020 Pilot-RC is unveiling ours.
The Extra NG is the latest iteration of the Extra family, each version becoming more precise and more agile than ever before, and this feeds down all the way through our models.
This new design, combined with all of Pilot-RC’s latest build innovations and methods provide a high quality kit that can be built within minutes upon arrival at the flying field and relied upon for strength, agility and all round fun.
this Pilot-RC Extra NG 115″ is a completely unlimited high performance airframe capable of 150-170cc Class. Ryu Sintuphrom Team pilot say this plane can be perform like 120cc
this NG has a good combination of floaty in low and slow fly but still agile precise in high speed flight XA as you want fast rolling rate as 120cc plane
SPECIFICATIONS:
Model:
Extra NG
Wingspan:
115″ (2.920mm)
Length:
107.5″ (2.730mm)
Wing area:
2,182″² (14,082cm²)
Weight:
38.2lbs (17.4kg)
FEATURES:
NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
NEW! Patented quick assembly system for wings and stabilizer
NEW! Patented quick assembly system for canopy.
Film covering applied over a Genuine German Oracover (Ultracote) base
Highly prefabricated, experienced builders can have air ready in under a day
Pre-installed hinges (glued and sealed)
Internally mounted cowling – so no visible external screws exposed (two exposed screws underneath for easy mounting)
Removable wings and stabs
Laser engraved motor mounting position
Easy canister/tuned pipe installation due to open construction
Pull push system for Rudder servo
INCLUDED HARDWARE:
Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
“Spare” lower section cowl from transparent plastic – used to mark out correct location to cut the cowl for perfect fitting every time
Pre-installed hinges and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Wheels, axels and wheel pants
Pre-prepared pushrods with ball links
Matching carbon spinner, 5″
REQUIRED HARDWARE:
Motor: 150-180cc or equivalent electric
Servos: 8 high torque plus throttle // Uses x2 per aileron, x1 per elevator half and x1 or x2 on rudder using push-pull
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.
CENTER OF GRAVITY:
215mmMeasured back from leading edge of the wing at the fuselage.This coincides exactly with the center of the wing tube.
You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
General Info
Brand
Pilot-RC
Item Nr
PILEXTNG115C04
Airplane - Specs
Material
Wood
Wingspan (mm)
2920
Model Length (mm)
2730
Take-off Weight (g)
17400
Airplane - Functions
Controls
Ailerons
Elevator
Rudder
Motor
Required Radio (Not included)
Min. 8 Channel
Airplane - Power System
Power System
Not Included (See Needed to complete)
Propeller / EDF
Not Included (See Needed to complete)
Speed Controller - ESC
Not Included (See Needed to complete)
Airplane - Electronics
Receiver
Not Included
Qty of Servos
8x Servos | 1 optional for GAS motor (Not Included | See Needed to complete)
