Pilot RC - Extra NG 60", Red/Grey/Black ARF Kit (Scheme 04)
Pilot-RC
PILEXTNG60C04
Trade prices excl. Mwst.
1/€ 329,75
Nicht auf Lager
€ 399,00€ 329,75 excl. Mwst.

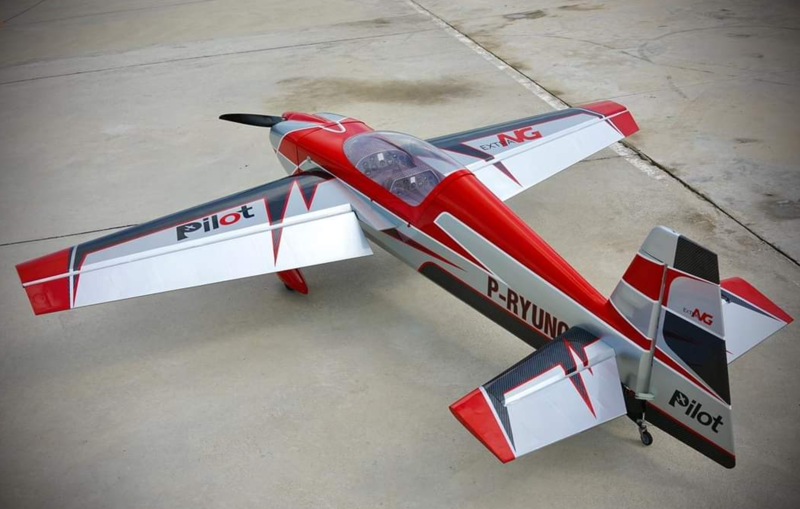

A brand new design, built from a classic. In 2019 Extra Acrobatic Aircraft unveiled their latest masterpiece, and now in 2020 Pilot-RC is unveiling ours.
The Extra NG is the latest iteration of the Extra family, each version becoming more precise and more agile than ever before, and this feeds down all the way through our models.
This new design, combined with all of Pilot-RC’s latest build innovations and methods provide a high quality kit that can be built within minutes upon arrival at the flying field and relied upon for strength, agility and all round fun.
SPECIFICATIONS:
Model:
Extra NG
Wingspan:
60″ (1.524mm)
Length:
58.8″ (1.494mm)
Wing area:
740 “² (4,772 cm²)
Weight:
6.56lbs (2.98kg)
FEATURES:
NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
NEW! Patented quick assembly system for wings.
NEW! Patented quick assembly system for canopy. Especially useful for electric version, fast battery change!
NEW! Patented quick assembly system for SFG.
Strong yet light weight design, especially developed for precision aerobatic and extreme 3D flying
Highly prefabricated, experienced builders can have air ready in under a day
Removable wings
Laser engraved motor mounting position
Designed for electric motor
Included servo extension wires and wing bags
Push pull rudder link for more precise and direct response
INCLUDED HARDWARE:
Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
Included wing bags
Included extension wires
Pre-prepared hinges ready to be installed and pre-mounted canopy
Wheels, axels and wheel pants
Included spinner, 2.5″
REQUIRED HARDWARE:
Powerplant: Dualsky GA1500 or Dualsky XM5050EA-14 or similar electric motor
Servos: 4 high torque medium size // Uses x1 per aileron, x1 for elevator and x1 for rudder
*Please note that the servo slots are designed to accept a medium size servo (35mm x 15mm)
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.
CENTER OF GRAVITY:
142mm - Measured back from leading edge of the wing at the fuselage.
You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
General Info
Brand
Pilot-RC
Item Nr
PILEXTNG60C04
Airplane - Specs
Material
Wood
Wingspan (mm)
1524
Model Length (mm)
1494
Take-off Weight (g)
2980
Airplane - Functions
Controls
Elevator
Ailerons
Rudder
Motor
Required Radio (Not included)
Min. 8 Channel
Airplane - Power System
Power System
Not Included (See Needed to complete)
Propeller / EDF
Not Included (See Needed to complete)
Speed Controller - ESC
Not Included (See Needed to complete)
Required Battery (Not included)
Li-Po 6S - 4000mAh - Min. 25C
Airplane - Electronics
Receiver
Not Included
Qty of Servos
4x Servos | (Not Included | See Needed to complete)
