Pilot RC - Laser 103", Red/Blue/White ARF Kit (Scheme 09)
Pilot-RC
PILLAS103C09
Trade prices excl. Mwst.
1/€ 1.073,55
Nicht auf Lager
€ 1.299,00€ 1.073,55 excl. Mwst.
Time for a change! Pilot-RC has broken all the molds with this one.
The Laser has been fully designed from the ground up for out and out performance, keeping in line with current demand for faster, more aggressive and more agile models, while still keeping the well know great flying characteristics Pilot-RC models are known for.
You really need to see the videos of this model in action to understand its capability. In this case, its not a question of if the plane is quick enough, its whether you can keep up!

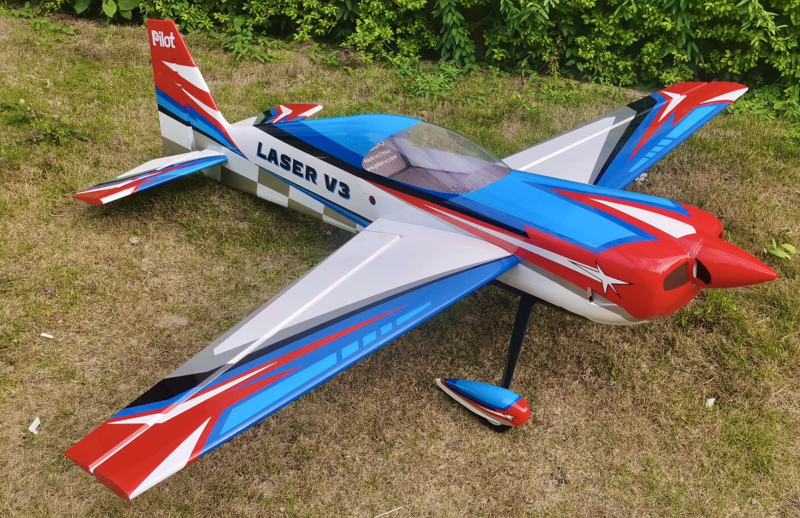

in 2023 we proud to present NEW LASER V3” 103”
Pilot-RC are non-stop development get feedback and listen from everyone both high level pilot and normal level pilot, for balance charactoristic of performance on this airframe, we upgrade everything even better aerodynamic shape of plane and new canopy look more modern shape as I say it is V3 and new wing design for roll more smooth more precise and still agile. also upgrade some structure for more lighter and improve quick release wing,canopy,and stabilizer for more convenient and reliable
SPECIFICATIONS:
Model:
Laser – 35%
Wingspan:
101.8″ (2.587mm)
Length:
99″ (2.514mm) with 5″ spinner
Wing area:
1,771 “² (11,430 cm²)
Weight:
26.35lbs (11.75kg)
FEATURES:
NEW! Full Carbon reinforced fuselage and wing using carbon laminated wood.
Genuine German Oracover (Ultracote) covering
Highly prefabricated, experienced builders can have air ready in under a day
Pre-installed hinges (glued and pinned)
Internally mounted cowling – so no external screws exposed
Includes cooling baffles
Easy canister installation due to open construction
Removable rudder (as well as removable wings and stabs)
Laser engraved motor mounting position
Push-Pull system for Rudder servos
INCLUDED HARDWARE:
Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
Pre-installed hinges and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Wheels, axels and wheel pants
Pre-prepared pull-pull wires and pushrods with ball links
Matching carbon spinner, 5″
REQUIRED HARDWARE:
Motor: 100-130cc or equivalent electric
Servos: 7-8 high torque (minimum 20kg) plus throttle // Uses x2 per aileron, x1 per elevator and x1 or x2 on rudder
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.
CENTER OF GRAVITY:
194mm - Measured back from leading edge of the wing at the fuselage.
You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
General Info
Brand
Pilot-RC
Item Nr
PILLAS103C09
Airplane - Specs
Material
Wood
Wingspan (mm)
2587
Model Length (mm)
2514
Take-off Weight (g)
11750
Airplane - Functions
Controls
Motor
Elevator
Rudder
Ailerons
Required Radio (Not included)
Min. 8 Channel
Airplane - Power System
Power System
Not Included (See Needed to complete)
Propeller / EDF
Not Included (See Needed to complete)
Speed Controller - ESC
Not Included (See Needed to complete)
Required Battery (Not included)
Li-Po 12S - 5000mAh - Min. 25C
Airplane - Electronics
Receiver
Not Included
Qty of Servos
7x Servos | 1 optional for GAS motor (Not Included | See Needed to complete)
