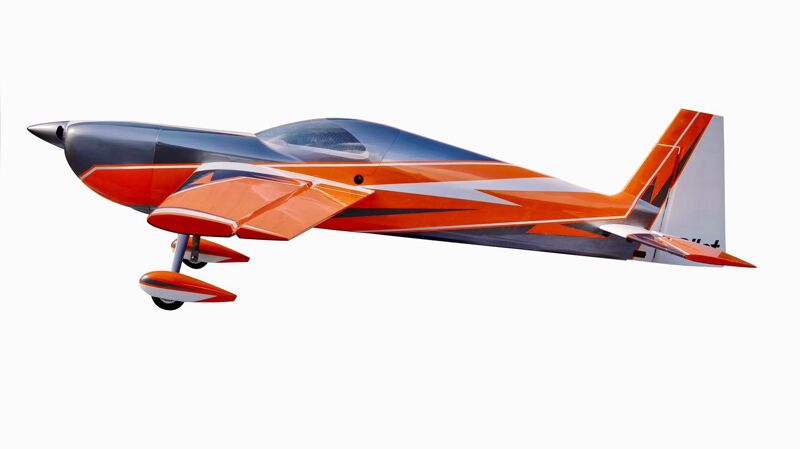

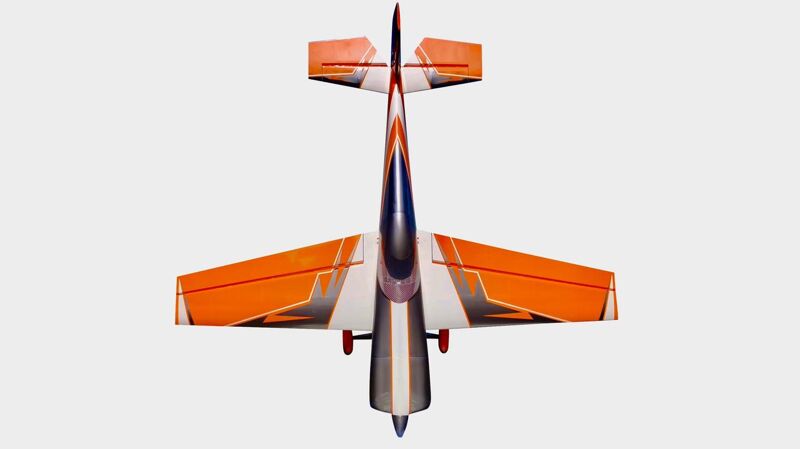

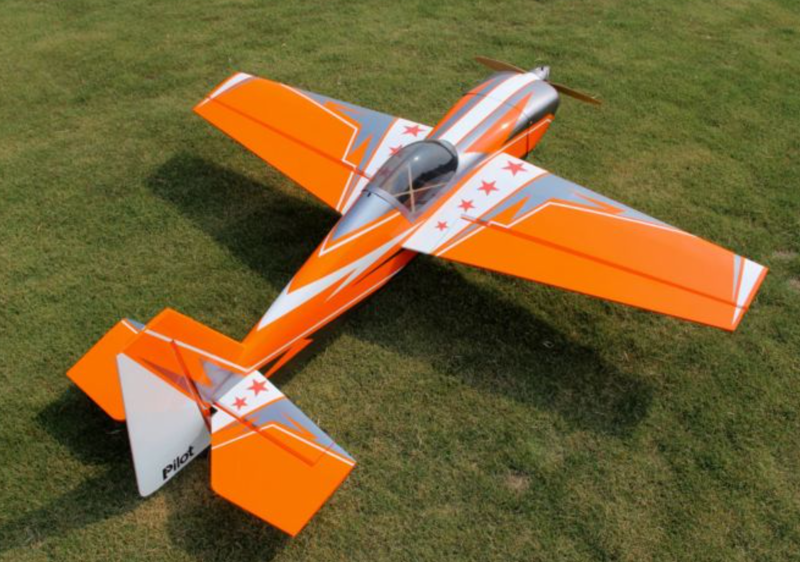

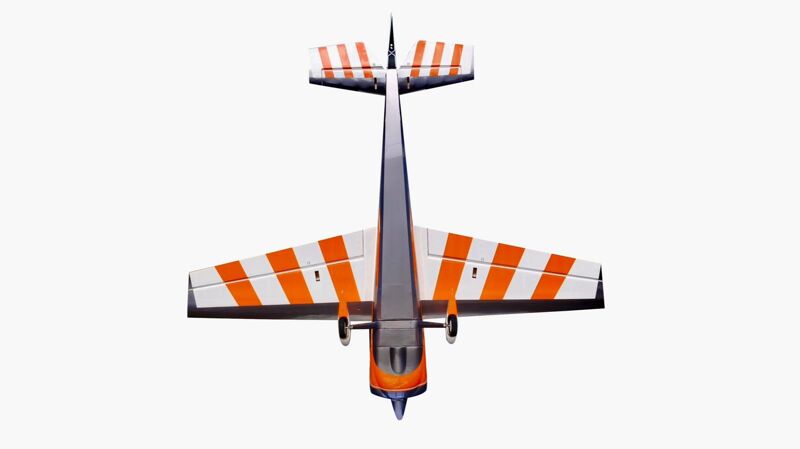

Pilot RC - Laser 67", Orange/Grey/White ARF Kit (Scheme 08)
Pilot-RC
PILLAS67C08
Nur 1 auf Lager
€ 459,00€ 379,34 excl. Mwst.
That’s right! Another new size of our popular Laser, this time for 20cc engines or electric power!
Fully designed from the ground up for out and out performance, keeping in line with current demand for faster, more aggressive and more agile models, while still keeping the well know great flying characteristics Pilot-RC models are known for.
You really need to see the videos of this model in action to understand its capability. In this case, its not a question of if the plane is quick enough, its whether you can keep up!
SPECIFICATIONS:
Model:
Laser
Wingspan:
67″ (1.702mm)
Length:
63.8″ (1.620mm)
Wing area:
907 “² (5,850 cm²)
Weight:
7.94lbs (3.61kg)
FEATURES:
NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
NEW! Patented quick assembly system for wings.
NEW! Patented quick assembly system for canopy. Especially useful for electric version, fast battery change!
NEW! Patented quick assembly system for SFG.
Strong yet light weight design, specially developed for precision acrobatic and extreme 3D flying
Highly prefabricated, experienced builders can have air ready in under a day
Removable wings
Laser engraved motor mounting position
Designed for both 20cc engine or electric motor
Internally mounted cowling – so no external screws exposed
Included servo extension wires and wing bags
INCLUDED HARDWARE:
Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tube as well as fiberglass control horns and wheel pants)
Included wing bags
Hinges ready to be installed and pre-mounted canopy
Fuel tank, fuel dot and fuel tubing pre-prepared
Wheels, axels and wheel pants
Pre-prepared pull-pull wires and pushrods with ball links
Included spinner, 2.5″
REQUIRED HARDWARE:
Motor: 20cc or equivalent electric
*Please note that the setup of this plane accepts both electric or gas engine, however in order to use gas engine, firewall and engine box must be reinforced.
Servos: 4 high torque plus throttle // Uses x1 per aileron, x1 for the elevator and x1 on rudder
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.
CENTER OF GRAVITY:
142mm - Measured back from leading edge of the wing at the fuselage.
You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
General Info
Brand
Pilot-RC
Item Nr
PILLAS67C08
Airplane - Specs
Material
Wood
Wingspan (mm)
1702,00
Model Length (mm)
1620,00
Take-off Weight (g)
3610,00
Airplane - Functions
Controls
Rudder
Motor
Elevator
Ailerons
Required Radio (Not included)
Min. 8 Channel
Airplane - Power System
Power System
Not Included (See Needed to complete)
Propeller / EDF
Not Included (See Needed to complete)
Speed Controller - ESC
Not Included (See Needed to complete)
Required Battery (Not included)
Li-Po 6S - 5000mAh - Min. 25C
Airplane - Electronics
Receiver
Not Included
Qty of Servos
4x Servos | (Not Included | See Needed to complete)
