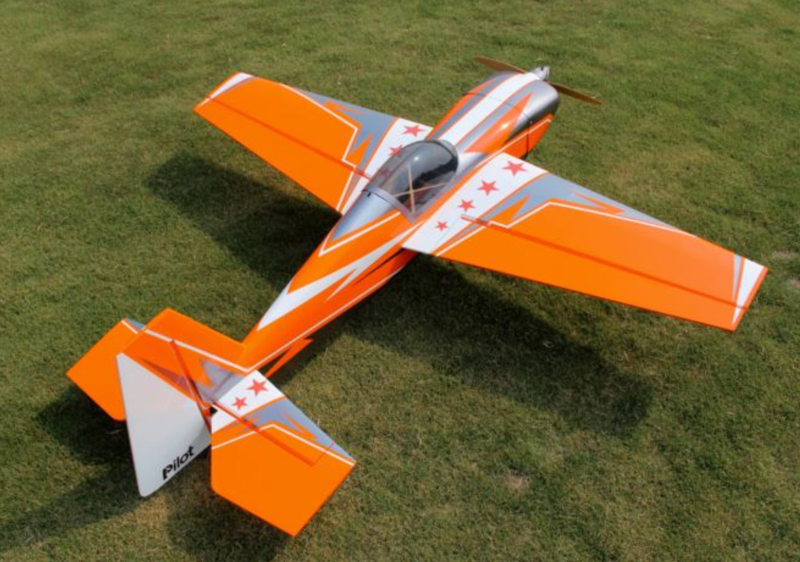

Pilot RC - Laser 73", Orange/Grey/White ARF Kit (Scheme 08)
Pilot-RC
PILLAS73C08
Nur 1 auf Lager
€ 649,00€ 536,36 excl. Mwst.
You wanted it, we delivered! Another new size Laser, this time for 30-40cc engines or electric power!
Fully designed from the ground up for out and out performance, keeping in line with current demand for faster, more aggressive and more agile models, while still keeping the well know great flying characteristics Pilot-RC models are known for.
You really need to see the videos of this model in action to understand its capability. In this case, its not a question of if the plane is quick enough, its whether you can keep up!
SPECIFICATIONS:
Model:
Laser
Wingspan:
73″ (1.850mm)
Length:
69.3″ (1.760mm)
Wing area:
1,084 “² (6,966 cm²)
Weight:
11.46lbs (5.2kg)
FEATURES:
NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
NEW! Patented quick assembly system for wings.
NEW! Patented quick assembly system for canopy. Especially useful for electric version, fast battery change!
Highly prefabricated, experienced builders can have air ready in under a day
Pre-installed hinges (glued and pinned)
Easy canister installation due to open construction
Removable wings
Laser engraved motor mounting position
Pull-Pull system for Rudder servo
Cowl fits both gasoline and electric motors
Can use single elevator servo, or choose to split the elevator half and use two separate servos.
single cylinder and twin cylinder engines!
INCLUDED HARDWARE:
Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fiberglass control horns and wheel pants)
Pre-installed hinges and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Wheels, axels and wheel pants
Pre-prepared pull-pull wires and pushrods with ball links
Matching carbon spinner, 3″
REQUIRED HARDWARE:
Motor: 30-40cc or equivalent electric
Servos: 4 or 5 high torque (minimum 20kg) plus throttle // Uses x1 per aileron, x1 or x2 for the elevator (choose if you use joint or split elevator) and x1 on rudder
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.
CENTER OF GRAVITY:
137mm - Measured back from leading edge of the wing at the fuselage.
You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
General Info
Brand
Pilot-RC
Item Nr
PILLAS73C08
Airplane - Specs
Material
Wood
Wingspan (mm)
1850,00
Model Length (mm)
1760,00
Take-off Weight (g)
5200,00
Airplane - Functions
Controls
Elevator
Ailerons
Motor
Rudder
Required Radio (Not included)
Min. 8 Channel
Airplane - Power System
Power System
Not Included (See Needed to complete)
Propeller / EDF
Not Included (See Needed to complete)
Speed Controller - ESC
Not Included (See Needed to complete)
Required Battery (Not included)
Li-Po 12S - 4000mAh - Min. 25C
Airplane - Electronics
Receiver
Not Included
Qty of Servos
5x Servos | 1 optional for GAS motor (Not Included | See Needed to complete)
