Pilot RC - Matrix Jet 87" (2.20M) ARF Kit With Retracts (Version 2)
Pilot-RC
PILMAT87V2
Artikel auf Bestellung beim Lieferanten
Dieser Artikel ist nicht vorrätig; er wird für Sie bei unserem Lieferanten bestellt. Die Lieferzeit hängt von der Verfügbarkeit beim Lieferanten ab.
€ 3.199,00€ 2.643,80 excl. Mwst.
After many successful with Predator Jet we decided to develop NEW sportjet for new era. The Pilot-RC Matrix is an innovative approach to a new sport jet/ 3Djet. Great capabilities had to be combined between sport jet and unbeatable 3D performance. everything aerodynamic we tested and learned from Predator and develop together with one of the best pilot in the world for Matrix performance so we can say this is best ever sport jet with ultimate flying characteristics for precise aerobatics and 3D aerobatics at the same time. The Matrix all feature and shape of airframe this from one of the best designer Mirco Pecorari from Aircraftstudiodesign, a little like the charismatic hypercars style.
Please note : This kit is version 2 and includes a fuel tank and air trap, normal tail pipe(not Vector tail pipe), Light version electric retract gear with brake, and hardware.
SPECIFICATIONS:
Model:
Matrix Sport Jet
Wingspan:
78.7″ (2,000mm)
Length:
87.6″ (2,225mm)
Weight:
21.9lbs (9.94kg) with 14kg turbine
FEATURES:
Extremely lightweight full composite construction especially designed for outstanding sport flight with 3D performance
Painted outside the mold so no seam lines
Ultra light weight landing gear, the 2.2m predator sport jet V2 landing gear can use to the Matrix too.
Specially designed easy access to turbine for speedy installation
Field setup can be done in seconds, thanks to the quick releases on the wings without the need for any tools.
the single elevator clamp from the top, only a few turns to tight/loose the bolt then you can install/take out the stabilizer.
Removable wing and elevator for easy transport
The equipment installation board make the electronic items with very clear installation. Most of the wire can be hidened.
pre-install tube for the stab/rudder extension wire, easy to install.
Option with vector tail pipe for 3D flight.
INCLUDED HARDWARE:
Complete air frame (including carbon wing-tubes and preinstalled and painted fiberglass control horns)
Servo extension leads
normal tail pipe (optional Vector thrust pipe)
3.800ml fuel tank (optional upgrade to fuel bag)
250ml UAT tank
Pre-prepared pushrods with ball links
Servo connector brackets
REQUIRED HARDWARE:
Turbine 100-140N for normal sport flying
Turbine 160-180N for 3D vector flight – Avoid high speed high G flying
Servos: Total x10 (x5 standard size + x5 medium size)
x3 standard size high torque
x2 for flaps (minimum 40kg)
x1 for rudder (minimum 40kg)
x7 medium size servo (size: 35x15x30mm)
x2 for ailerons (minimum 16kg)
x2 for elevators (minimum 16kg)
x1 for vector elevator (minimum 16kg), this is option
x1 for vector rudder (minimum 16kg), this is option
x1 for steering (minimum 10kg)
Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.

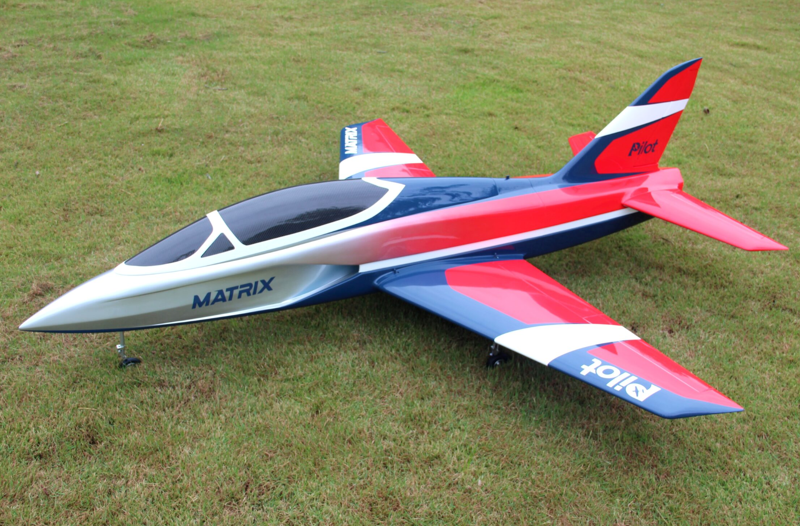

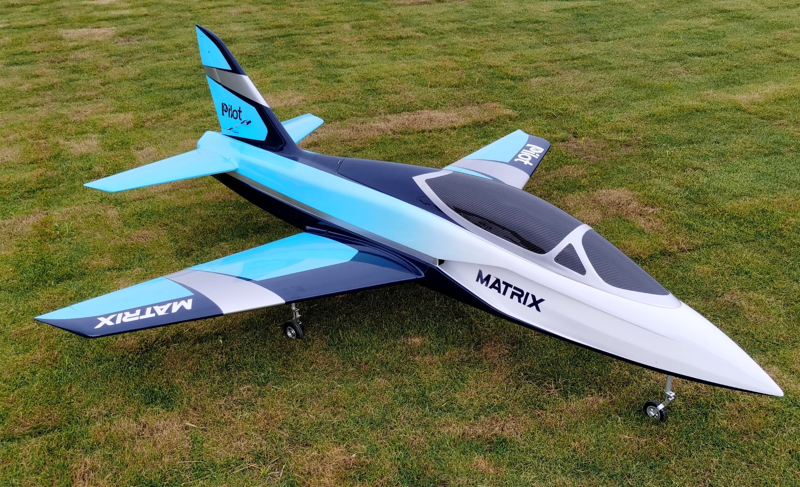

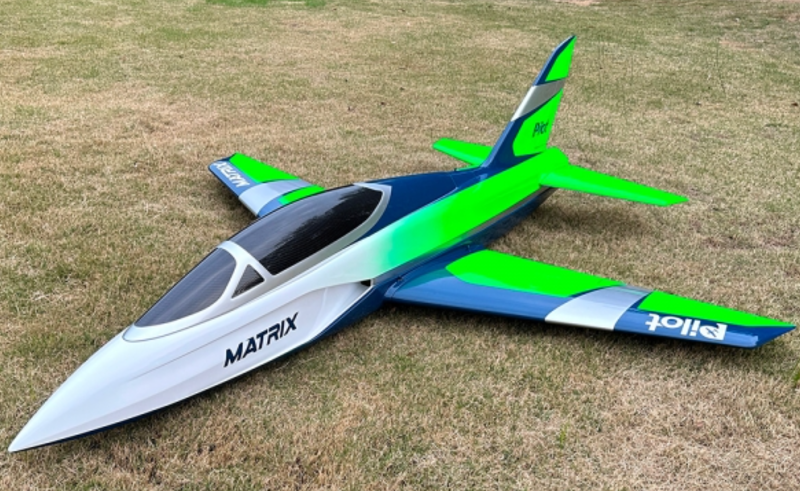

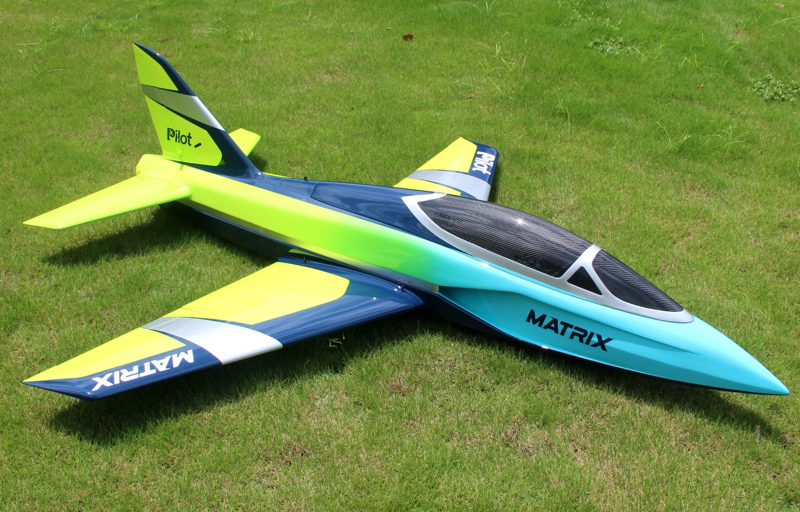

Available and orderable in 4 versions and all the schemes shown in the pictures.
Without gear combo (Version 1) :
Pilot-RC Matrix kit
Requires servos and turbine of choice.
Landing gear combo (Version 2) :
Pilot-RC Matrix kit
Pilot-RC electric landing gear & brakes set
Requires servos and turbine of choice.
Turbine Ready Combo (Version 3) :
Pilot-RC Matrix kit
Pilot-RC electric landing gear & brakes set installed
Pilot-RC servos and extension wires, all installed
Requires your own turbine of choice.
Turbine Ready – PRO COMBO (Version 4) :
Pilot-RC Matrix kit
Pilot-RC electric landing gear & brakes set installed
Pilot-RC servos and extension wires, all installed
Requires your own turbine of choice.
Wing bag and fuselage bag
General Info
Brand
Pilot-RC
Item Nr
PILMAT87V2
Airplane - Specs
Material
Full composite
Wingspan (mm)
2000
Model Length (mm)
2225
Take-off Weight (g)
9940
Airplane - Functions
Controls
Retractable Landing Gear
Elevator
Flaps
Motor
Ailerons
Rudder
Required Radio (Not included)
Min. 8 Channel
Airplane - Power System
Power System
Not Included (See Needed to complete)
Airplane - Electronics
Receiver
Not Included
Qty of Servos
10x Servos | (Not Included | See Needed to complete)
