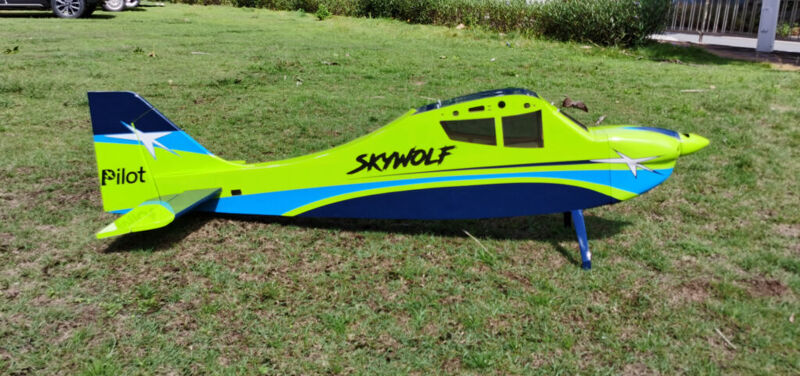

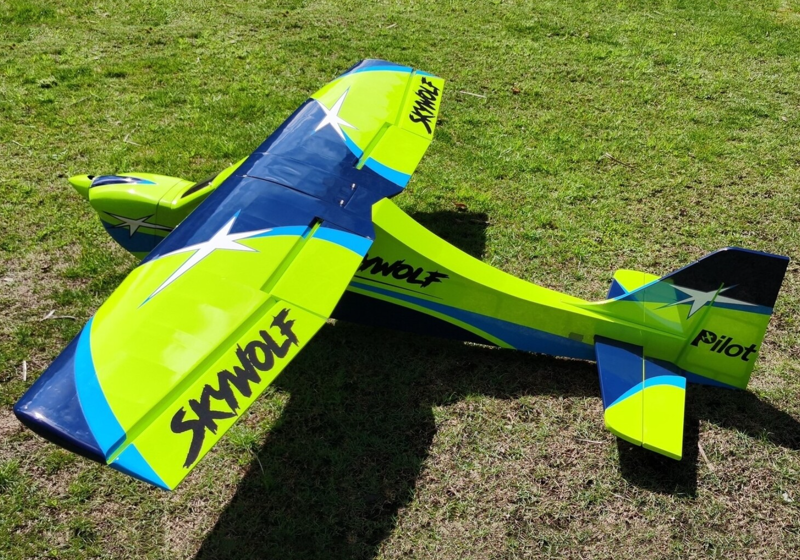

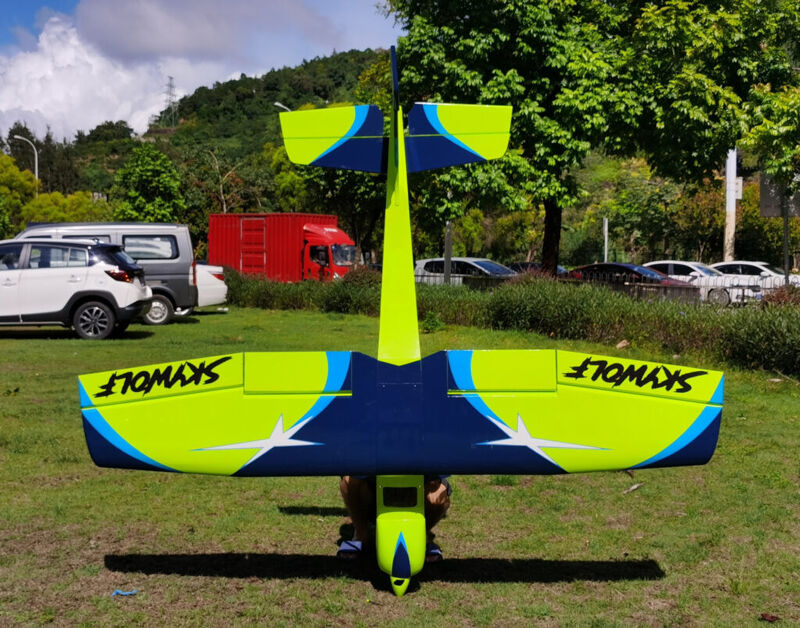

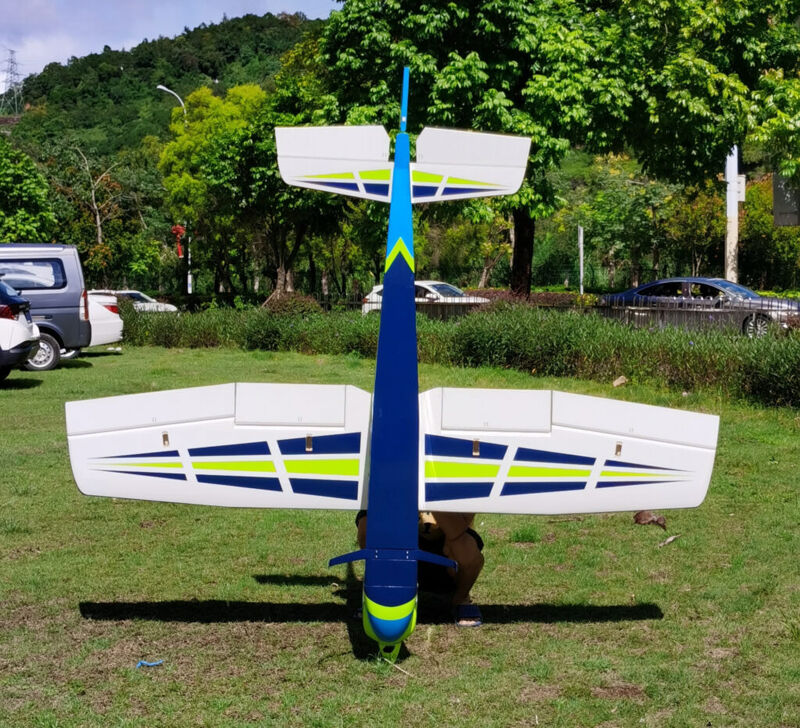

A true aeromodel, designed for pure fun and simplicity. From slow flight to fun-fly and even some 3D, this is a surprisingly capable acrobatic model. Designed by Jan Spatny from Czech Republic.
SPECIFICATIONS:
Model:
Sky-Wolf
Wingspan:
67″ (1.711mm)
Length:
56″ (1.453mm)
Wing area:
808″² (5,214 cm²)
Weight:
8.1 lbs (3.4kg)
FEATURES:
Strong yet light weight design, good for aerobatic flying and can even hover!
Highly prefabricated, experienced builders can have air ready in under a day
Pre-installed hinges on ailerons, flaps and rudder (glued and sealed)
Internally mounted cowling – so no external screws exposed
Removable wings with quick release system
Laser engraved motor mounting position
Open construction allows for easy canister installation for 15-20cc size engine
Quick release front windshield / top-hatch, allowing easy access to replace batteries in electric setups
Big 5″ wheels
INCLUDED HARDWARE:
Complete air frame with all basic accessories (such as carbon fibre undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
Pre-installed hinges and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Wheels and wheel axels
Pre-prepared pushrods with ball links
Matching carbon spinner
REQUIRED HARDWARE:
Motor: 15-20cc or equivalent electric
Servos: 7 high torque plus throttle // Uses x1 per aileron, x1 per flap, x1 per elevator and x1 on rudder
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.
CENTER OF GRAVITY:
60mm Measured back from leading edge of the wing at the fuselage.
You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
General Info
Brand
Pilot-RC
Item Nr
PILSKYV267C04
Airplane - Specs
Material
Wood
Wingspan (mm)
1711,00
Model Length (mm)
1453,00
Take-off Weight (g)
3400,00
Airplane - Functions
Controls
Rudder
Elevator
Ailerons
Flaps
Motor
Required Radio (Not included)
Min. 8 Channel
Airplane - Power System
Power System
Not Included (See Needed to complete)
Propeller / EDF
Not Included (See Needed to complete)
Speed Controller - ESC
Not Included (See Needed to complete)
Required Battery (Not included)
Li-Po 6S - 5000mAh - Min. 25C
Airplane - Electronics
Receiver
Not Included
Qty of Servos
7x Servos | 1 optional for GAS motor (Not Included | See Needed to complete)
