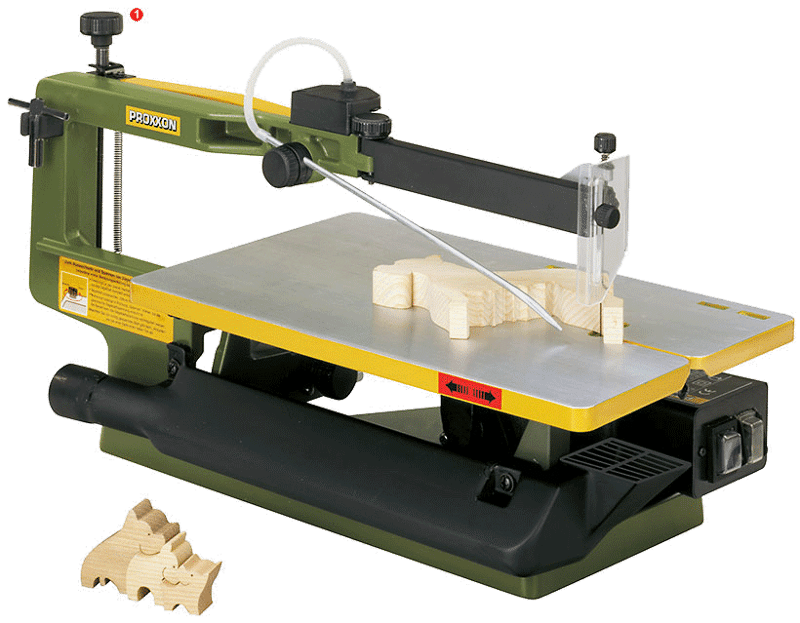

Proxxon 2-speed scroll saw DS 460
Sturdy construction: Vibration-reducing base housing of cast steel, neatly CNC-processed and powder-coated. For stability and working without vibrations. Extremely light magnesium saw arms reduce the weight of the mass moved by approx. 40% compared to die-cast aluminium. For smooth running and clean cuts. 460mm throat!
Magnesium saw arms precisely mounted on bearings: Extremely light and firm with a slender-shaped cutting area for an unobstructed view of the work piece. Chip blowing device with adjustable nozzle. Additional suction connection to connect a vacuum cleaner.
Large saw table made of die-cast aluminium (400 x 250mm). For easier saw blade replacement, it can be unlocked and pushed back (see description at top right). Regular scroll saw blades are fastened by saw blade holders with high clamping force: This ensures true alignment in the saw arm! The machine has also been prepared for saw blades with pin ends that are used without blade holders. Extremely important for these types of scroll saws: A handy adjusting knob enables sensitive clamping of the saw blades!
Table angle adjustment possible from 5° to 50°.
Cutting performance in wood 60mm, in non-ferrous metals (depending on type) 10 - 15mm. Also easily cuts Plexiglas, glass fibre reinforced plastic, foam, rubber, leather or cork. Includes 5 each coarse and fine saw blades.
FEATURES
- 220 - 240V.
- Powerful, brushless 2-speed motor (205W).
- Throat 460mm.
- Stroke alternatively 900 or 1,400rpm.
- Saw stroke 18mm. Table size 400 x 250mm.
- Maximum work piece passage 65mm (at 45° mitre 32mm).
- L 580mm, W 320mm, H 300mm.
- Weight 20kg.
