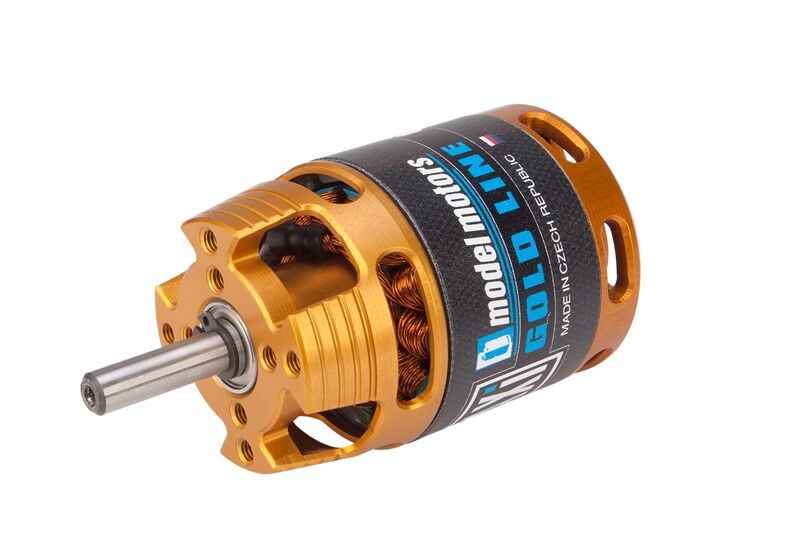

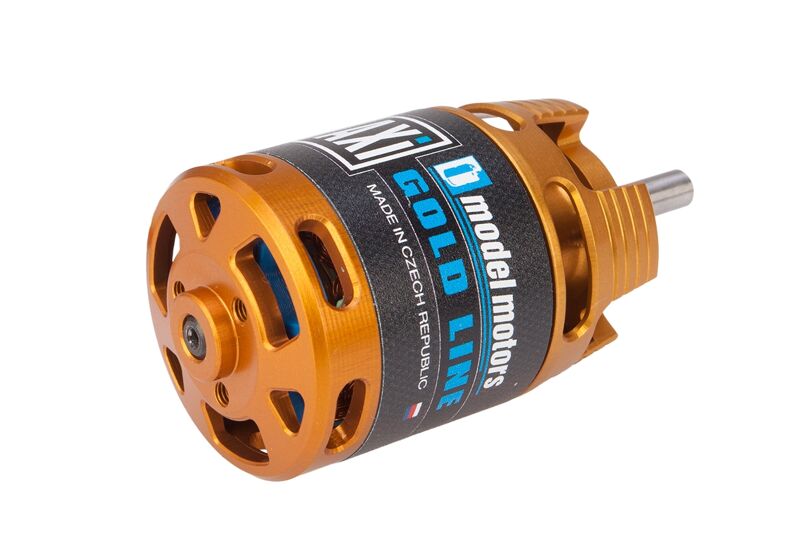

AXI 2814/10 V2 LONG Brushless

AXI 2814/10 V2 LONG Brushless

3EL10531V2L

Pas de stock

€ 93,99 € 77,68 TVA excl.

Powering LiXX cells	2 - 3S
RPM/V [ot./min/V]	1640
Turn count	10
Internal resistance [mOhm]	37
Open-circuit current [A]	2.3
Max. efficiency [%]	83
Max. efficiency current (η>75%) [A]	20 - 30
Max. peak current (60 s) [A]	46
Max. power [W]	460
Diameter [mm]	35
Length [mm]	45
Shaft diameter [mm]	5
Weight [g]	115
Poles count	14
Timing [°]	15 - 25
ESC [A]	50 - 70
Weight of glider (up-to) [g]	1500
Weight of trainer (up-to) [g]	1500
Weight of acrobat (up-to) [g]	1200
Weight of 3D (up-to) [g]	900

General Info

Barcode: 8595247302359

Motor - Specs

Motor - Input Voltage Range (V): 2S - 3S Li-Po

Motor - KV (Rpm/V): 1640

Motor - Poles: 14-Pole

Motor - Timing: 15-25

Motor - Turns (T): 10

Motor - Dimensions

Motor - Dia. ø (mm): 35

Motor - Length (mm): 45

Motor - Shaft Dia. ø (mm): 5.0 mm

Motor - Weight (g): 115
