AXI 2826/8 V2 LONG Brushless

AXI 2826/8 V2 LONG Brushless

AXI model motors

3EL105611V2L

Pas de stock

€ 113,99 € 94,21 TVA excl.

Powering LiXX cells	2 - 3
RPM/V [ot./min/V]	1130
Turn count	8
Internal resistance [mOhm]	30
Open-circuit current [A]	2.8
Max. efficiency [%]	85
Max. efficiency current (η>75%) [A]	35 - 37
Max. peak current (60 s) [A]	57
Max. power [W]	570

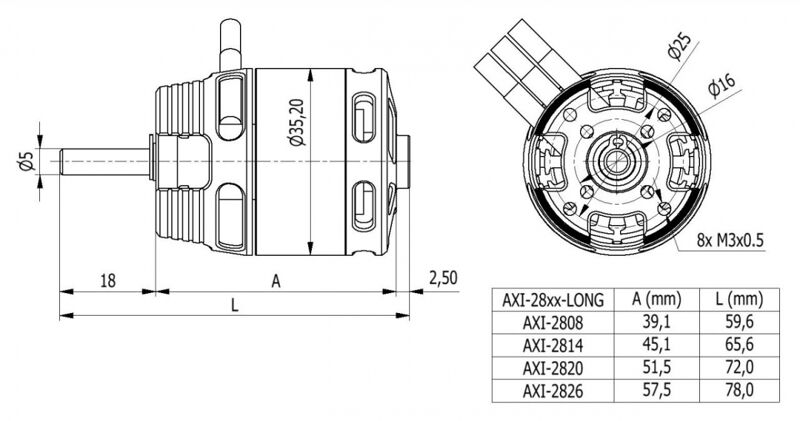

Diameter [mm]	35
Length [mm]	57.5
Shaft diameter [mm]	5
Weight [g]	187
Poles count	14
Timing [°]	15 - 25
ESC [A]	60 - 70
Weight of glider (up-to) [g]	2500
Weight of acrobat (up-to) (hotliner) [g]	2000

General Info

Brand: AXI model motors

Barcode: 8595247302441,00

Motor - Specs

Motor - Input Voltage Range (V): 2S - 3S Li-Po

Motor - KV (Rpm/V): 1130,00

Motor - Poles: 14-Pole

Motor - Timing: 15-25

Motor - Turns (T): 8,00

Motor - Dimensions

Motor - Dia. ø (mm): 35,00

Motor - Length (mm): 57,50

Motor - Shaft Dia. ø (mm): 5.0 mm

Motor - Weight (g): 187,00
