AXI 2814/16 Cyclone KV1035

AXI 2814/16 Cyclone KV1035

AXI model motors

3EL105701

Pas de stock

€ 123,59 € 102,14 TVA excl.

Powering LiXX cells	3
RPM/V [ot./min/V]	1035
Turn count	16
Internal resistance [mOhm]	85
Open-circuit current [A]	1
Max. efficiency [%]	84
Max. efficiency current (η>75%) [A]	12 - 20
Max. peak current (60 s) [A]	36
Max. power [W]	335

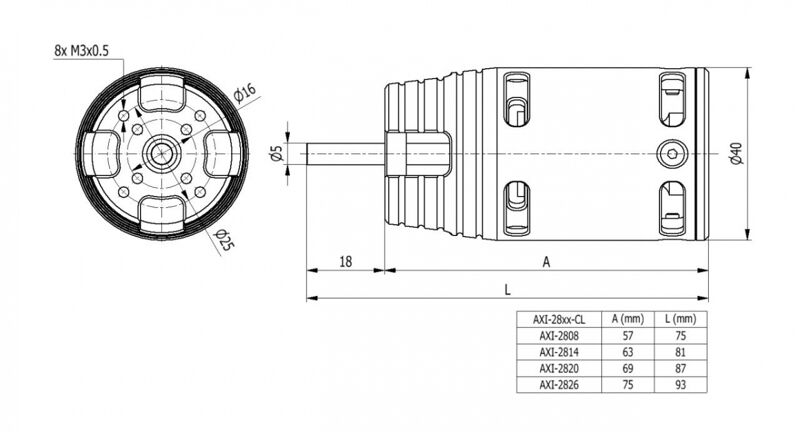

Diameter [mm]	40
Length [mm]	63
Shaft diameter [mm]	5
Weight [g]	164
Poles count	14
Timing [°]	15 - 25
ESC [A]	40 - 50
Weight of glider (up-to) [g]	1700

General Info

Brand: AXI model motors

Barcode: 8595247303226,00

Motor - Specs

Motor - Input Voltage Range (V): 3S Li-Po

Motor - KV (Rpm/V): 1035,00

Motor - Poles: 14-Pole

Motor - Timing: 15-25

Motor - Turns (T): 16,00

Motor - Dimensions

Motor - Dia. ø (mm): 40,00

Motor - Length (mm): 63,00

Motor - Shaft Dia. ø (mm): 5.0 mm

Motor - Weight (g): 164,00
