D-Power S-5100BB Servo Standard (10,2 kg , 0,16s @ 6,0V)

D-Power S-5100BB Servo Standard (10,2 kg , 0,16s @ 6,0V)

D-Power

DPAS5100

Pas de stock

€ 23,90 € 19,75 TVA excl.

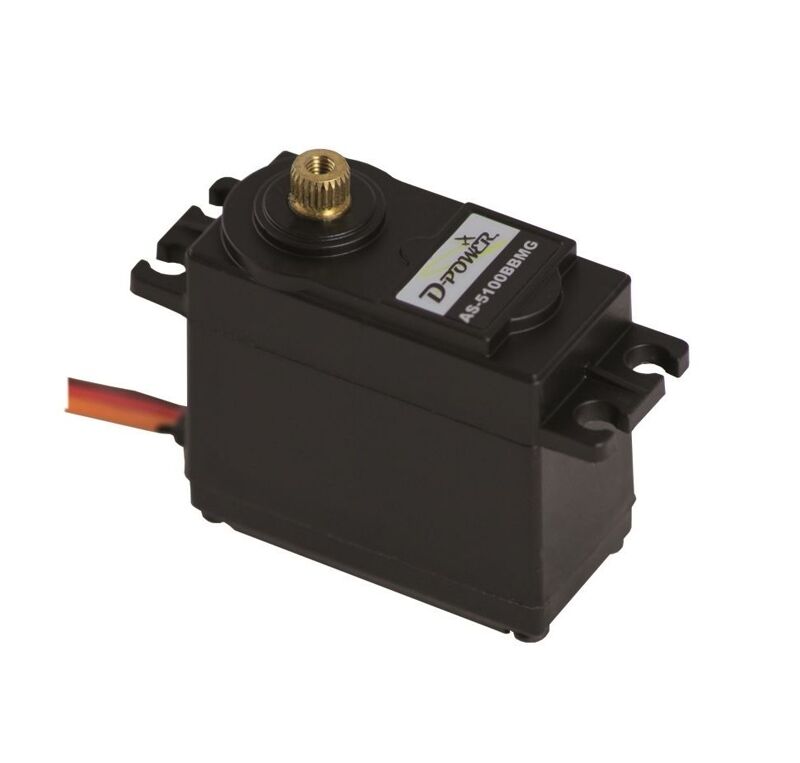

The D-Power AS-5100 BB MG High Torque Standard Servo with heavy duty metal gearbox and ball bearings is suitable for all RC applications where a lot of power is needed.

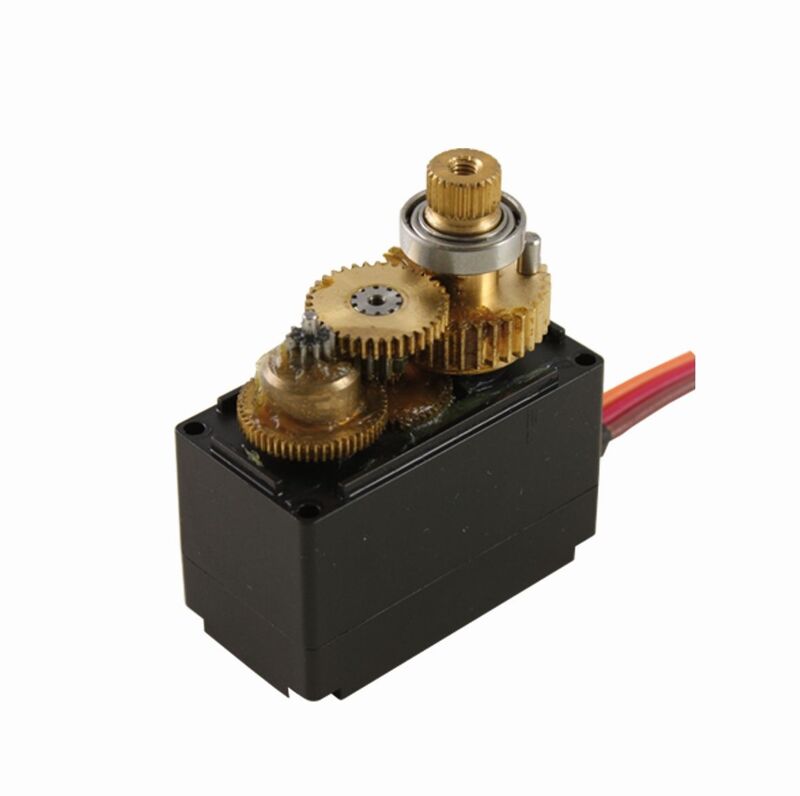

Metal gearbox
Ball bearing
Dustproof plastic housing
JR/hitec connector system
operating voltage: 4.8-6.0V
operating time 4.8V: 0,18s / 60°.
operating time 6.0V: 0,16s / 60°.
actuating torque 4,8V: 90 Ncm
actuating torque 6,0V: 102 Ncm
weight: 56 g
Dimensions: 41 x 20 x 38 mm

General Info

Brand: D-Power

Item Nr: AS5100

Barcode: 0,00

Servo - Specs

Speed 60°/Sec @ 4.8V: 0,18

Speed 60°/Sec @ 6.0V: 0,16

Torque kg/cm @ 4.8V: 9,00

Torque kg/cm @ 6.0V: 10,20

Servo - Dimensions

Servo Type: Standard Servo

Spline Type: 25T Spline

Length (mm): 41,00

Width (mm): 20,00

Height (mm): 38,00

Weight (g): 56,00

Servo - Technology

Technology: Analog

Operating Voltage (V): 4.8V - 6.0V

Servo Protection: None

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Metal Gears

Servo Case: Composite Case

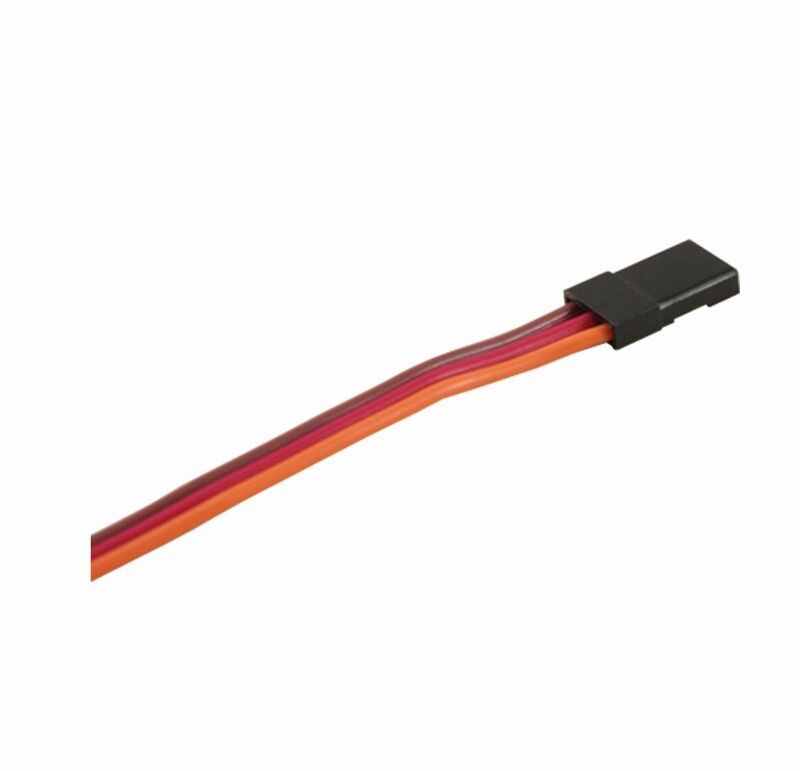

Connector: JR Universal + Colored Lead
