D-Power DS-445BB MG Servo Digital Midi (4,5 kg , 0,12s @ 6,0V)

D-Power DS-445BB MG Servo Digital Midi (4,5 kg , 0,12s @ 6,0V)

D-Power

DPDS445

4 En stock

€ 19,90 € 16,45 TVA excl.

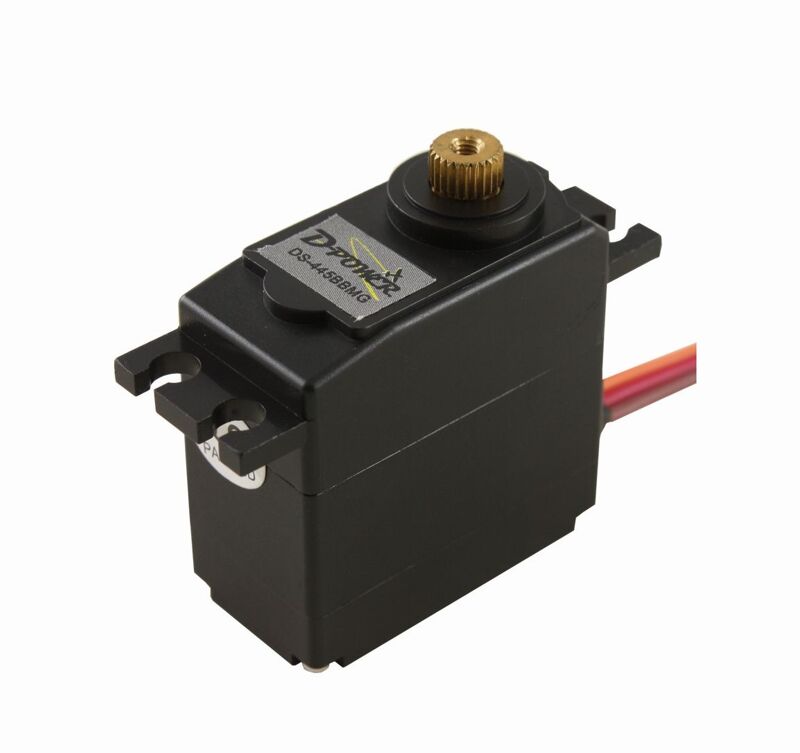

The D-Power DS-445BB MG Allround Midi Digital Servo with metal gearbox, double ball bearing, suitable for all RC applications.

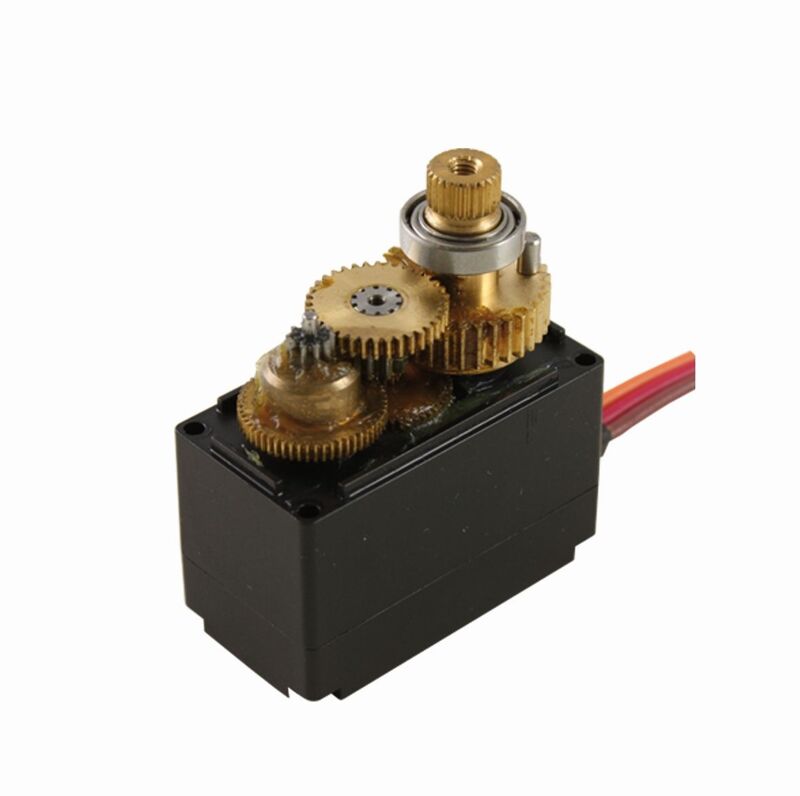

Metal gearbox
Ball bearing
Dustproof plastic housing
JR/hitec connector system
Operating voltage: 4.8-6.0V
Operating time 4.8V: 0,14s / 60°.
Operating time 6.0V: 0,12s / 60°.
Actuating torque 4,8V: 38 Ncm
Actuating torque 6,0V: 45 Ncm
Weight: 34 g
Dimensions: 32.5 x 17 x 34.5 mm

General Info

Brand: D-Power

Item Nr: DS445

Barcode: 0,00

Servo - Specs

Speed 60°/Sec @ 4.8V: 0,14

Speed 60°/Sec @ 6.0V: 0,12

Torque kg/cm @ 4.8V: 3,80

Torque kg/cm @ 6.0V: 4,50

Servo - Dimensions

Servo Type: Midi Servo

Spline Type: 25T Spline

Length (mm): 32,50

Width (mm): 17,00

Height (mm): 34,50

Weight (g): 34,00

Servo - Technology

Technology: Digital

Operating Voltage (V): 4.8V - 6.0V

Servo Protection: None

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Metal Gears

Servo Case: Composite Case

Connector: JR Universal + Colored Lead
