D-Power DS-450BB MG Servo Digital Midi (5,0 kg , 0,14s @ 6,0V)

D-Power DS-450BB MG Servo Digital Midi (5,0 kg , 0,14s @ 6,0V)

D-Power

DPDS450

8 En stock

€ 18,90 € 15,62 TVA excl.

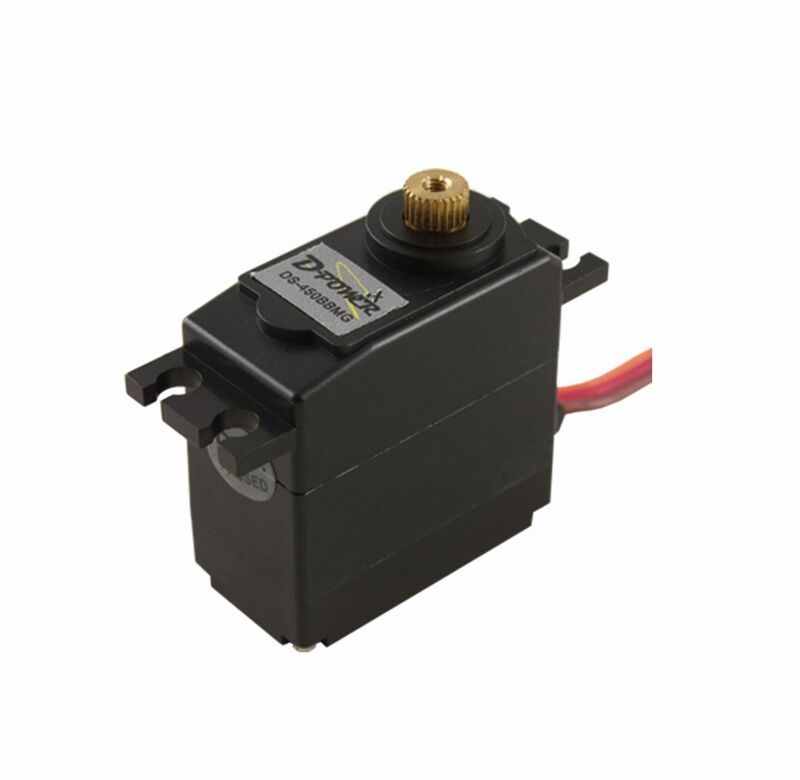

The D-Power DS-450BB MG High Torque Midi Digital Servo with ball bearing and metal gearbox, suitable for all RC applications where power and torque are required.

Metal gearbox
Ball bearing
Dustproof plastic housing

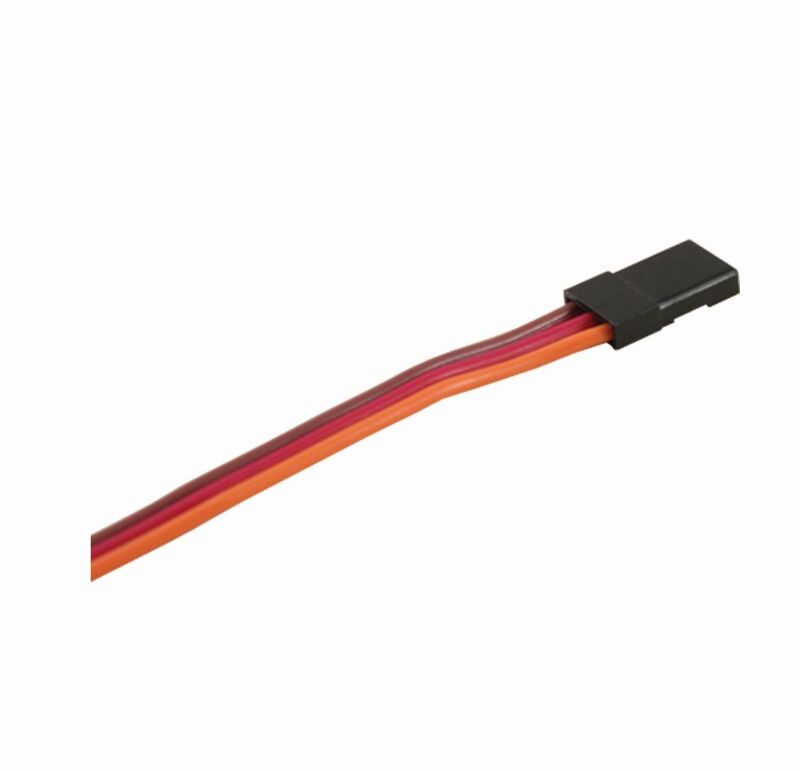

JR/hitec connector system
operating voltage: 4.8-6.0V
operating time 4.8V: 0,15s / 60°.
operating time 6.0V: 0,14s / 60°.
actuating torque 4,8V: 44 Ncm
actuating torque 6,0V: 50 Ncm
weight: 32 g
Dimensions: 32.5 x 17 x 34.5 mm

General Info

Brand: D-Power

Item Nr: DPDS450

Barcode: 0,00

Servo - Specs

Speed 60°/Sec @ 4.8V: 0,15

Speed 60°/Sec @ 6.0V: 0,14

Torque kg/cm @ 4.8V: 4,40

Torque kg/cm @ 6.0V: 5,00

Servo - Dimensions

Servo Type: Midi Servo

Spline Type: 25T Spline

Length (mm): 32,50

Width (mm): 17,00

Height (mm): 34,50

Weight (g): 32,00

Servo - Technology

Technology: Digital

Operating Voltage (V): 6.0V - 7.4V

Servo Protection: None

Servo Positioning: VR Potentiometer - Direct Drive

Servo Gears: Metal Gears

Servo Case: Composite Case

Connector: JR Universal + Colored Lead
