The motor identification chip that is built in the motor includes all relevant data for the motor and sends the motor temperature to the Master Senstrol ESC. Furthermore, the chip contains certain security parameters for use in your model. Many of these data can be modified to suit individual needs, but some are fixed for safe operation. Use this F3A Senstrol Motor only with the Master Senstrol ESC.
Specifications:
Powerange: max. 2800W (15 sec.)
Idle Current @ 8,4V: 1,0A
Resistance (Ri): 0,024 Ohm
RPM/Volt (kv): 225 U/min-1
Weight: 520g

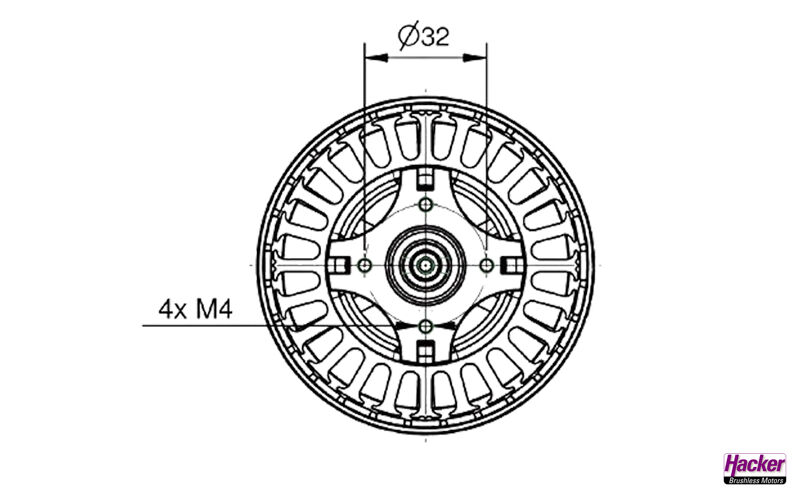

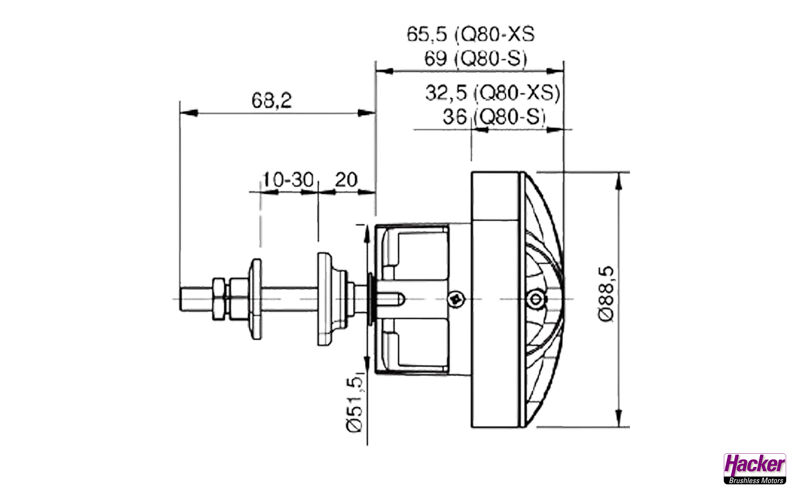

Diameter: 88,5 mm
Length: 69 mm
recom. Speedcontroler Master Senstrol 120
recom. Timing: due ID Chip
Switching Frequenzy: due ID Chip
