Hacker
HACK62100508
E50-M 2,5D

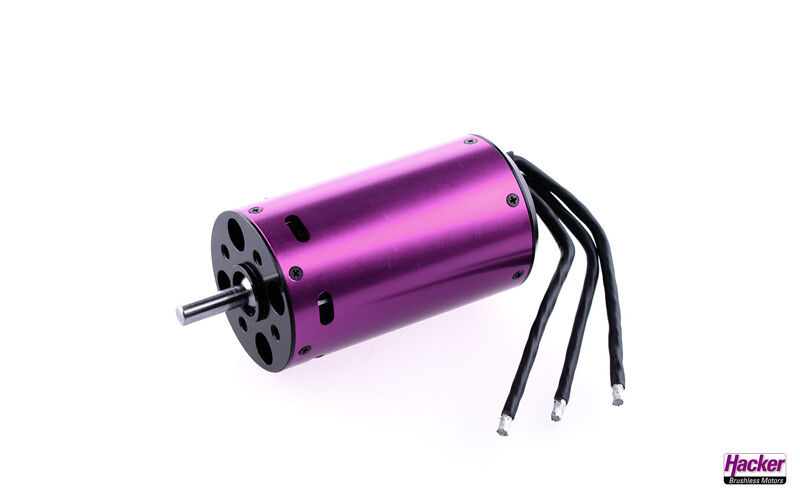

our 4-pole S ductec fan motor for 90mm fans.
lenght: 68,6mmdiameter: 39,1mmweight: 305g
outer shaft diameter: 5mminner shaft diameter: 8mmKv: 1880poles: 4R(I): 8mOhmI(0)@37V: 4,9A
recommended timing: 10-15°
Shaft Diameter: 5mmShaft Lenght: 17mm

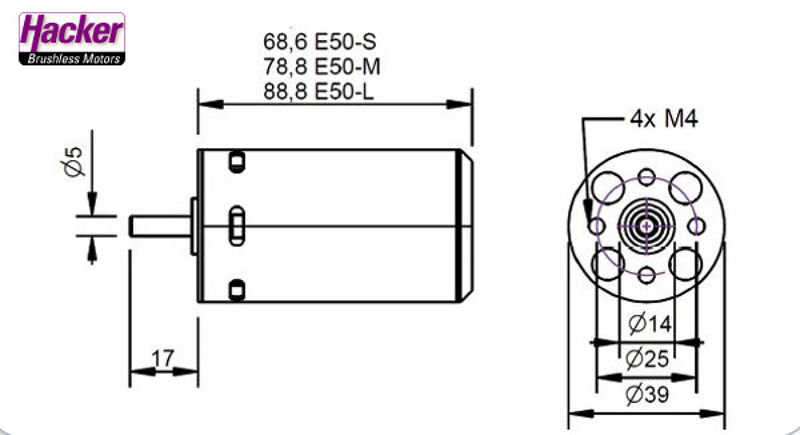

measurements: see StreamFan 90-1800
