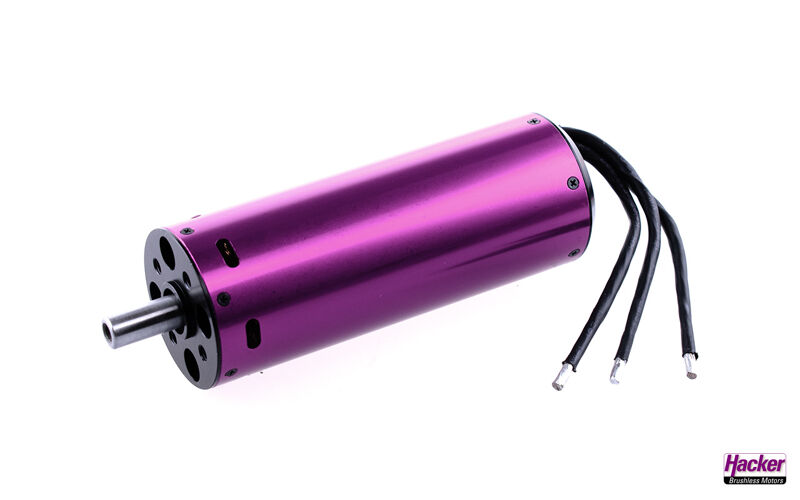

Hacker E50-XL 2,5D kv850

Hacker E50-XL 2,5D kv850

Hacker

HACK62100517

Pas de stock

€ 242,99 € 200,82 TVA excl.

The 4-pole 10-12S impeller motor for 100 - 110mm impeller:

E50-XL 1,5YLength: 103,8mmDiameter: 39.1mmWeight: 535gKv: 780Number of poles: 4R(I): 16.2mOhmI(0)@37V: 2.8ARecommended timing: 10-15°

shaft diameter: 8mm

free shaft length: 17mm

measured values with Jetfan 110 Pro:

voltage under load: 37VCurrent: 100AThrust in grams: 6200

Voltage under load: 44.4VCurrent: 130AThrust in grams: 8200

General Info

Brand: Hacker

Item Nr: HACK62100517

Barcode: 4250320253020,00

Motor - Specs

Motor - Input Voltage Range (V): 10S Li-Po

Motor - KV (Rpm/V): 850,00

Motor - Poles: 4-Pole

Motor - Switching Frequency (kHz): 8 kHz

Motor - Timing: 10-15

Motor - Turns (T): 2,50

Motor - Dimensions

Motor - Dia. ø (mm): 39,10

Motor - Length (mm): 103,80

Motor - Shaft Dia. ø (mm): 8.0 mm

Motor - Weight (g): 535,00
