Hacker A05-13S kv3200

Hacker

HACK97130513

Trade prices TVA excl.

1 / € 28,09

Pas de stock

€ 33,99 € 28,09 TVA excl.

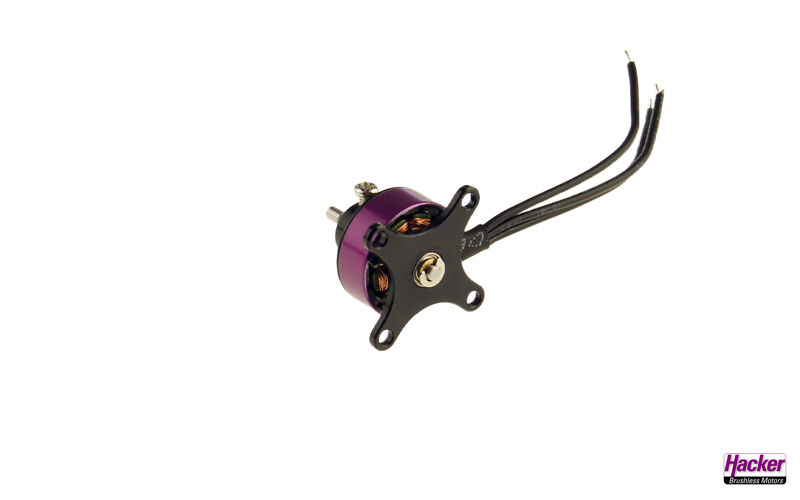

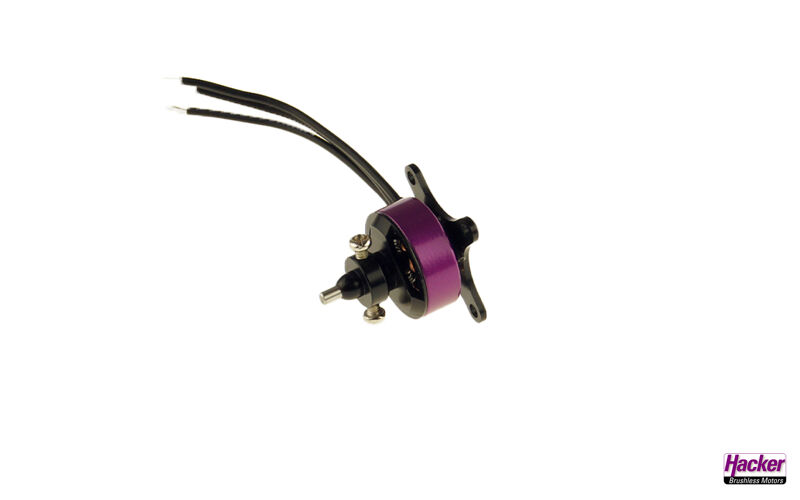

The A05 is the smallest motor from the house of Hacker Motor GmbH.
This small weight-optimized high-end motor with a weight of only 7.5 g is often used in models around the 150g class.
The 12-pole outrunner is connected directly to the controller because it depends in this weight class on every gram.

General Info

Brand: Hacker

Item Nr: HACK97130513

Barcode: 4250320228400,00

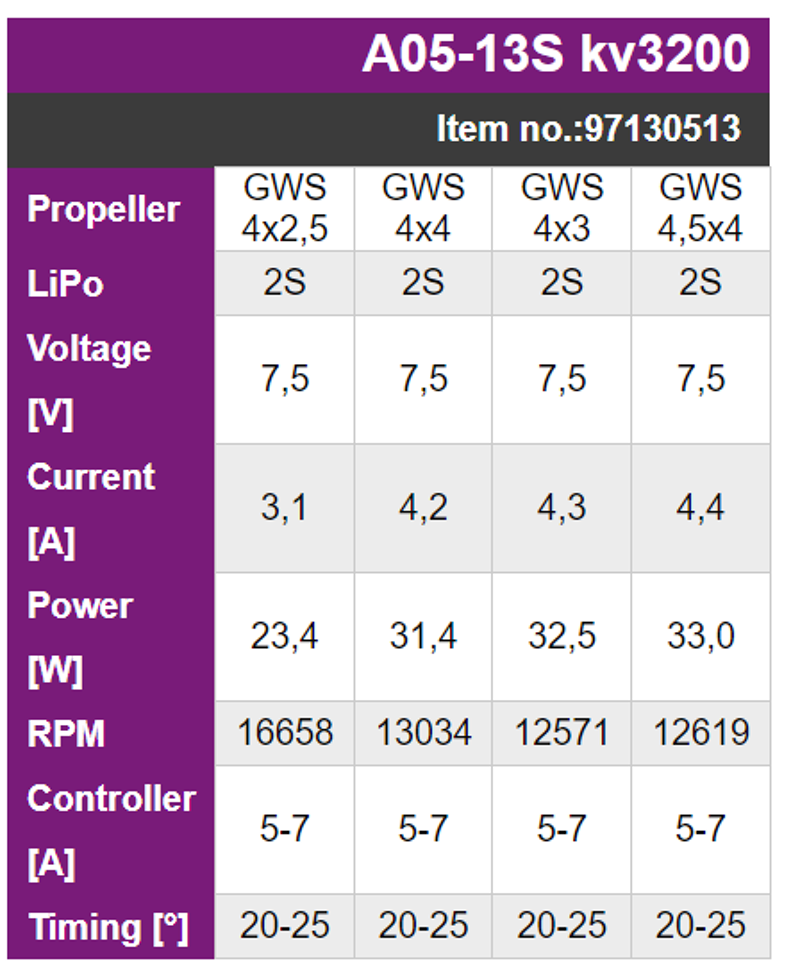

Motor - Specs

Motor - Input Voltage Range (V): 2S Li-Po

Motor - KV (Rpm/V): 3200,00

Motor - Poles: 12-Pole

Motor - Switching Frequency (kHz): 8 kHz

Motor - Timing: 20-25

Motor - Turns (T)

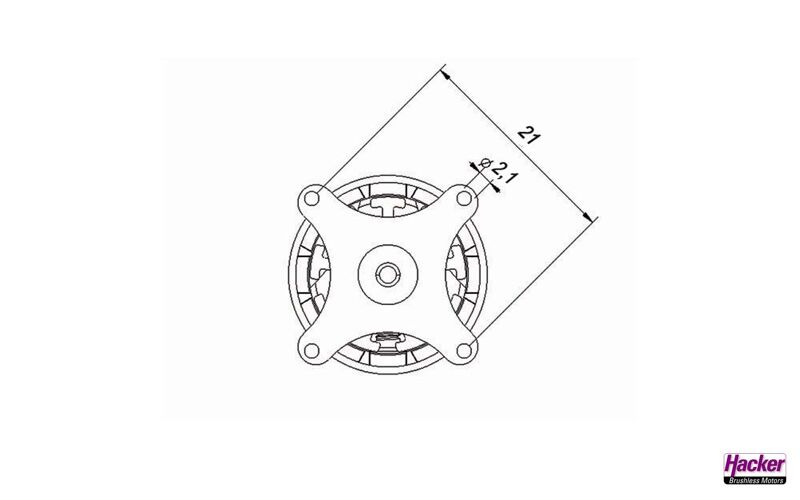

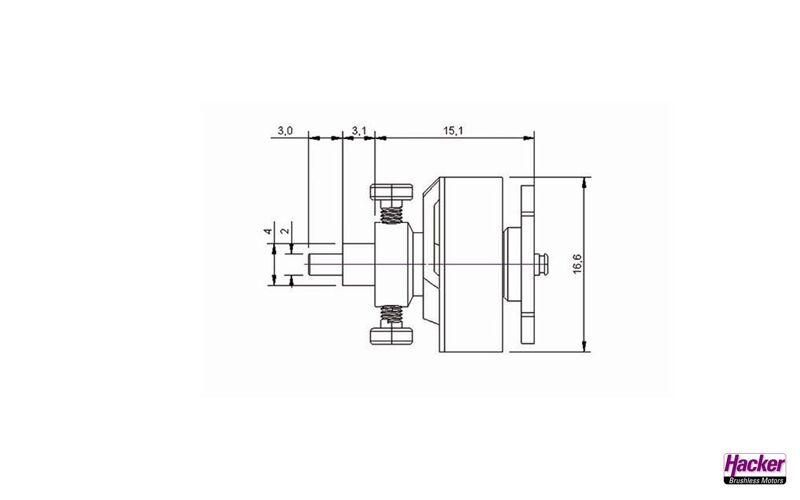

Motor - Dimensions

Motor - Dia. ø (mm): 16,60

Motor - Length (mm): 15,00

Motor - Weight (g): 7,50
