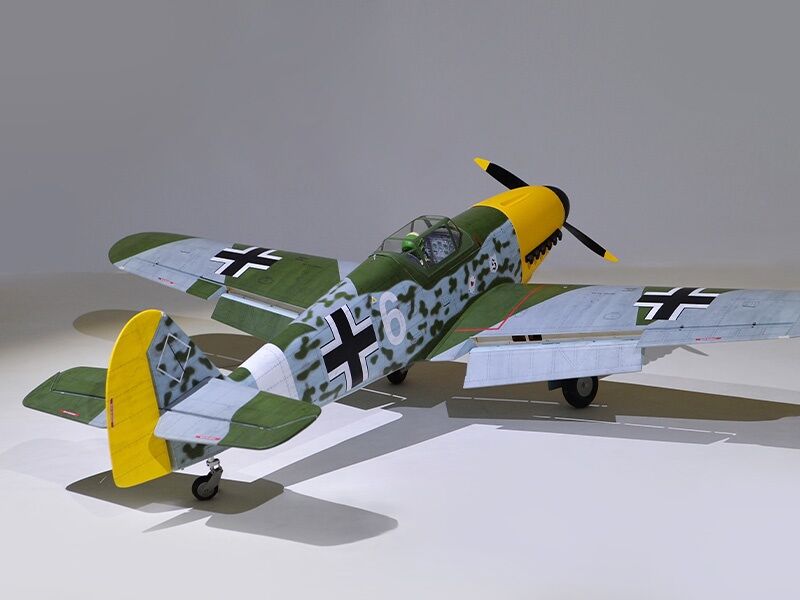

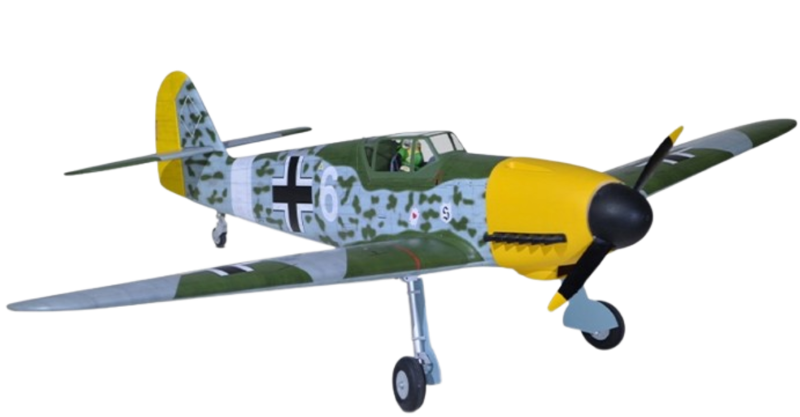

The Messerschmitt Bf 109 from Phoenix is a true-to-original warbird with a 1.82m wingspan. The model is constructed in an extremely light and high-strength wooden construction and is designed for electric or combustion engines.
Wooden construction with an extremely high degree of prefabrication
The model is made in an extremely light and high-strength balsa/plywood construction. The laser-cut construction impresses with an extremely high degree of prefabrication, which means that the construction effort is reduced almost to the installation of the drive and electronics. There is plenty of space under the removable canopy for installing the electronics. The Bf 109 is completely covered with foil.
Electric retractable landing gear included

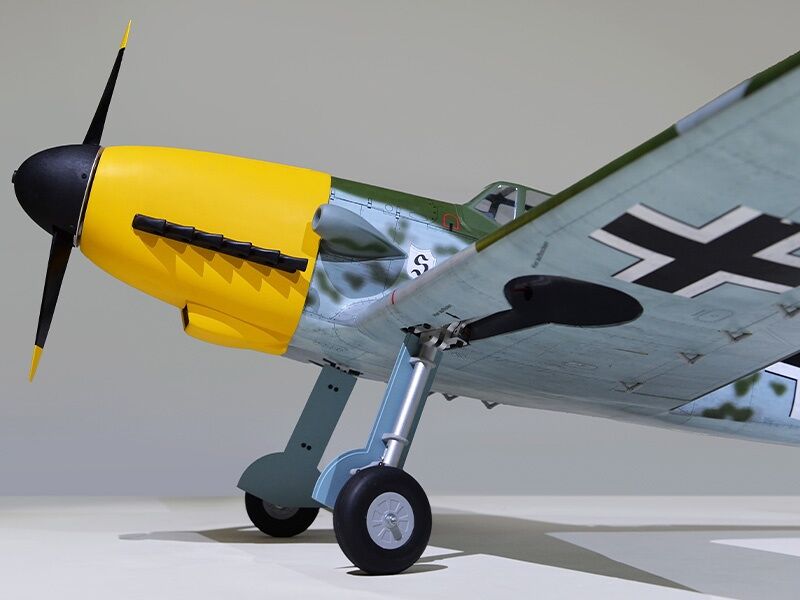

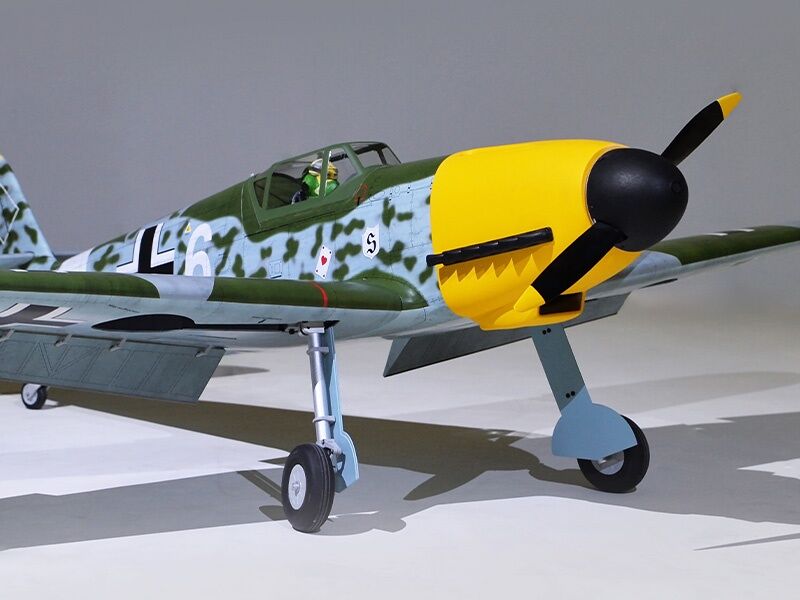

The model comes with an electrically retractable main landing gear and a spring-loaded nose gear. The landing gear legs are made entirely of CNC-milled metal.
Electric or combustion
This model can do both! The construction is prepared for both electric drive and drive with combustion engines. So the only question is: do you want great sound or absolute efficiency?
Features:
- Electric or combustion operation possible
- Extremely light and high-strength, laser-cut balsa/plywood construction
- High degree of prefabrication, fully covered and painted

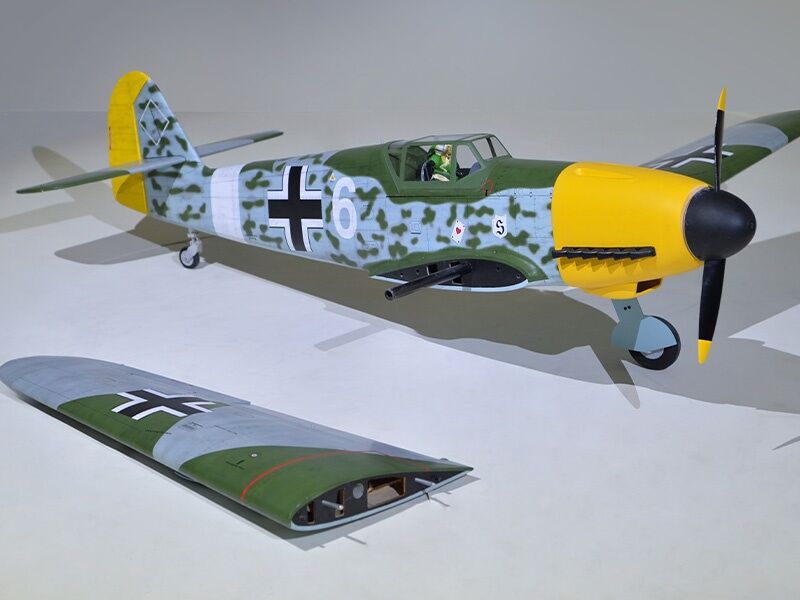

- Removable wing for easy transport
- Functional landing flaps

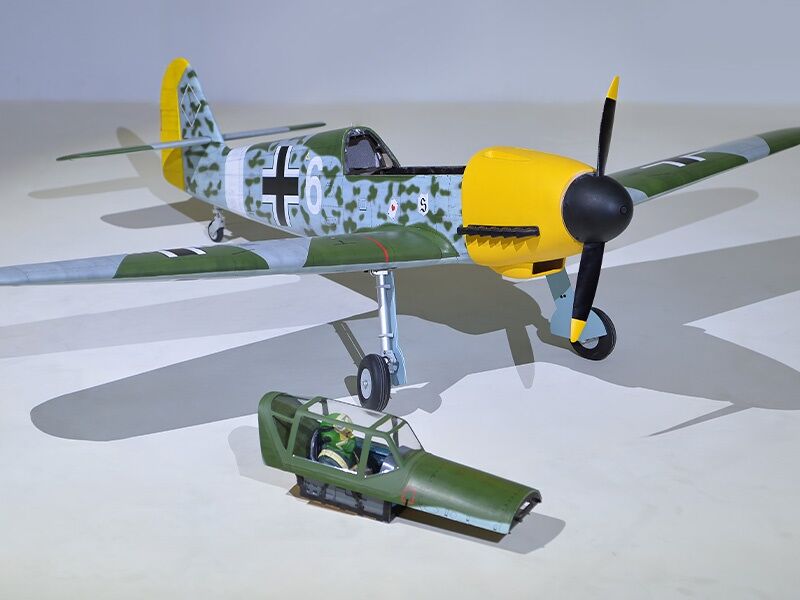

- Removable canopy

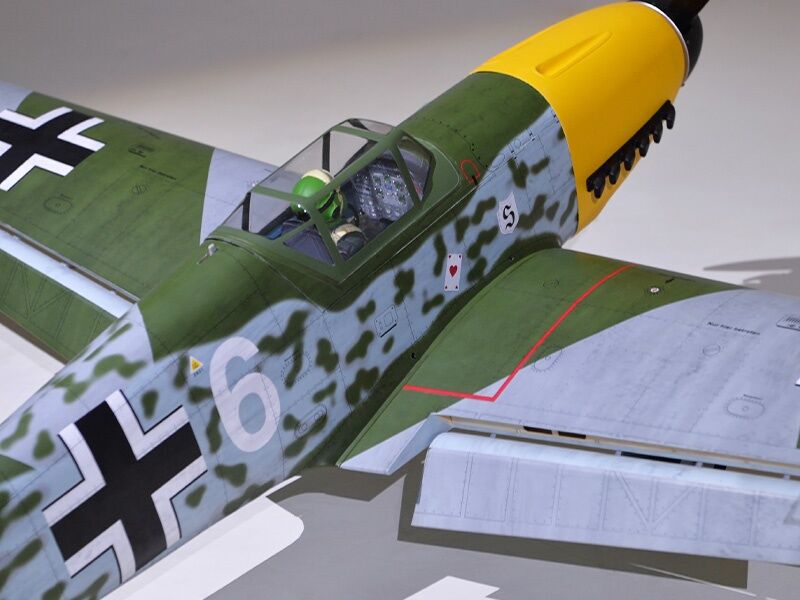

- Detailed cockpit with pilot figure
- Many scale details
- Including electric metal retractable landing gear
- Including nose gear
- Including 115mm spinner
- Excellent flight characteristics
Technical data:
- Wingspan: 1820 mm
- Length: 1609 mm
Required accessories:
- Remote control: at least 8 channels
- Receiver: at least 8 channels
- Drive: electric (1500-1800W, 450KV) or combustion 20-26ccm
- Propeller: depending on the drive
- 2x standard servo for ailerons
- 2x standard servo for landing flaps
- 2x standard servo for elevator
- 1x standard servo for Rudder
- (1x standard servo for gas)
Electric drive recommendation:
- Motor: Brushless outrunner 1500-1800W, 450KV
- Controller: 80-100A
- Battery: 6S 4000-5500mAh
Gasoline drive recommendation:
- Motor: 20-26ccm
- 1 additional standard servo for gas
