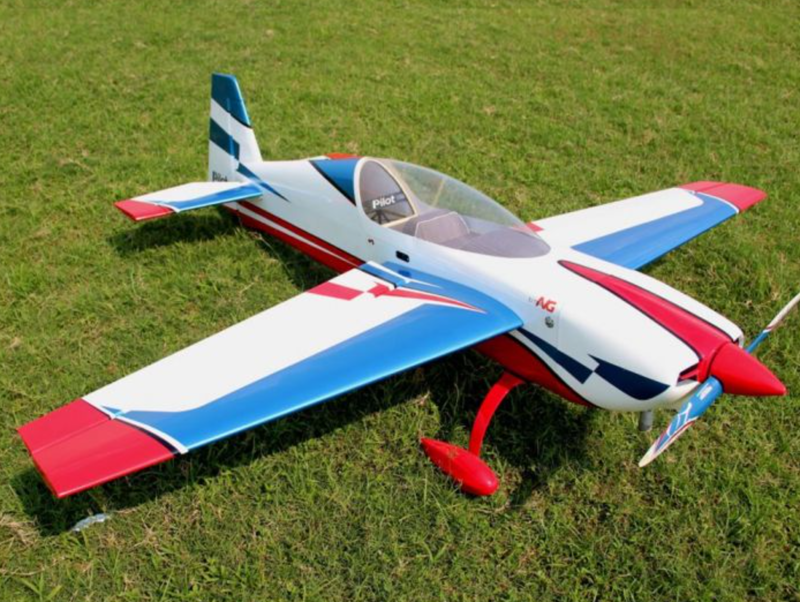

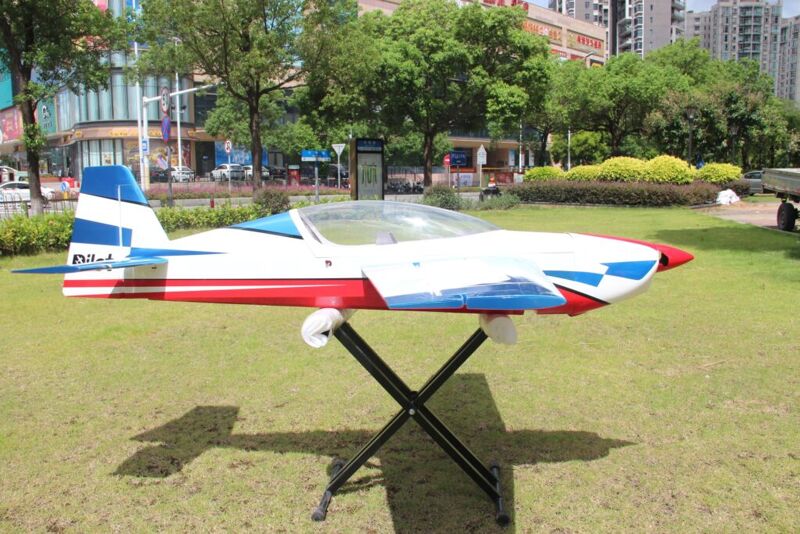

Pilot RC - Extra NG 103", Blue/White/Red ARF Kit (Scheme 01)
Pilot-RC
PILEXTNG103C01
Trade prices TVA excl.
1/€ 1.073,55
Pas de stock
€ 1.299,00€ 1.073,55 TVA excl.
A brand new design, built from a classic. In 2019 Extra Acrobatic Aircraft unveiled their latest masterpiece, and now in 2020 Pilot-RC is unveiling ours.
The Extra NG is the latest iteration of the Extra family, each version becoming more precise and more agile than ever before, and this feeds down all the way through our models.
This new design, combined with all of Pilot-RC’s latest build innovations and methods provide a high quality kit that can be built within minutes upon arrival at the flying field and relied upon for strength, agility and all round fun.
120cc airframe is most popular for compettition and this EXTRA NG is one of the best choice high precision 3D XA airframe our team pilot say in the same way like Extra NG is next-gen flying capabilities it has a Awesome tail authority and Fast roll and accurate also smooth in slow speed and doing some tumble great at the same time
SPECIFICATIONS:
Model:
Extra NG
Wingspan:
103″ (2.630mm)
Length:
101″ (2.580mm) with 5″ spinner
Wing area:
1,843″² (11,890cm²)
Weight:
27.72lbs (12.6kg)
FEATURES:
NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
NEW! Patented quick assembly system for wings, stabilizer and SFG
NEW! Patented quick assembly system for canopy.
Film covering applied over a Genuine German Oracover (Ultracote) base
Highly prefabricated, experienced builders can have air ready in under a day
Pre-installed hinges (glued and pinned)
Internally mounted cowling – so no visible external screws exposed (two exposed screws underneath for easy mounting)
Removable wings and stabs
Laser engraved motor mounting position
Easy canister installation due to open construction
Pull push system for Rudder servo
INCLUDED HARDWARE:
Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
“Spare” lower section cowl from transparent plastic – used to mark out correct location to cut the cowl for perfect fitting every time
Pre-installed hinges and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Wheels, axels and wheel pants
Pre-prepared pushrods with ball links
Matching carbon spinner, 4.5″
REQUIRED HARDWARE:
Motor: 80-120cc or equivalent electric
Servos: 7 high torque plus throttle // Uses x2 per aileron, x1 per elevator half and x1 or x2 on rudder using push-pull
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.
CENTER OF GRAVITY:
225mm - Measured back from leading edge of the wing at the fuselage.
You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
General Info
Brand
Pilot-RC
Item Nr
PILEXTNG103C01
Airplane - Specs
Material
Wood
Wingspan (mm)
2660
Model Length (mm)
2580
Take-off Weight (g)
12600
Airplane - Functions
Controls
Elevator
Ailerons
Motor
Rudder
Required Radio (Not included)
Min. 8 Channel
Airplane - Power System
Power System
Not Included (See Needed to complete)
Propeller / EDF
Not Included (See Needed to complete)
Speed Controller - ESC
Not Included (See Needed to complete)
Required Battery (Not included)
Li-Po 12S - 5000mAh - Min. 25C
Airplane - Electronics
Receiver
Not Included
Qty of Servos
7x Servos | 1 optional for GAS motor (Not Included | See Needed to complete)
