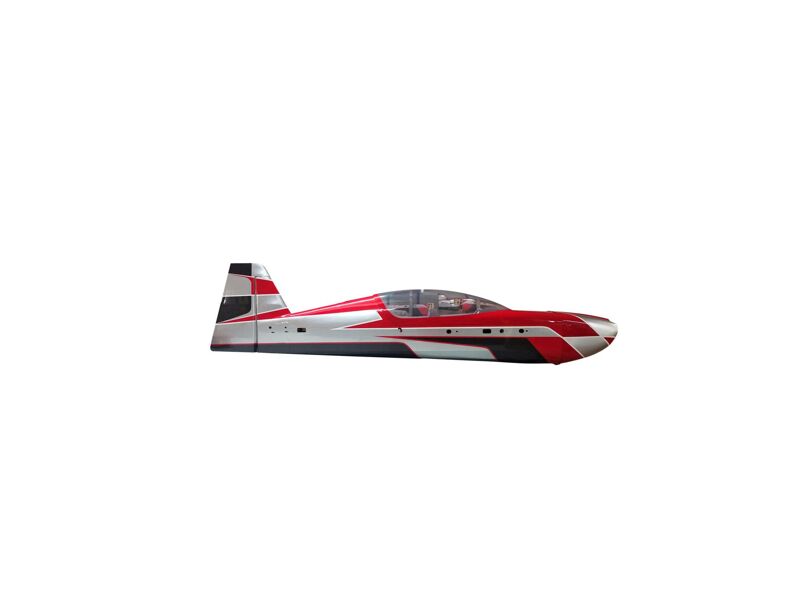

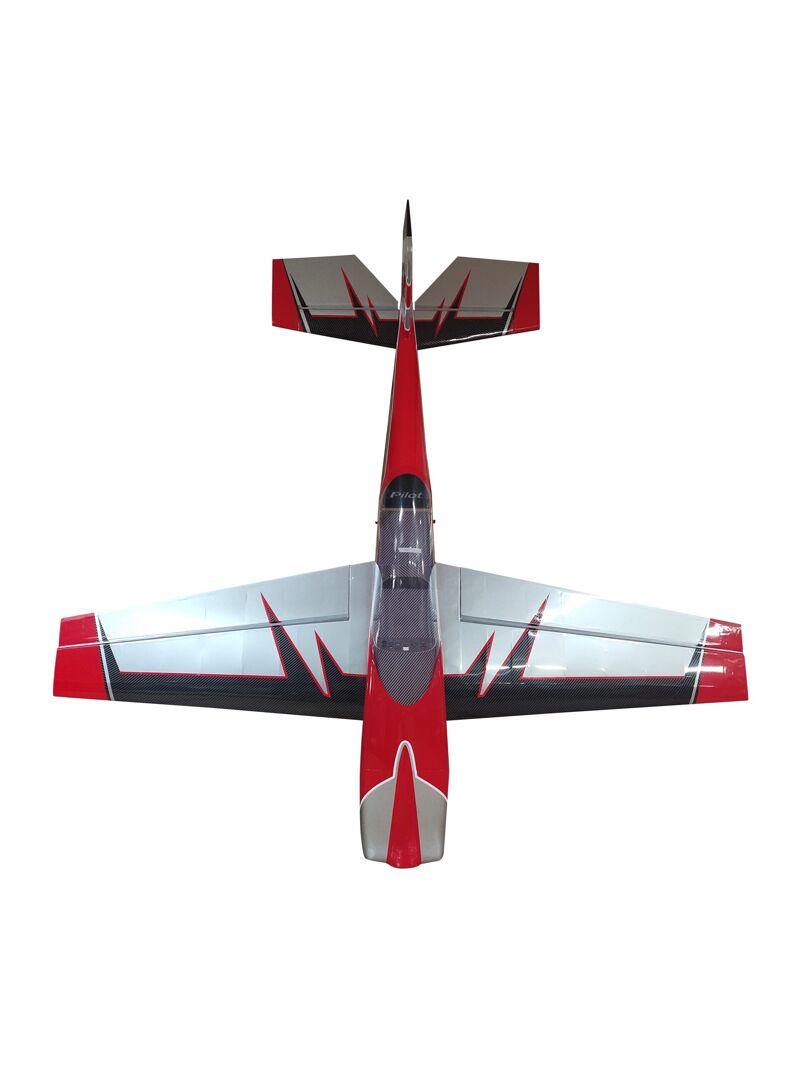

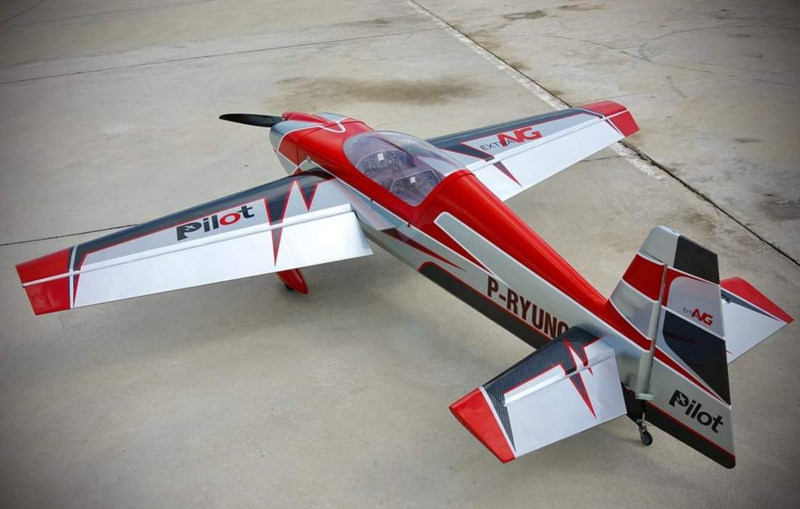

Pilot RC - Extra NG 78", Red/Grey/Black ARF Kit (Scheme 04)
Pilot-RC
PILEXTNG78C04
Pas de stock
€ 579,00€ 478,51 TVA excl.
A brand new design, built from a classic. In 2019 Extra Acrobatic Aircraft unveiled their latest masterpiece, and now in 2020 Pilot-RC is unveiling ours.
The Extra NG is the latest iteration of the Extra family, each version becoming more precise and more agile than ever before, and this feeds down all the way through our models.
This new design, combined with all of Pilot-RC’s latest build innovations and methods provide a high quality kit that can be built within minutes upon arrival at the flying field and relied upon for strength, agility and all round fun.
SPECIFICATIONS:
Model:
Extra NG
Wingspan:
78″ (1.970mm)
Length:
74.2″ (1.884mm) without spinner
Wing area:
1,216 “² (7,847 cm²)
Weight:
12.5lbs (5.7kg)
FEATURES:
NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
NEW! Patented quick assembly system for wings, stabilazer and SFG.
NEW! Patented quick assembly system for canopy. Especially useful for electric version, fast battery change!
Highly prefabricated, experienced builders can have air ready in under a day
Pre-installed aileron and elevator hinges (glued and pinned)
Easy canister installation due to open construction
Removable wings and stabilizer
Laser engraved motor mounting position
Pull-Pull system for Rudder servo
Cowl fits both gasoline and electric motors
INCLUDED HARDWARE:
Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
Pre-installed hinges and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Wheels, axels and wheel pants
Pre-prepared pushrods with ball links
Matching carbon spinner, 3.5″
REQUIRED HARDWARE:
Motor: 30-40cc or equivalent electric
Servos: 5 high torque plus throttle // Uses x1 per aileron, x1 per elevator half and x1 on rudder
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.
CENTER OF GRAVITY:
180mm - Measured back from leading edge of the wing at the fuselage.
You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
General Info
Brand
Pilot-RC
Item Nr
PILEXTNG78C04
Airplane - Specs
Material
Wood
Wingspan (mm)
1970,00
Model Length (mm)
1884,00
Take-off Weight (g)
5700,00
Airplane - Functions
Controls
Rudder
Elevator
Motor
Ailerons
Required Radio (Not included)
Min. 8 Channel
Airplane - Power System
Power System
Not Included (See Needed to complete)
Propeller / EDF
Not Included (See Needed to complete)
Speed Controller - ESC
Not Included (See Needed to complete)
Required Battery (Not included)
Li-Po 12S - 4000mAh - Min. 25C
Airplane - Electronics
Receiver
Not Included
Qty of Servos
5x Servos | 1 optional for GAS motor (Not Included | See Needed to complete)
