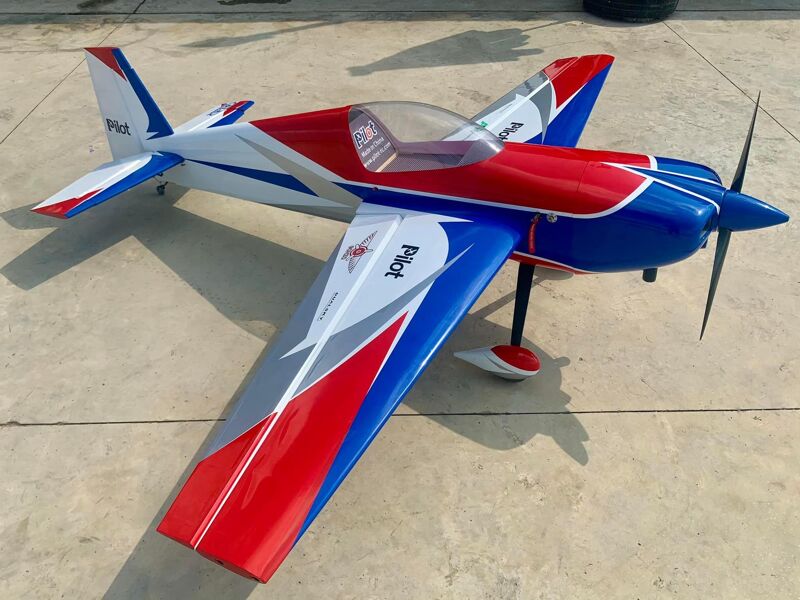

Pilot RC - Slick 103", Red/Blue ARF Kit (Scheme 03)
Pilot-RC
PILSLI103C03
Trade prices TVA excl.
1/€ 1.073,55
Pas de stock
€ 1.299,00€ 1.073,55 TVA excl.
Pilot-RC already surprised everyone with a new level of precision and agility with our extremely popular Laser. We have now taken all these great features and grown them into our new Slick.
The Pilot-RC Slick, as well as looking great and offering color schemes designed by legendary Italian designer Mirco Pecorari at Aircraft Studio Design, it once again flys as good as it looks, and that is really saying something!
All the crazy agility and manoeuvrability of the Laser, while keeping the friendly flying characteristics of Pilot-RC planes, the new Slick offers an even further improvement in precision and aero musical performance, feeling like a larger plane, a larger plane that can go nuts!
SPECIFICATIONS:
Model:
Slick – 103″
Wingspan:
103.8″ (2.638mm)
Length:
102.1″ (2.594mm) with 4.5″ Spinner
Wing area:
1,863 “² (12,020 cm²)
Weight:
26.95lbs (12.2kg)
FEATURES:
NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
NEW! Patented quick assembly system for wings, stabilizer and SFG
NEW! Patented quick assembly system for canopy.
Genuine German Oracover (Ultracote) covering
Highly prefabricated, experienced builders can have air ready in under a day
Pre-installed hinges (glued and pinned)
Internally mounted cowling – so no visible external screws exposed (two exposed screws underneath for easy mounting)
Removable wings and stabs
Laser engraved motor mounting position
Easy canister installation due to open construction
Pull push system for Rudder servo
INCLUDED HARDWARE:
Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
Pre-installed hinges and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Wheels, axels and wheel pants
Pre-prepared pull-pull wires and pushrods with ball links
Matching carbon spinner, 4.5″
REQUIRED HARDWARE:
Motor: 100-130cc or equivalent electric
Servos: 7-8 high torque (minimum 20kg) plus throttle // Uses x2 per aileron, x1 per elevator and x1 or x2 on rudder
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.
CENTER OF GRAVITY:
212mm - Measured back from leading edge of the wing at the fuselage.
You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
General Info
Brand
Pilot-RC
Item Nr
PILSLI103C03
Airplane - Specs
Material
Wood
Wingspan (mm)
2587
Model Length (mm)
2514
Take-off Weight (g)
11750
Airplane - Functions
Controls
Elevator
Rudder
Ailerons
Motor
Required Radio (Not included)
Min. 8 Channel
Airplane - Power System
Power System
Not Included (See Needed to complete)
Propeller / EDF
Not Included (See Needed to complete)
Speed Controller - ESC
Not Included (See Needed to complete)
Required Battery (Not included)
Li-Po 12S - 5000mAh - Min. 25C
Airplane - Electronics
Receiver
Not Included
Qty of Servos
7x Servos | 1 optional for GAS motor (Not Included | See Needed to complete)
