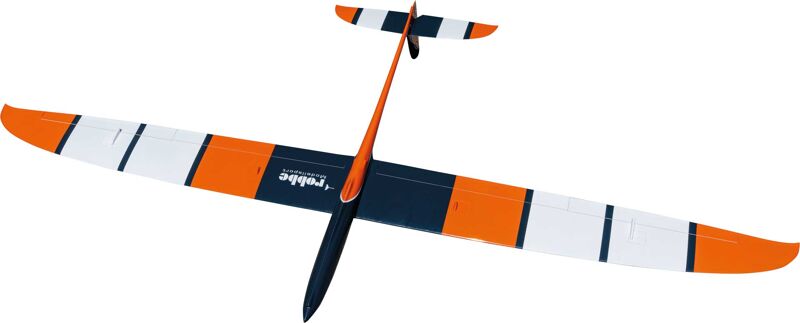

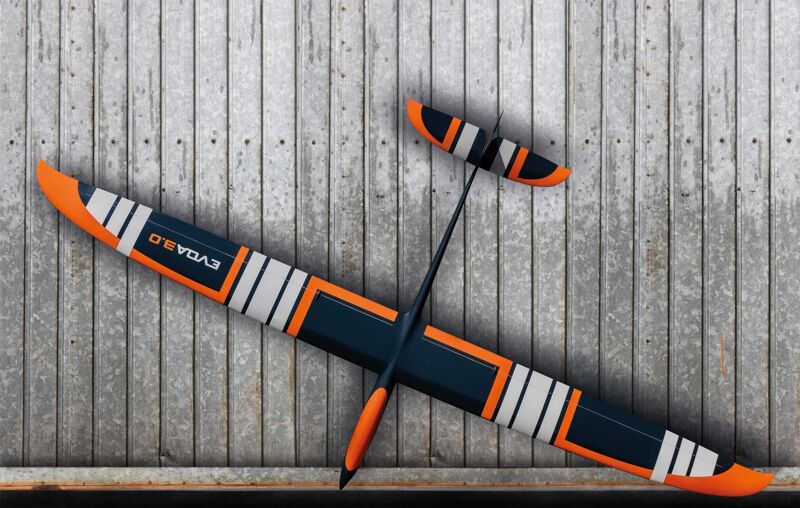

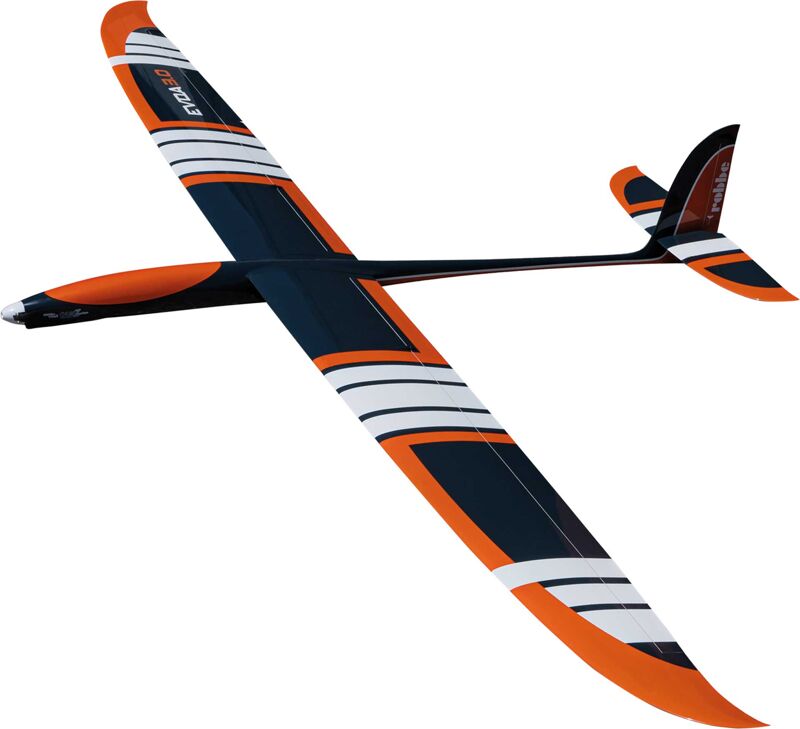

Robbe - Evoa 3.0 3000mm Full Composite High Performance ARF Kit FRP
Robbe
ROB2690
Seulement 1 en stock
€ 1.100,01€ 909,10 TVA excl.

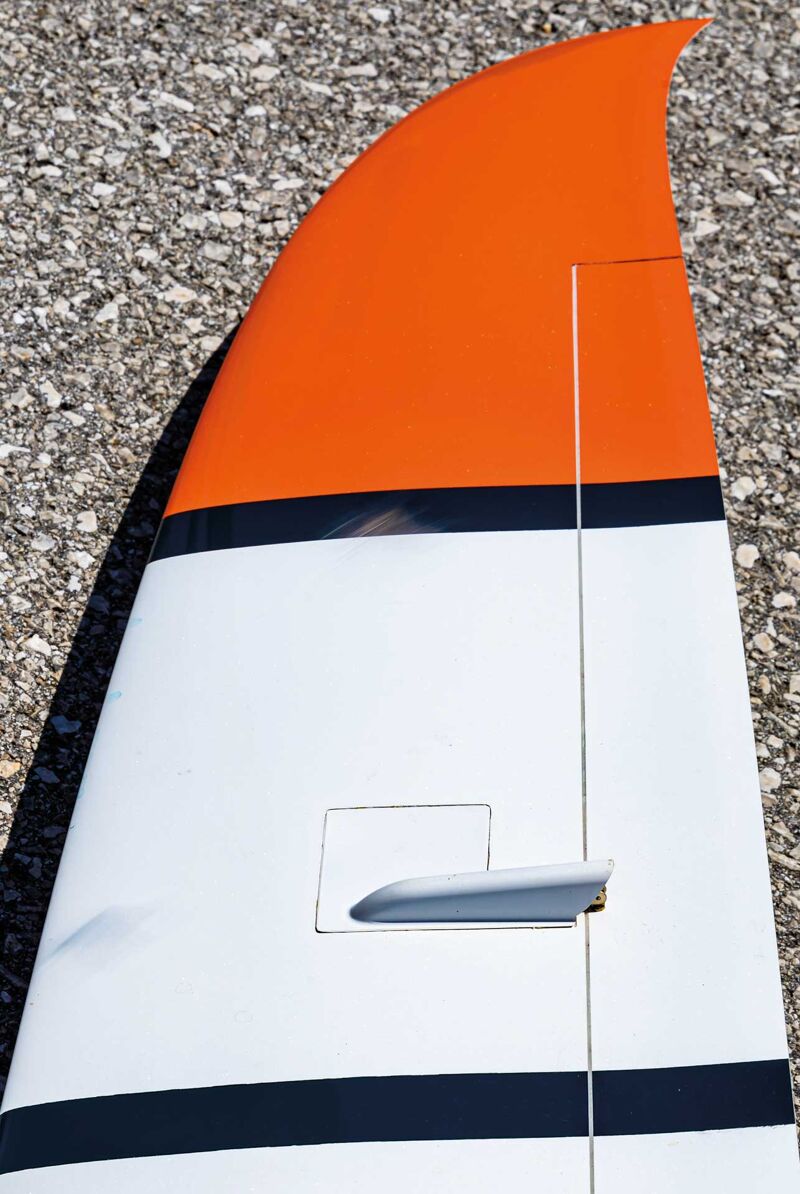

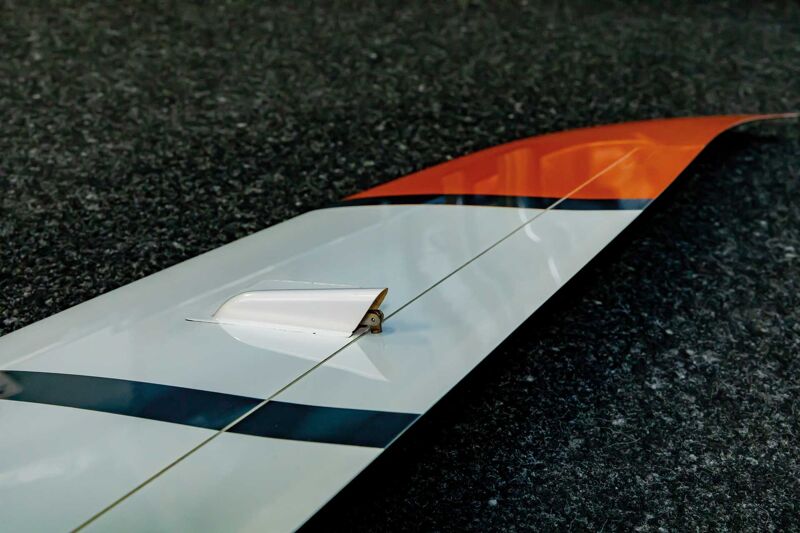

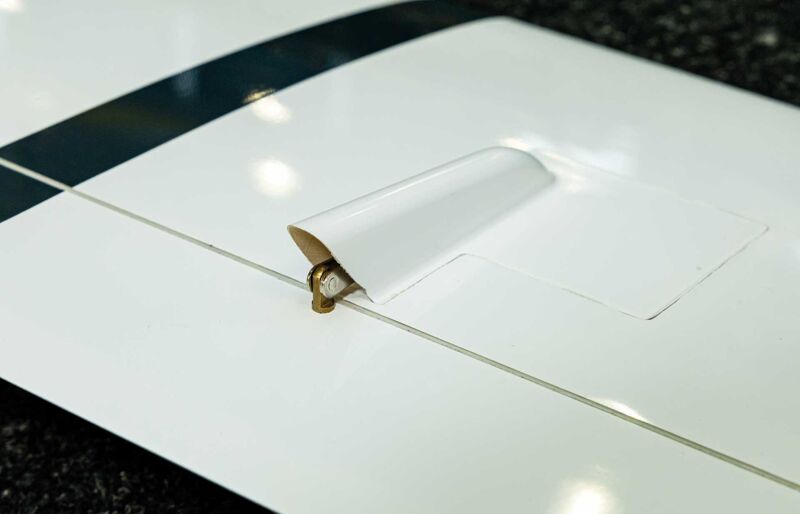

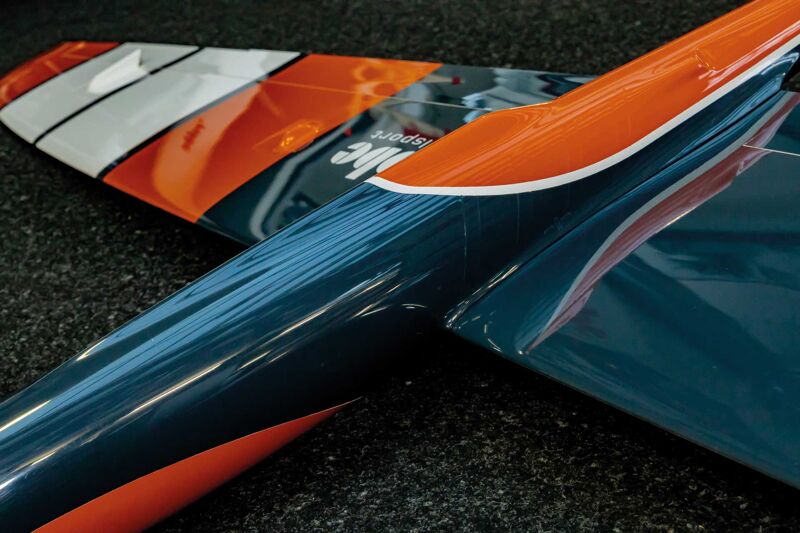

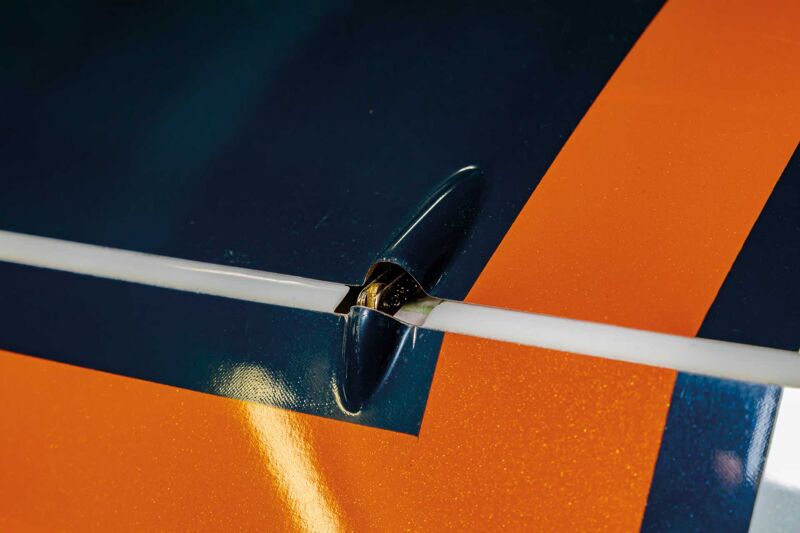

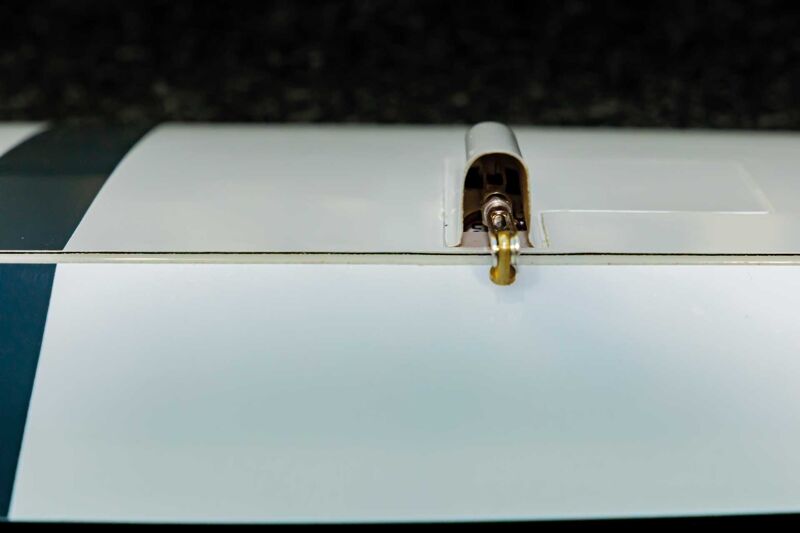

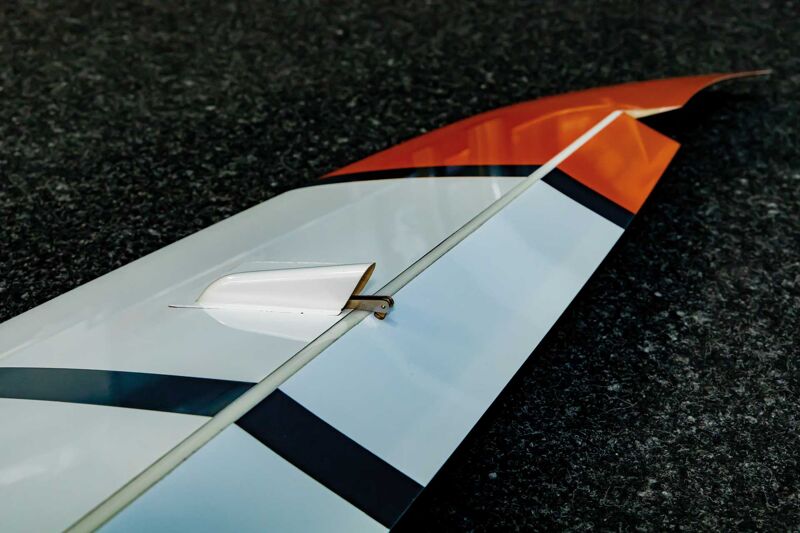

It has a very compact and transport-friendly size with its 3.0 m wingspan and the two-part wing, which is attached to the side of the fuselage. The wing load is transmitted via a large CFRP spar connector. The EVOA is manufactured using the latest full GRP sandwich construction and has many carbon fiber reinforcements in the critical areas. The wing is designed as a typical 4-flap wing with ailerons and flaps, which are classically cross-hinged. The lateral axis is stabilized and controlled via a laterally pluggable pendulum elevator using a bellcrank. The flight characteristics can be described as more than just good-natured, especially due to its low weight. It can be circled slowly and comfortably in thermals, but can also be flown somewhat more sportily in dynamic aerobatics.
The model is available in four versions (electric and glider, each as ARF/PNP) and is largely pre-assembled in the PNP version.

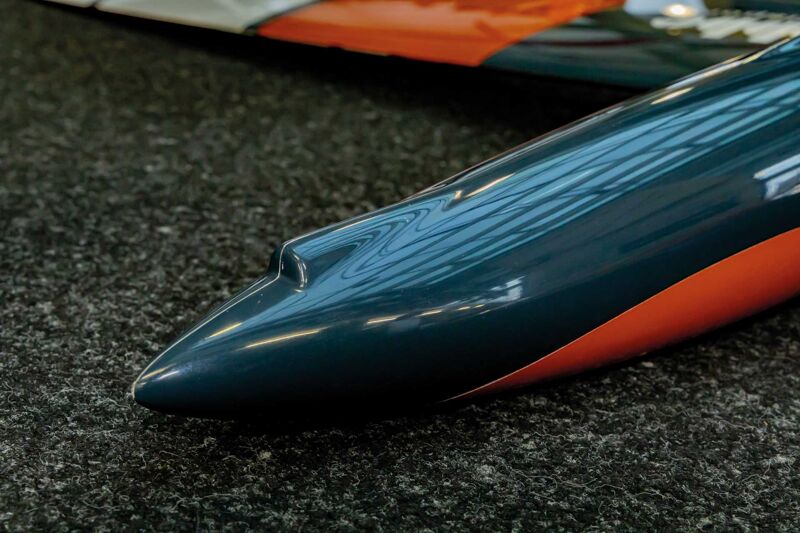

The Ro-Power Torque X-36 motor, spinner, Aeronaut propeller and the servos including wiring are pre-installed in the electric PNP version, so that the construction effort is reduced to a minimum. The glider PNP is just as prefabricated, but without the motor, but with a closed glider fuselage nose.
In the ARF version of both versions, you have the option of using individual RC components at your own discretion.
Technical data :
Wing-span (mm): 3000
Flight weight approx. (g): 2890
Control: H,S,Q,M,WK
Length (mm): 1500
Manufacturer: Robbe Modellsport
Fuselage: Carbon/FiberGlass
Wings: Fiberglass/Carbon
Rec. engine: Ro-Power Torque X-36 800 k/v BL
Rec. Battery: 4S/3200-4000mAh LiXX
Version: ARF - ALMOST READY TO FLY
Airfoil: HQ/W2,5-9
Flight Skill: Professional
Build Skill: Advanced
Drive Type: Electric
Box contents
Model EVOA 3.0 in full GRP/CFRP construction, in mold multicolor painted
CFK coving
Small material
Assembly instructions in German/English/French
General Info
Brand
Robbe
Item Nr
ROB2690
Airplane - Specs
Material
Full composite
Wingspan (mm)
1800,00
Model Length (mm)
1040,00
Take-off Weight (g)
725,00
Airplane - Functions
Controls
Rudder
Flaps
Motor
Ailerons
Elevator
Required Radio (Not included)
Min. 6 Channel
Airplane - Power System
Power System
Robbe - Ro-Power Torque X36-800 built-in Brushless Motor (Included)
Propeller / EDF
Not Included (See Needed to complete)
Speed Controller - ESC
Not Included (See Needed to complete)
Required Battery (Not included)
Li-Po 4S - 3300 - 4000mAh - Min. 35C
Airplane - Electronics
Receiver
Not Included
Qty of Servos
6x Servos | (Not Included | See Needed to complete)
