XFly
XF111P
Model scaled up the T-7A 64mm EDF jet to make an 80mm version with the same care and attention to appearance and performance. The T-7A 80mm EDF jet is packed full of scale details including molded-in panel lines, simulated antenna, pitot tube, clear canopy, removable missiles plus drop tank and more. Featuring the functional LED navigation and landing lights, full-flying horizontal stabs, sequenced gear doors, scale retractable CNC metal landing gears and operational flaperon setting, this larger version can bring you unexpected scale-like flying experience!
With a 6S Lipo battery, the high-power 80mm EDF with 12-blade fan, 6S-compatible brushless inrunner motor and 100A ESC deliver fantastic top speed and vertical performamce plus amazing turbine-like sound. With stability it's a scale jet that flies smooth and handles like a sport jet. Integrated wing connectors and glueless design facilitate fast and easy assembly, so you can get the 80mm T-7A airborne in less than one hour.
Features
Technical Specifications
Content
XFly T-7A Red Hawk 80mm EDF JET PNP
Required
Type of kit: | PNP |

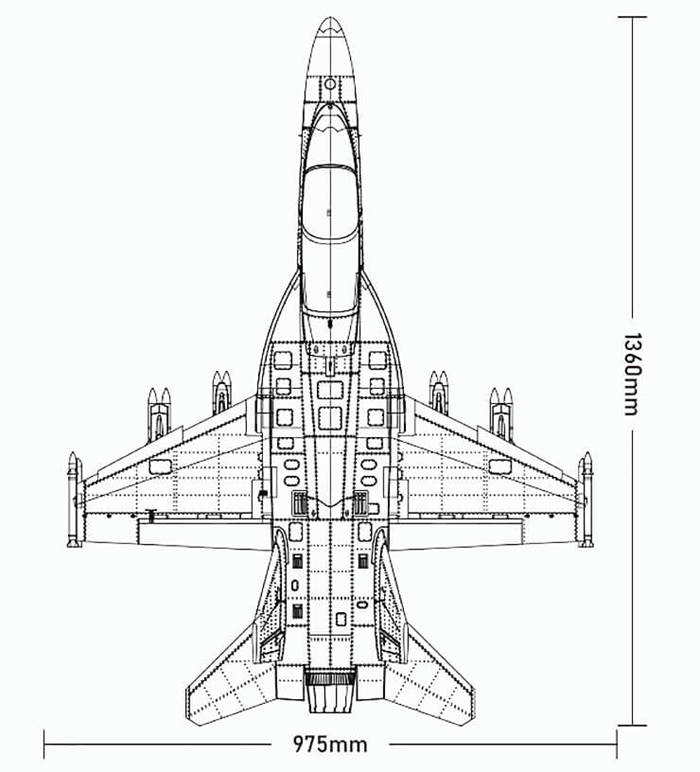

Wingspan (mm): | 975mm / 38.4in |
Length (mm): | 1360mm / 53.5in |
Flying weight (gr) | environ 3150 g |
Wing Surface Area: | 21.5dm² |
Wing Loading: | 146g/dm² |
CG (Center of Gravity) | Check manual |
Servos | 9g Servo*5, 13g Servo*5 |
EDF Diameter Class (mm): | 80 |
Blades: | 12 |
Turbine shroud | Synthetic |
EDF Rotor | Synthetic |
Power System | Brushless 3280-KV2200 |
Turns/min/Volt (Kv): | 2200 |
Motor Type: | In-Runner |
Motor Diameter (mm): | 32 |
Electronic Speed Control | 100A Hobbywing - 5A UBEC |
Battery Type | LiPo-Accu |
Battery Cells: | 6s - 22.2v |
Discharge Rate (C): | 35c |
Battery Capacity (mAh) | 4.000 mAh, 5.000 mAh |
Connection: | EC-5 |
Surfaces | Ailerons, Elevator, Rudder, Flaps |
Landing Gear | Retractable suspended gear |
Lights | Navigation lights |
Material | EPO Foam, ABS |
Build time | 15 minutes |
Required Radio | 5 channels minimum |
Recommended pilot skill level | Intermediate, Advanced |
