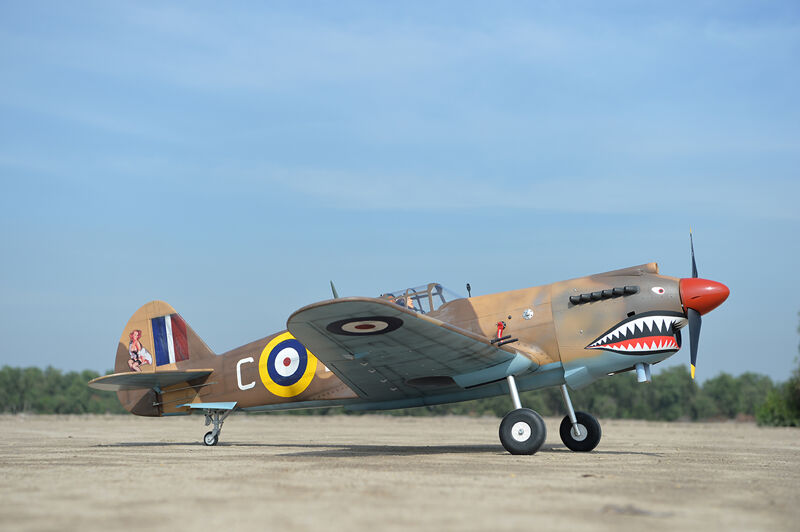

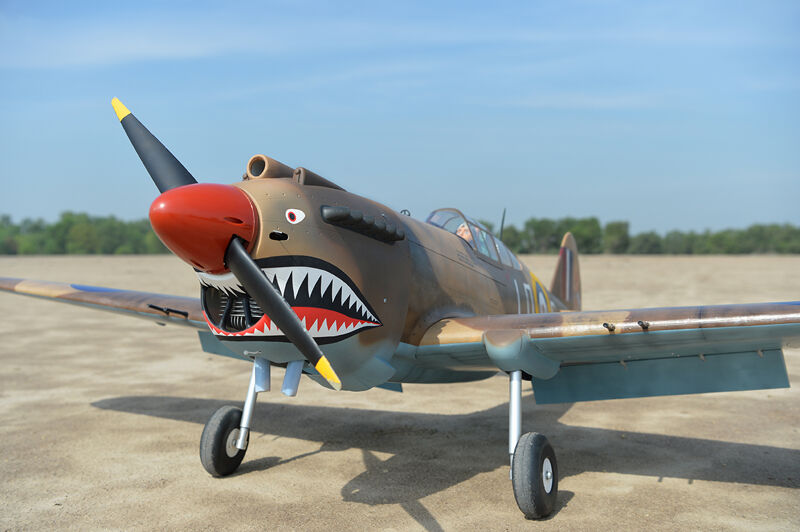

Black Horse Model - P-40C Tomahawk 50-60CC 2276mm ARF Kit (With Electric Retracts)
Black Horse Model
BH161A
Article disponible sur commande auprès du fournisseur
Cet article n'est pas en stock ; il sera commandé pour vous auprès de notre fournisseur. Le délai de livraison dépend de la disponibilité chez le fournisseur.
€ 1.399,00€ 1.156,20 TVA excl.
The Curtiss P-40C Tomahawk is a World War II-era fighter aircraft developed by Curtiss-Wright Corporation. It is an early variant of the P-40 Warhawk series, known for its distinctive shark mouth nose art. The P-40C features an all-metal construction, low-wing design, and retractable landing gear. It is powered by an Allison V-1710 V-12 engine, providing a top speed of around 345 mph. Armed with two .50 caliber machine guns in the nose and two .30 caliber machine guns in the wings, the P-40C was used primarily by the United States Army Air Corps and allied forces for both air-to-air combat and ground-attack missions. Its rugged design, good diving characteristics, and reliability made it a valuable asset in early WWII combat theaters.
SPECIFICATIONS:
Wingspan: 2276mm
Length: 1968mm
Weight: 10.8kg
Wing area: 90.14dm2
Wing loading: 120g/dm2
Servo mount: 42x21mm
Spinner size: 115mm (Include)
Main gear type: Rotary 90 degree electric retract gear with oleo struts for main gear (included).
Tail gear type: Electric retract gear with oleo struts for tail gear (included).
Parts listing required (not included):
Radio: 7 channels
Servo: 9x size: 40x20x38mm - Standard high torque servos
Engine: 50-60cc gas
ELECTRIC Motor: Brushless outrunner 5000-6500W/230KV
Propeller: Suit with your engine
Electric Conversion (not included):
Motor: ”50cc”
LiPo: 12S 5500-6000mAh
Receiver battery: 6.0V- 7.4V 2600-3200mAh
ESC: 120A
General Info
Brand
Black Horse Model
Item Nr
BH161A
Airplane - Specs
Material
Wood
Wingspan (mm)
2276
Model Length (mm)
1968
Take-off Weight (g)
10800
Airplane - Functions
Controls
Motor
Elevator
Ailerons
Retractable Landing Gear
Flaps
Rudder
Required Radio (Not included)
Min. 6 Channel
Airplane - Power System
Power System
Not Included (See Needed to complete)
Propeller / EDF
Not Included (See Needed to complete)
Speed Controller - ESC
Not Included (See Needed to complete)
Required Battery (Not included)
Li-Po 12S - 5500/6000mAh - Min. 25C
Airplane - Electronics
Receiver
Not Included
Qty of Servos
9x Servos | (Not Included | See Needed to complete)
