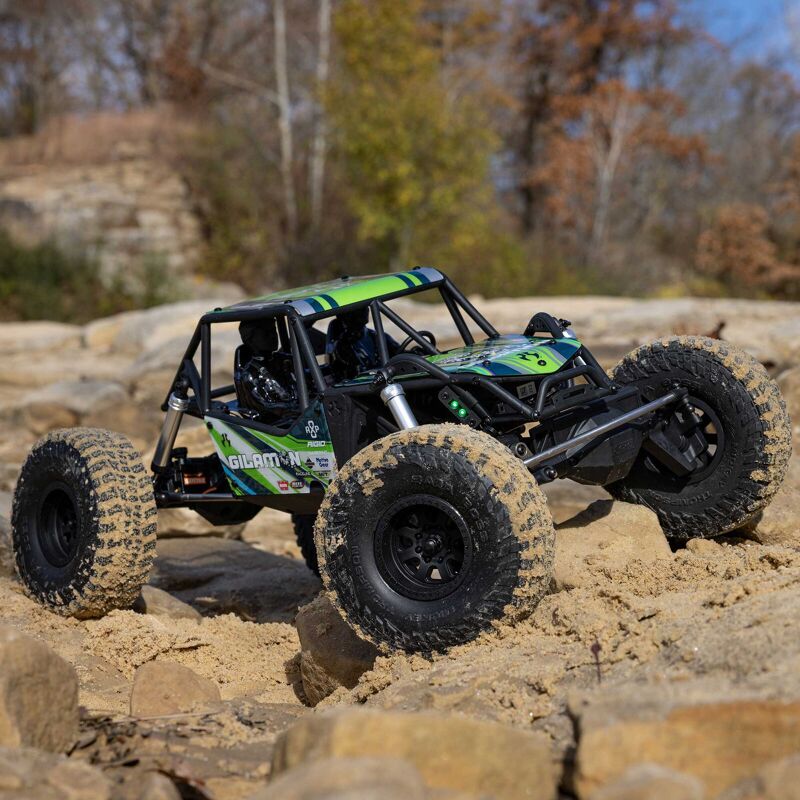

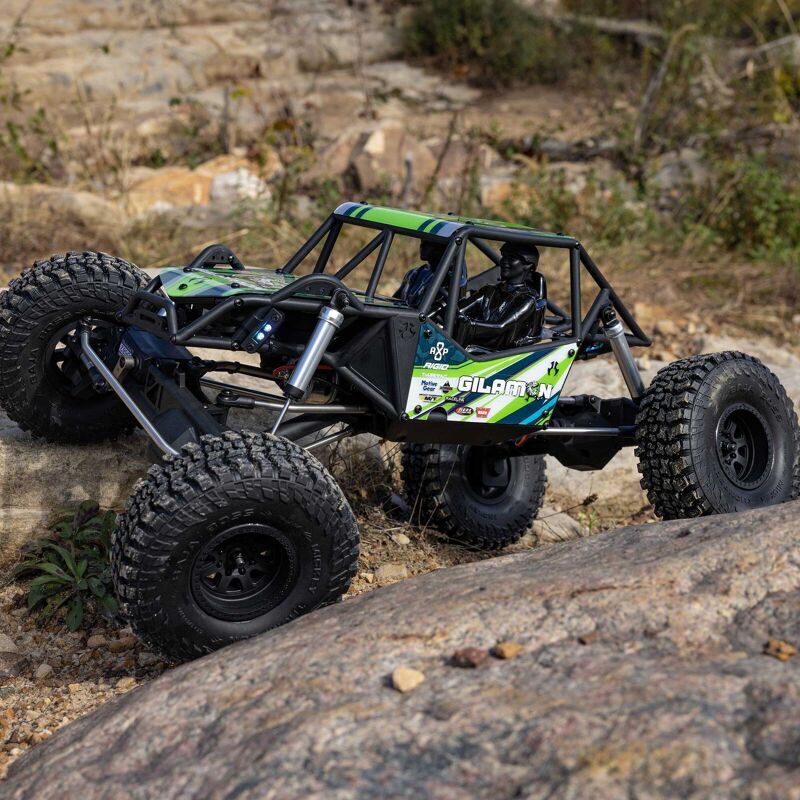

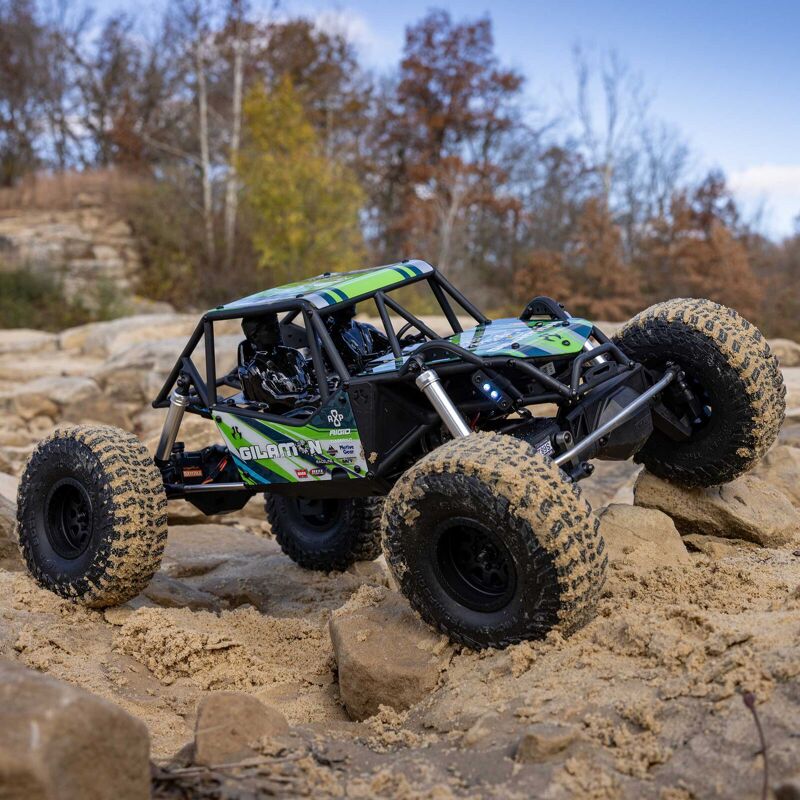

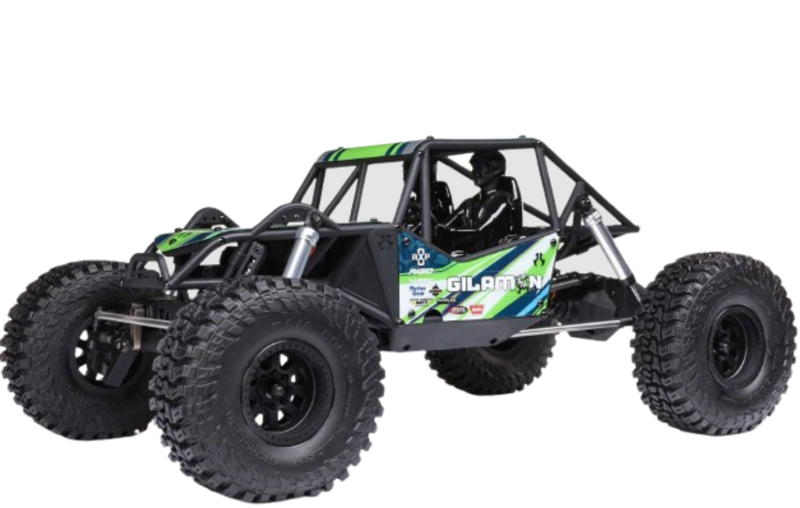

Axial AXP8 Gilamon 4X4 RC Trail Buggy Overview

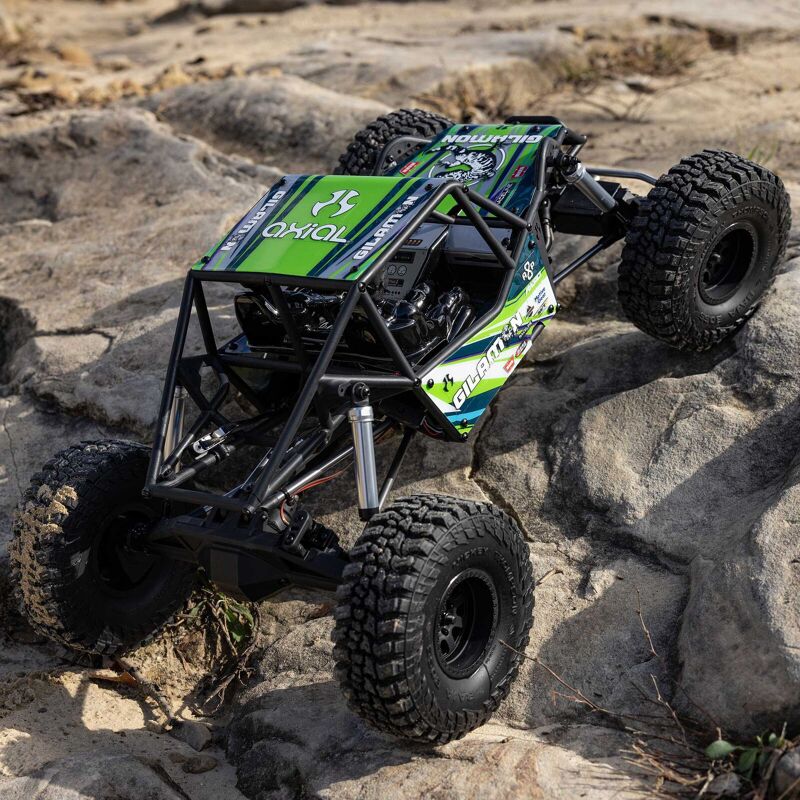

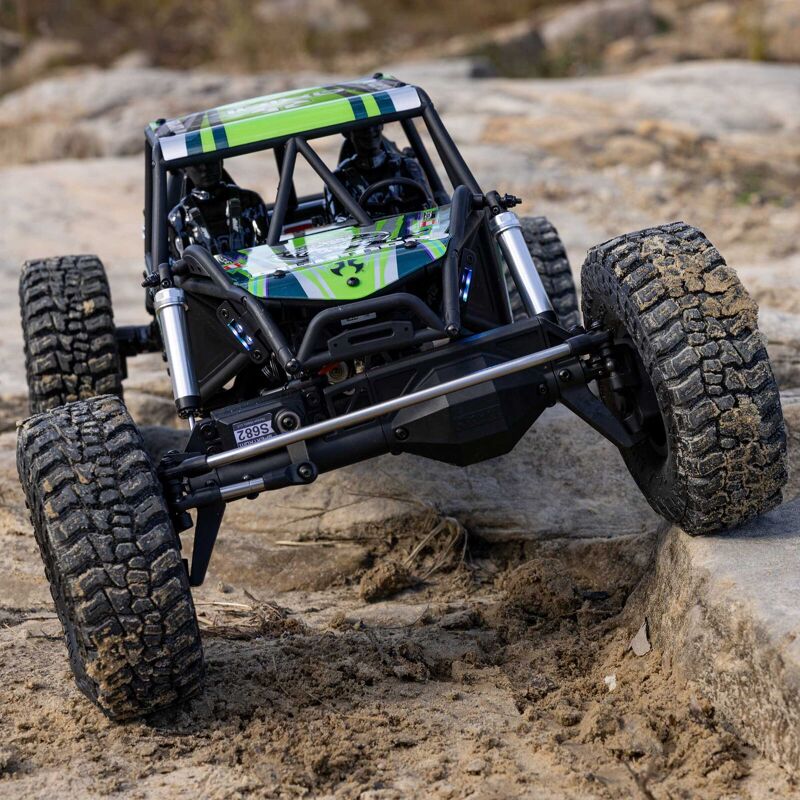

The wait is finally over! With the introduction of the AXP8 Gilamon 2.2 RTR, Axial brings you the next level in RC rock crawling performance. This is the most innovative and maneuverable rig you’ve ever laid eyes on, designed to push your limits and redefine what an RC crawler can do.

The Gilamon is a true rock crawler – it’s not built for overlanding or leisurely “Sunday” drives. Equipped with a 2.2-inch wheel setup and the groundbreaking AXP8 platform, this RC crawler dominates even the toughest trails and obstacles. Thanks to the Ready-to-Run (RTR) setup, you can jump right in, regardless of your experience level. And if you’re an experienced trail enthusiast, you’ll be blown away by the capabilities you now have at your fingertips – things that were previously impossible are now within your reach.

So, what makes the AXP8 Gilamon so revolutionary? Let's start with the heavy-duty, high-clearance AF16P portal axles in both the front and rear – and specifically, the rear-axle ASD (Axial Selectable Drive). This unique drivetrain system is a more advanced, highly capable version of traditional cutting brakes. While cutting brakes only lock a wheel based on the brake's strength, the ASD physically locks the wheel completely, making it more effective than cutting brakes. Unlike front dig, which locks the entire axle, ASD allows you to lock either of the rear wheels individually. This gives you an even tighter turning radius, drastically improving maneuverability.

The AF16P front axle and the advanced AT6 transmission are designed to accommodate optional ASD setups, offering you unparalleled vehicle control. You can control the ASD system through a 3-position switch on your transmitter, activating locking or constant 4WD functions, or use a 5-position switch to configure the ASD system to drive, free wheel, or lock. This level of sophistication is unprecedented in RC crawlers.

The AT6 transmission also comes with a 30% underdrive to the rear axle, enhancing climbing ability and maneuverability. Complementing the performance is the extreme articulation provided by the 4-link suspension and the added clearance of the realistic IS10 internal spring shocks.

The oversized Axial Boulder 550 21-turn brushed motor sends power to durable WB12 driveshafts, which in turn power the officially licensed Raceline Avenger wheels and 5.5-inch tall Mickey Thompson Baja Boss M/T tires. All of this is encased in a durable composite cage that not only protects your rig but also gives it that rugged, challenge-ready look.

With the included Spektrum DX3 radio and Firma 70A ESC, you’ll have access to the telemetry benefits of Smart technology. Other high-quality, factory-installed Spektrum electronics include the SR515 5-channel DSMR receiver, the S682 metal gear steering servo, and the SX117AX metal gear micro servo for the ASD function. Simply add your choice of recommended battery and charger, and you’ll be ready to take on any trail, obstacle, or challenge.

Get ready to experience where no crawler has gone before with the Axial AXP8 Gilamon 2.2 RTR. It’s the king of the hill, the trail, the canyon, the ledge – and everything off-road! At Aerobertics, we’re excited to offer this revolutionary RC buggy to our community, bringing unparalleled performance and next-level maneuverability to all RC enthusiasts.

ASD (AXIAL SELECTABLE DRIVE)

Expand your strategies for overcoming obstacles with the Gilamon trail buggy’s ASD (Axial Selectable Drive), a more advanced and highly capable drivetrain version of cutting brakes. While cutting brakes are only as strong as the brakes themselves, ASD physically and completely locks a wheel. As it’s set up out of the box, you can lock either of the rear wheels for a tighter turning radius. The front axle and transmission also accept optional ASD setups.

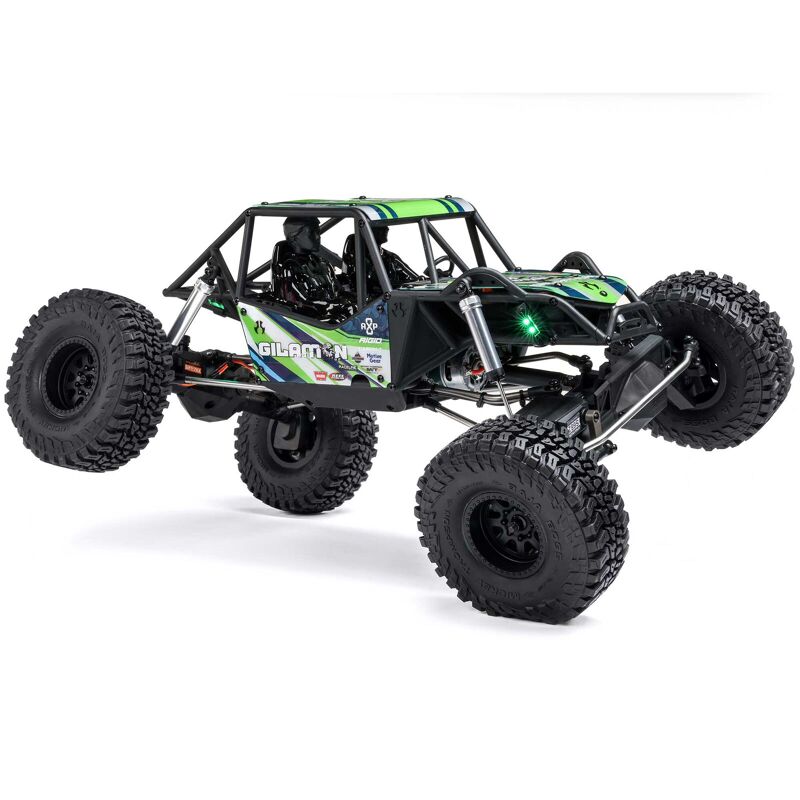

TRAIL BUGGY DESIGN

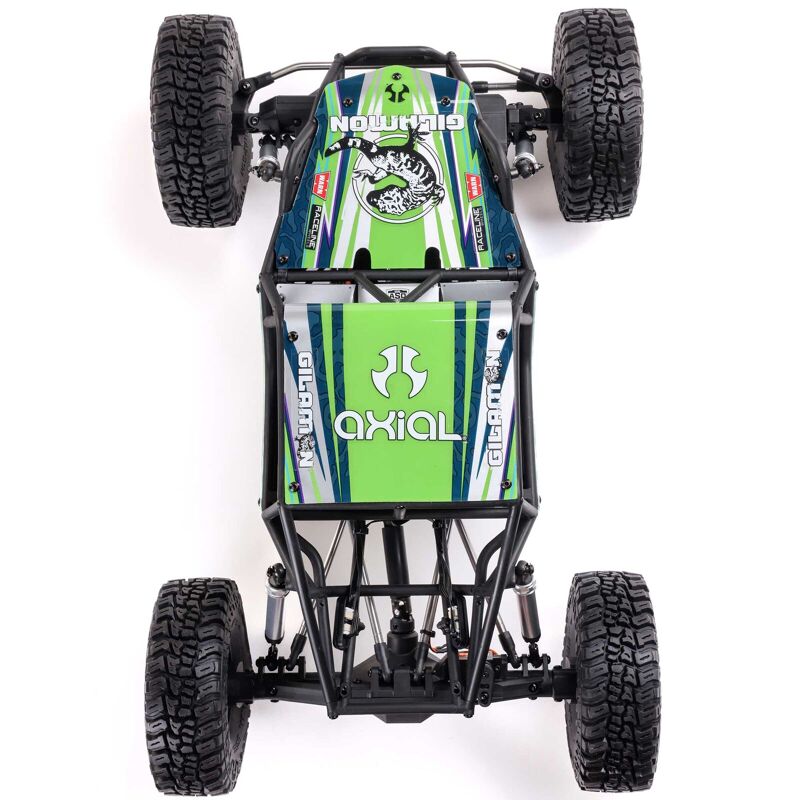

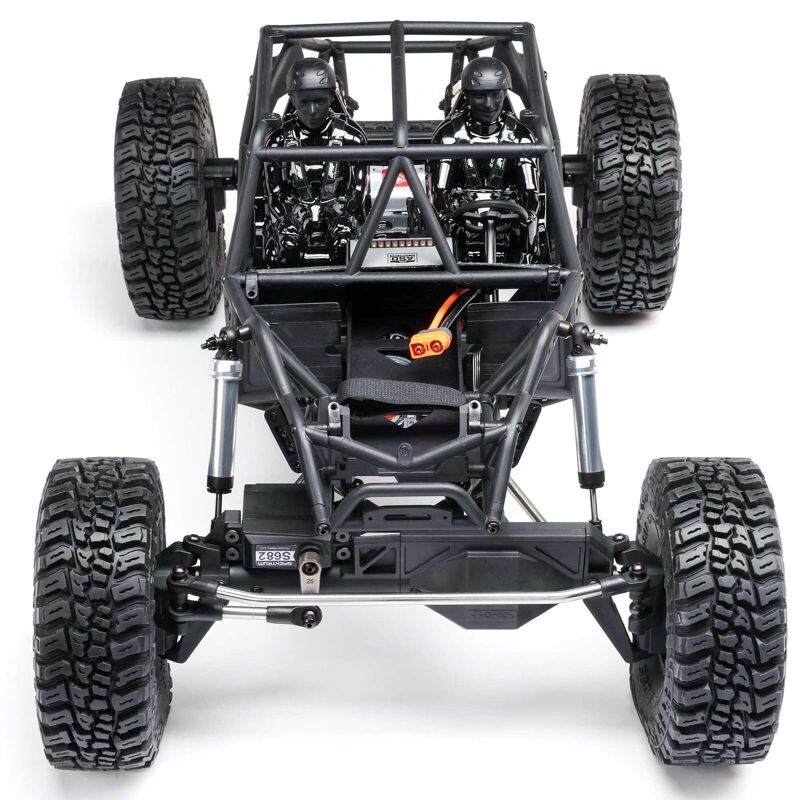

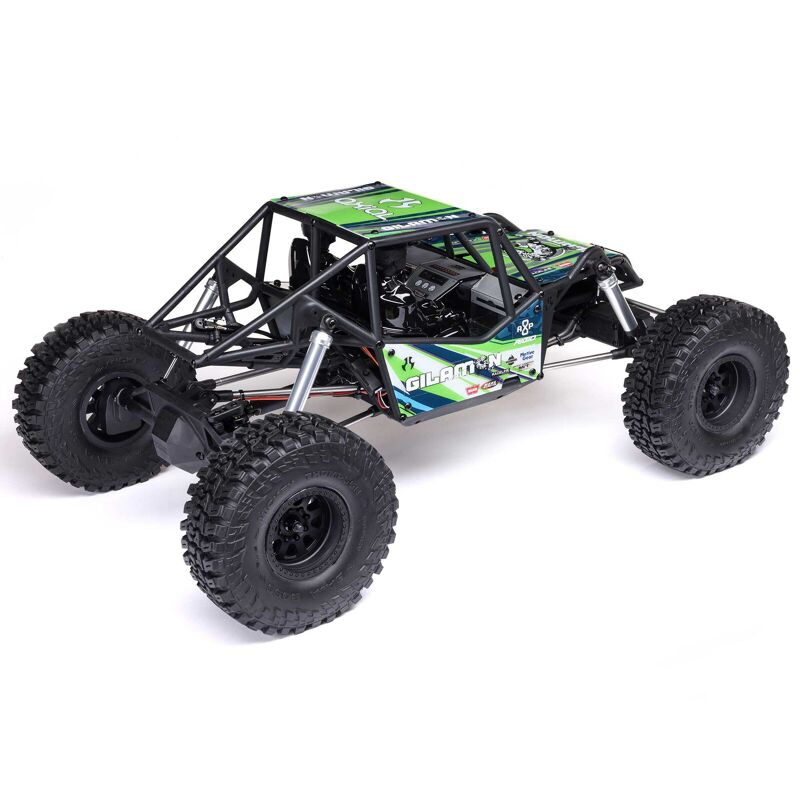

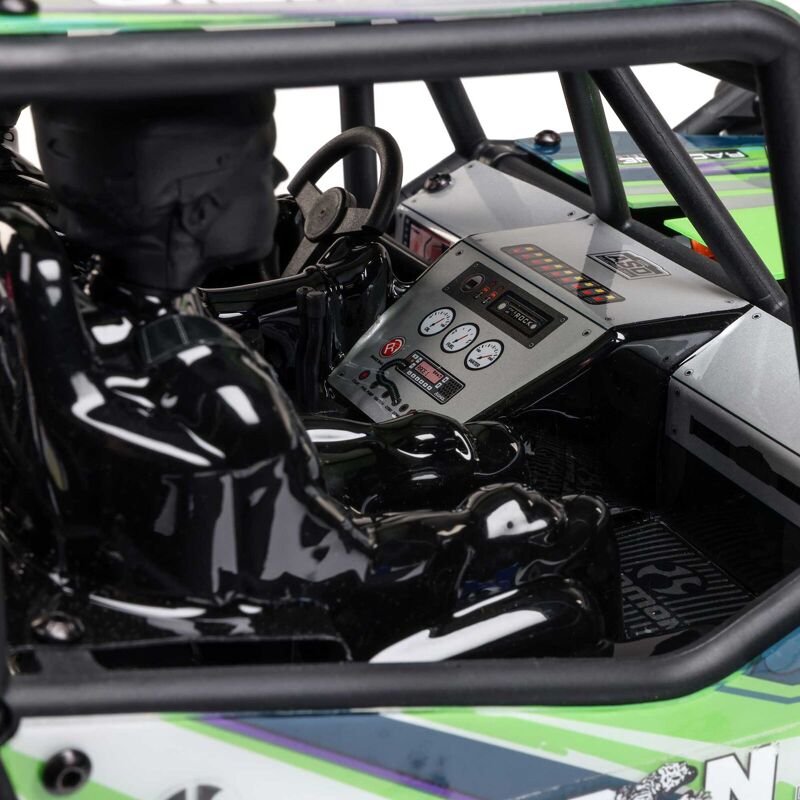

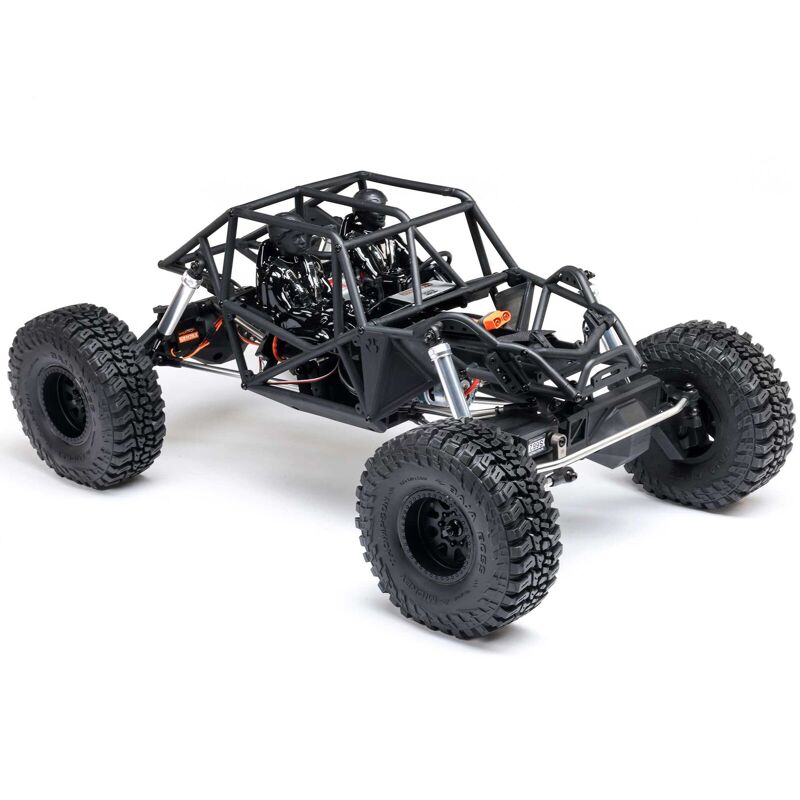

The Gilamon has a durable, realistically detailed composite cage with Lexan body panels for protection and challenge-ready trail buggy looks. The rig comes factory-finished and is available in your choice of two color options.

AT6 TRANSMISSION

Axial puts the emphasis on durability and versatility with its all-new AT6 transmission. The transmission includes a 30% underdrive to the rear axle that dramatically improves climbing and increases maneuverability. It’s also designed to accept optional ASD (Axial Selectable Drive) setups for an unprecedented level of vehicle control.

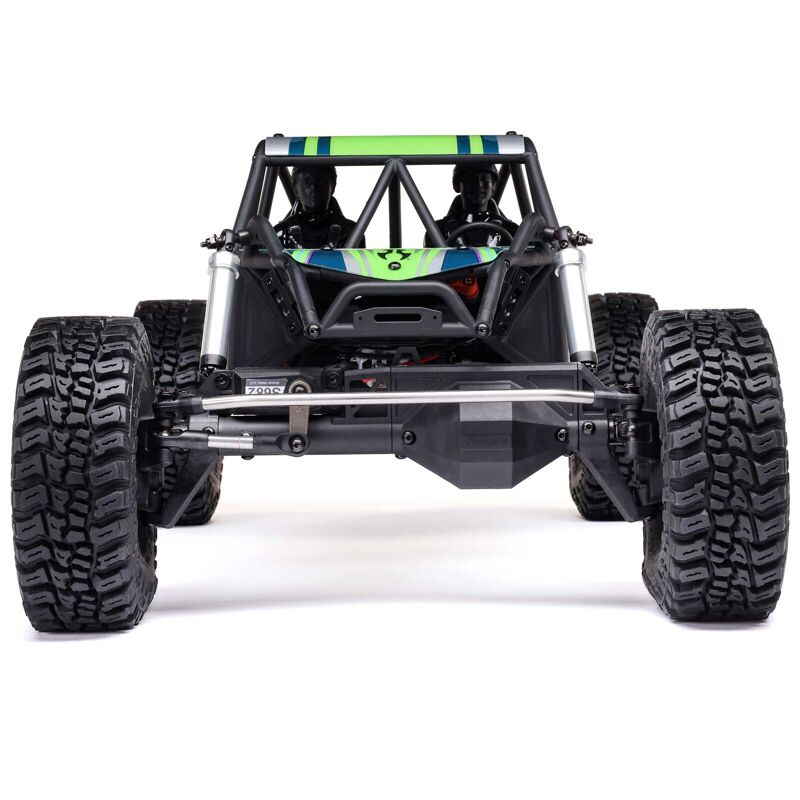

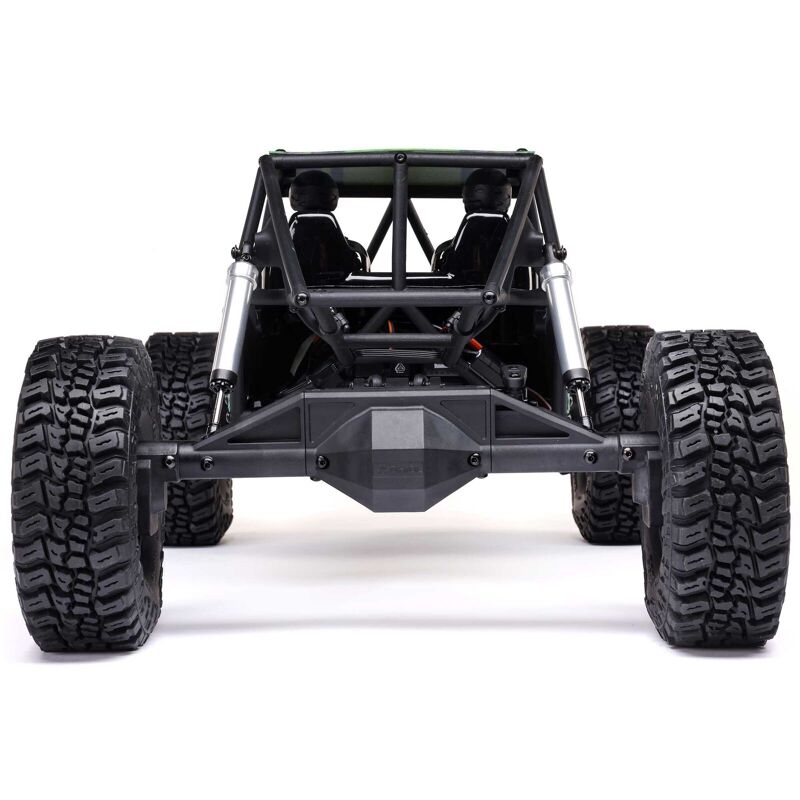

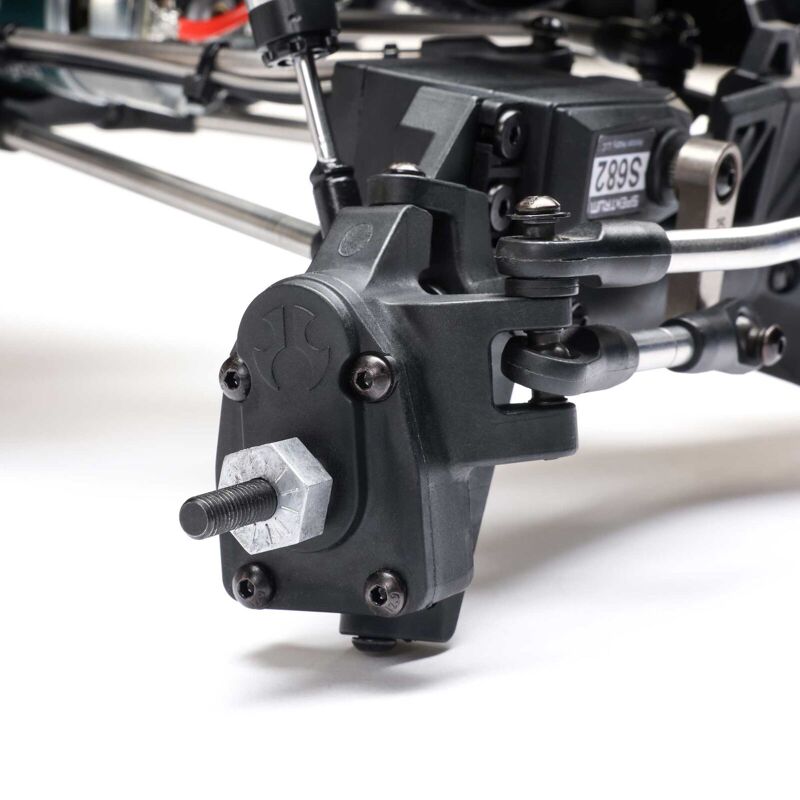

AF16P PORTAL AXLES

Heavy-duty, high clearance AF16P portal axles are among the design innovations that increase maneuverability for success on challenging trails. The rear axle comes with ASD (Axial Selectable Drive) function installed, and the front axle is ASD compatible.

WATERPROOF SPEKTRUM ELECTRONICS

The high-quality, waterproof Spektrum on-board electronics are ideal for crawling in any conditions. The Spektrum S682 metal gear steering servo has the industry standard 25-tooth spline count and an aluminum servo horn for strength. A Spektrum SX108 metal gear micro servo is included for the ASD (Axial Selectable Drive) system.

AXIAL BOULDER 550 BRUSHED MOTOR

A big rig like the Gilamon needs a big motor. The oversized, factory-installed Axial Boulder 550 is longer than a typical 540 motor, providing more torque and greater durability. The 21-turn design offers the perfect blend of power and wheel speed.

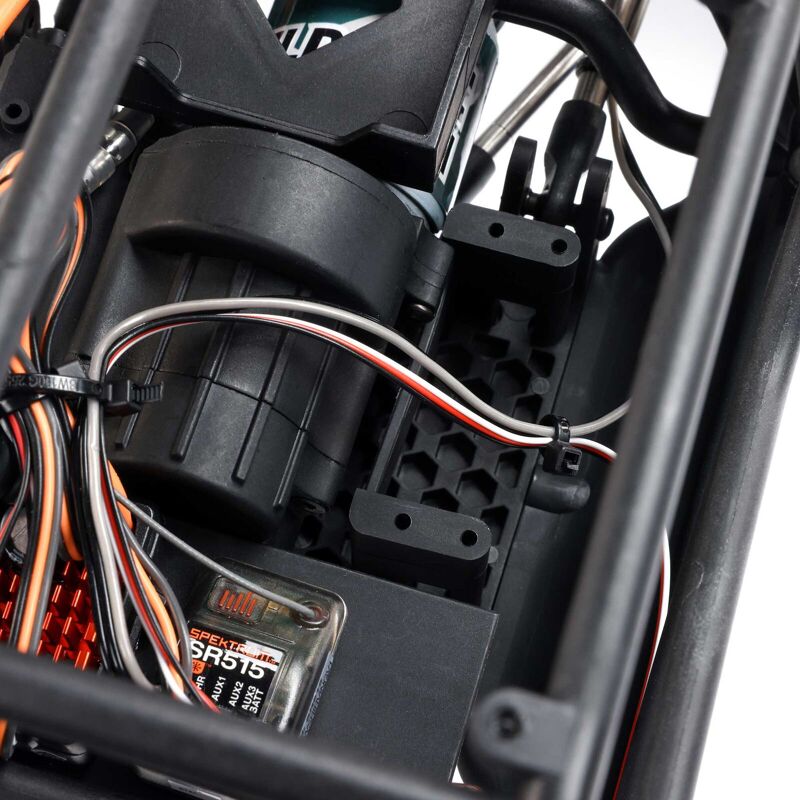

SPEKTRUM SMART TECHNOLOGY

The included Spektrum DX3 Smart transmitter, SR515 5 channel receiver, and Firma 70A Smart ESC are ready to deliver the telemetry advantages of Smart technology. Install a Spektrum Smart LiPo battery and you’ll be able to follow vehicle battery capacity on the transmitter's voltage level indicator.

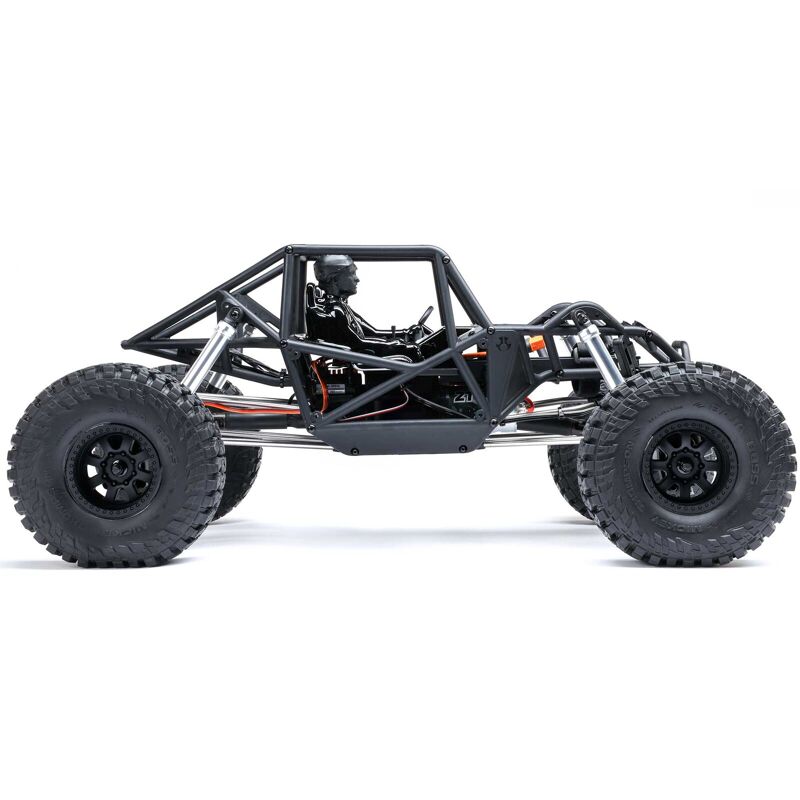

IS10 INTERNAL SPRING SHOCKS

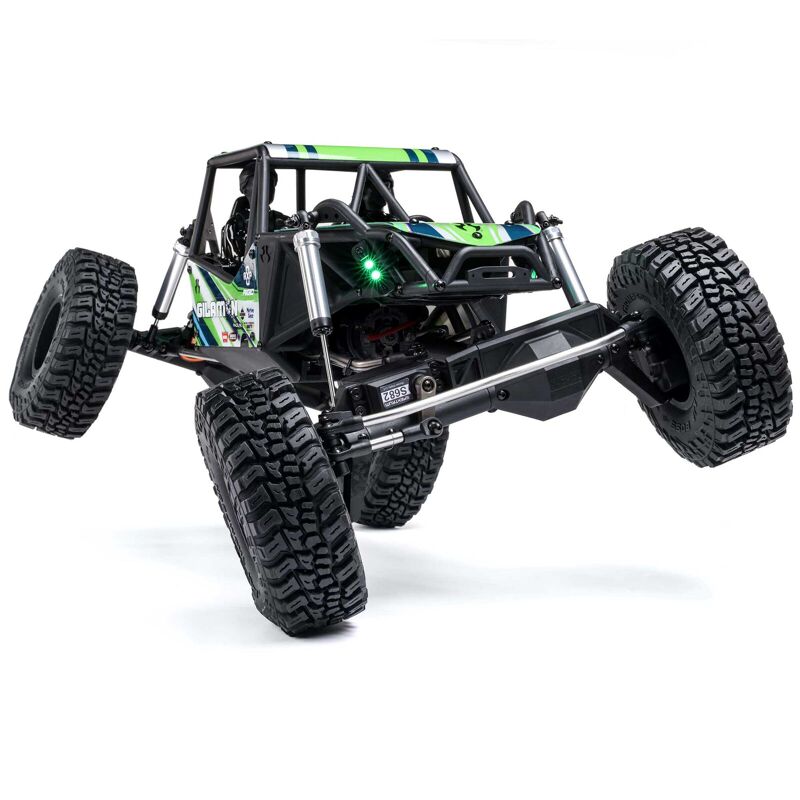

The Gilamon features all-new, aluminum body, internal spring IS10 shocks that increase ground clearance and scale realism. Its smooth, high-flex 4-link suspension geometry reduces the effects of torque twist and provides consistent articulation without the bump steer found in 3-link designs.

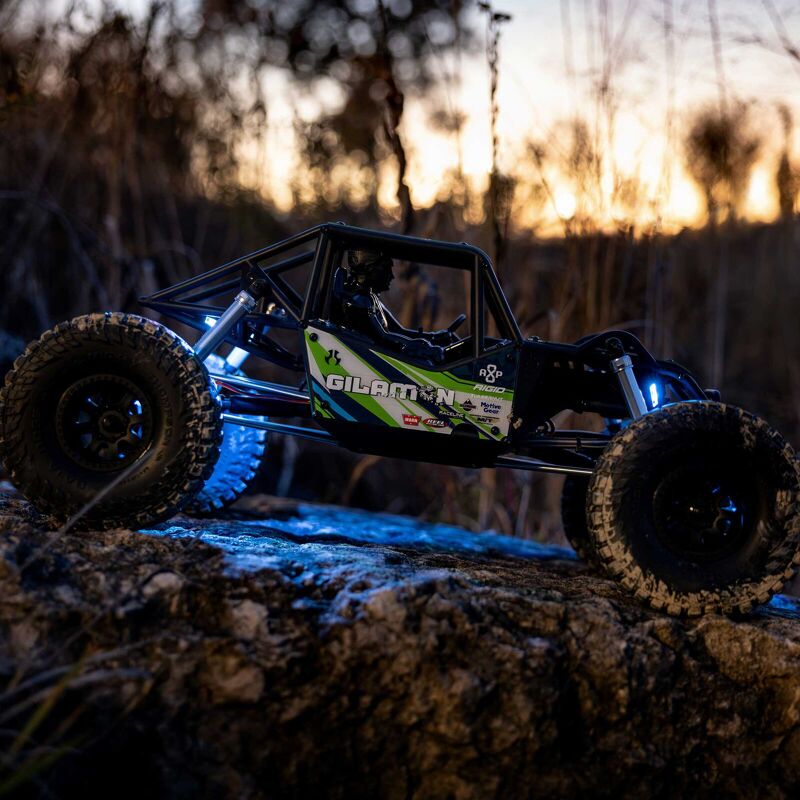

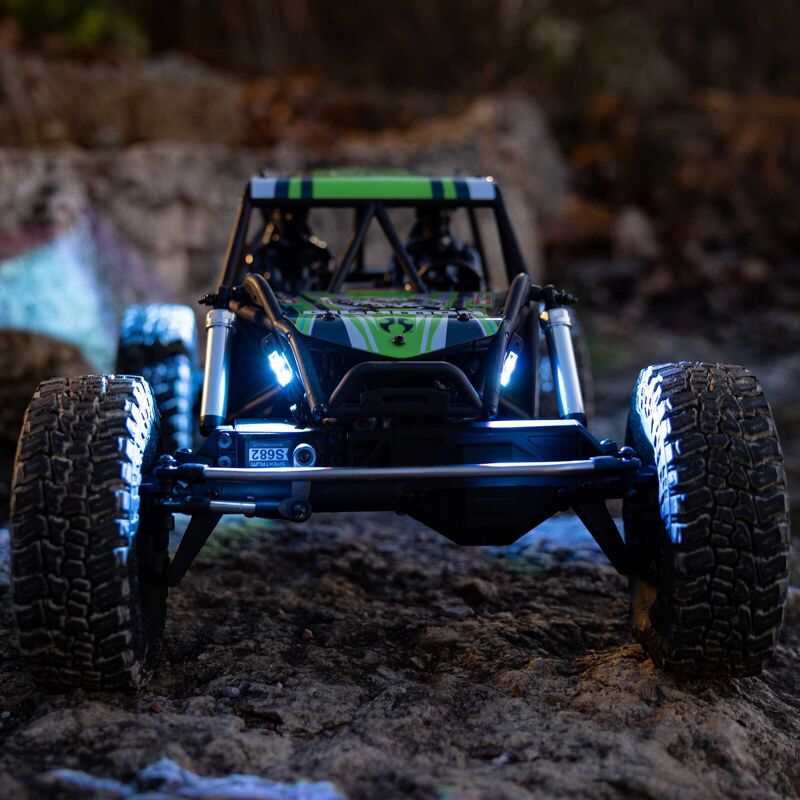

LED ROCK LIGHTS

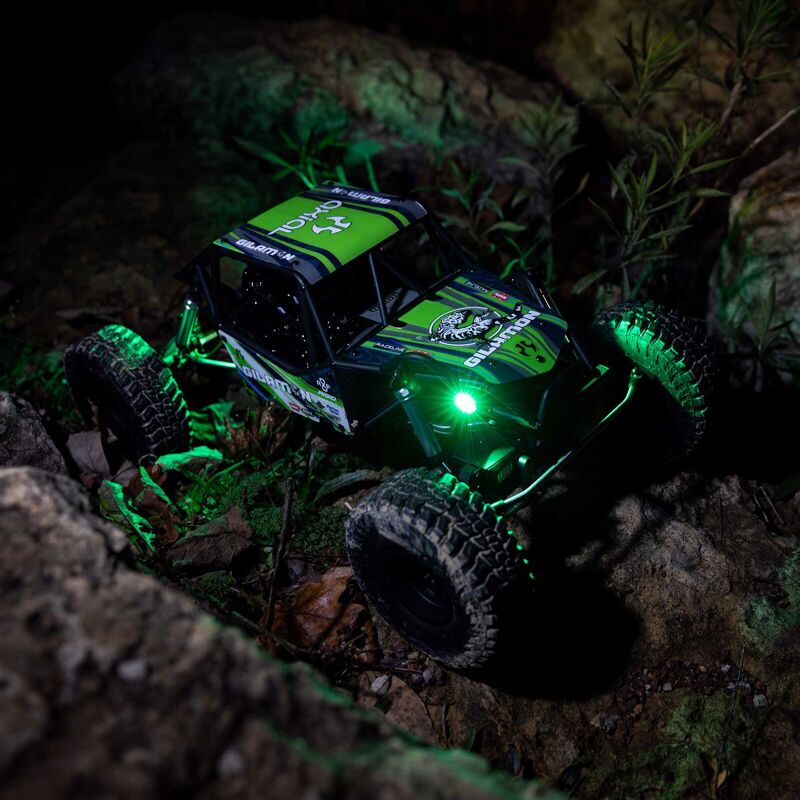

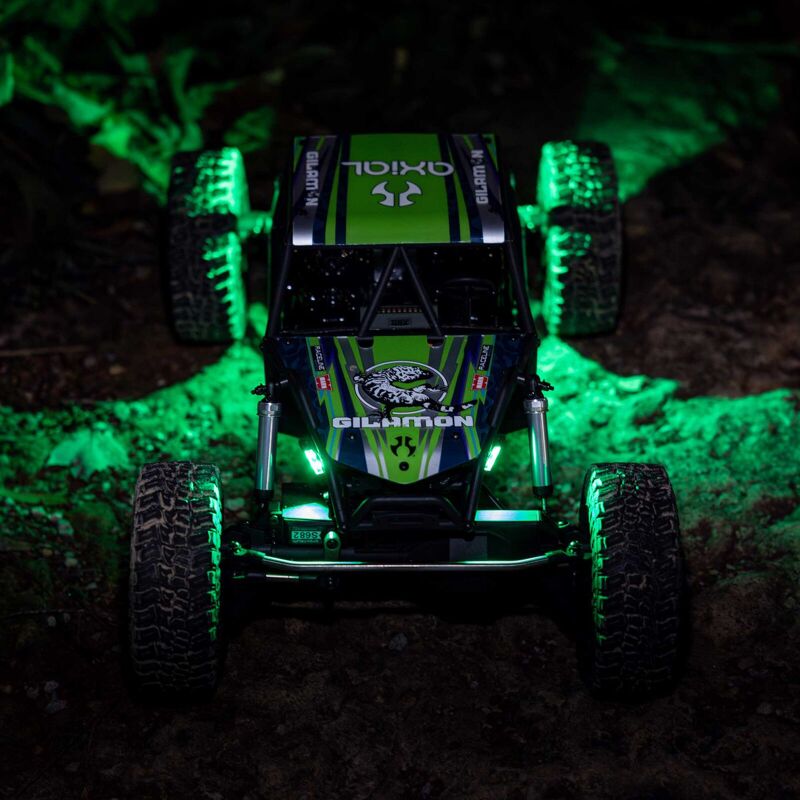

For nighttime crawling, preinstalled LED rock lights illuminate each wheel. Housed in rugged cases, the bright LEDs are clamped to the cage, which allows the lights to be moved. Multiple colors add clarity for crawling and style.

WB12 DRIVESHAFTS

Heavy-duty WB12 front and rear driveshafts offer the durability needed to withstand the abuse of crawling over rocks and rugged trails.

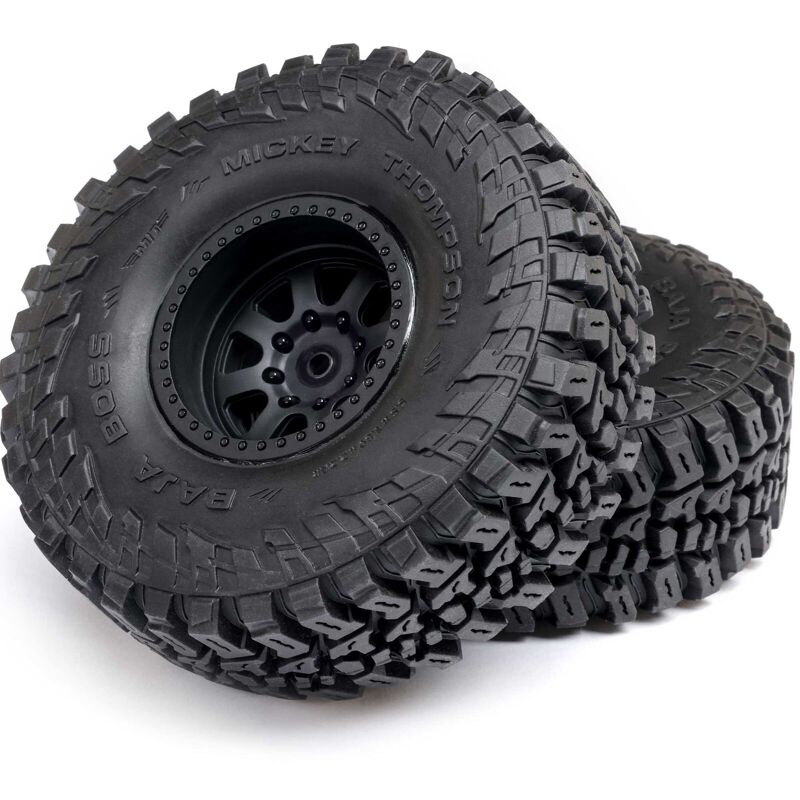

OFFICIALLY LICENSED MICKEY THOMPSON TIRES

The Gilamon rides on 5.5 inch tall, officially licensed Mickey Thompson Baja Boss M/T 2.2 tires. They look authentic and supply the aggressive traction needed to climb over and conquer any obstacle.

OFFICIALLY LICENSED RACELINE AVENGER 2.2 WHEELS

The classic 8-spoke design of these officially licensed Raceline Avenger 2.2 wheels adds to the Gilamon rig’s authentic scale trail buggy looks.

Axial AXP8 Gilamon 4X4 RC Trail Buggy Features:

• Realistic scale trail buggy design
• Durable and detailed composite cage
• Innovative Axial Selectable Drive (ASD) cutting brakes
• Smooth, high-flex 4-link suspension
• Scale IS10 internal spring high-clearance shocks
• ASD-equipped AF16P high-clearance rear portal axle
• ASD-compatible AF16P heavy-duty front portal axle
• Durable new ASD-compatible AT6 transmission
• 30% Underdrive to the rear axle
• Oversized Axial Boulder 550 21-turn brushed motor
• Heavy-duty WB12 front and rear driveshafts
• Officially licensed Mickey Thompson Baja Boss M/T 2.2 tires
• Officially licensed Raceline Avenger 2.2 wheels
• Spektrum DX3 Smart 3-channel 2.4GHz transmitter
• Spektrum SR515 DSMR 5-channel receiver
• Spektrum Firma 70A brushed Smart ESC
• Spektrum S682 25T metal gear steering servo
• Spektrum SX117AX metal gear micro servo (for ASD function)

Product Specifications:

• Approximate Assembly Time: No assembly required
• Ball Bearings: Full set
• Battery: Sold Separately
• Body: Lexan Panel
• Brakes: Integral with ESC
• Charger: Sold Separately

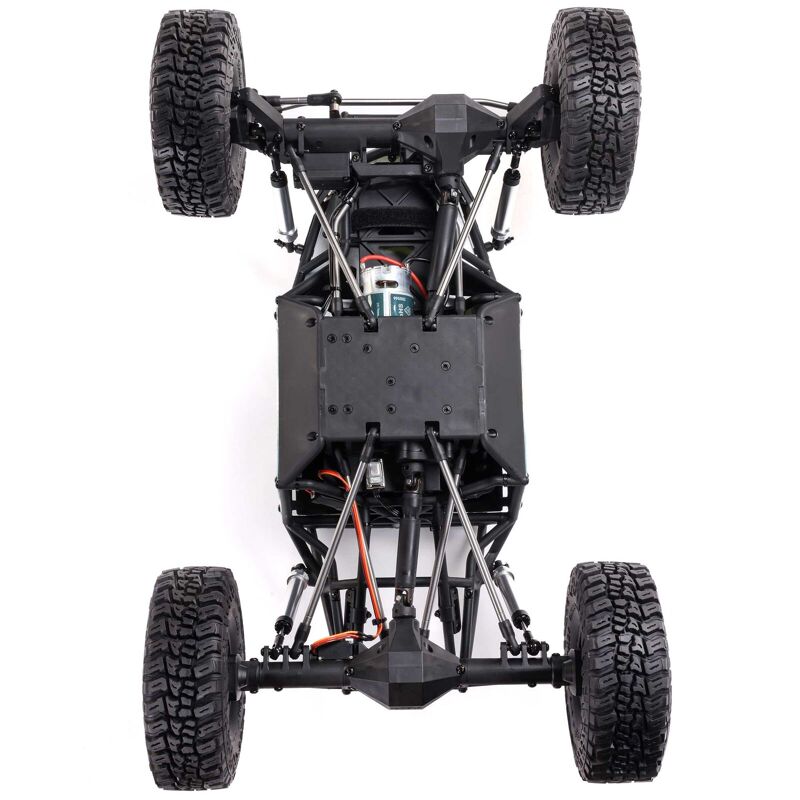

• Chassis: Composite tube frame
• Completion Level: Ready-To-Run
• Differential: Locked
• Drive Type: Forward/Reverse
• Drivetrain: 4WD
• Gear Pitch: 32P
• Lighting: LED
• LiPo Compatibility: 3S
• Motor Type: Brushed
• Pinion: 14T
• Power Type: Electric
• Product Height: 9" (229 mm)
• Product Length: 20" (508 mm)
• Product Weight: 7 lb (3.2kg)
• Product Width: 12.6" (320 mm)
• Receiver: Included
• Scale: 1/8
• Servos: Included
• Shock Type: Aluminum oil-filled internal spring
• Spur Gear: 34T
• Suspension: 4-link solid axle
• Tire Type: Mickey Thompson Baja Boss M/T 2.2
• Vehicle Type: Trail Buggy, Rock Crawler
• Wheelbase: 14.5" (368 mm)

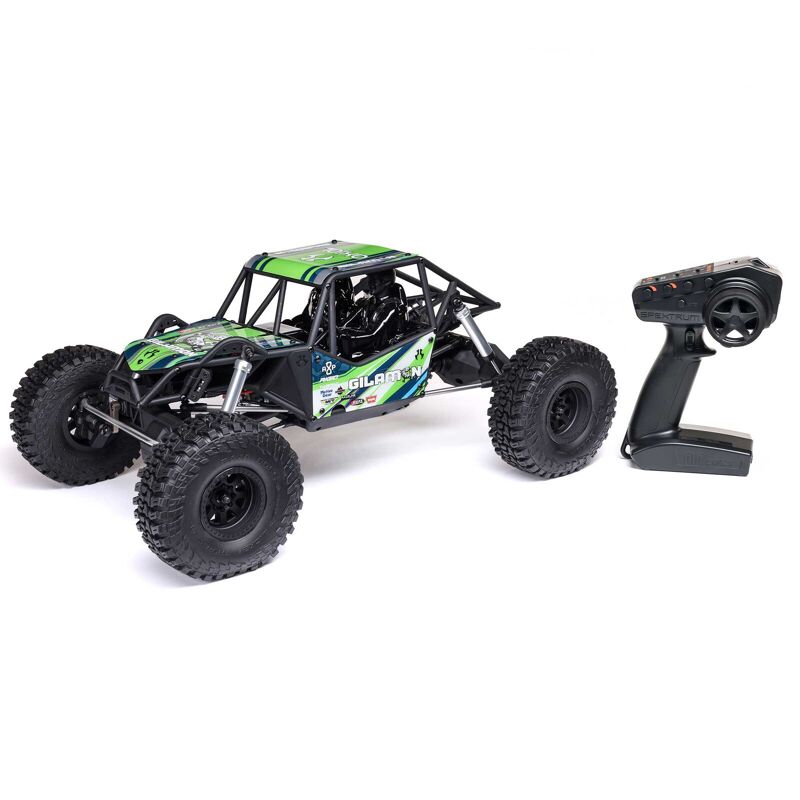

In The Box:

• (1) Axial AXP8 Gilamon 2.2 4X4 RTR
• (1) Axial Boulder 550 21T Brushed Motor (installed)
• (1) Spektrum S682 20kg Metal Gear Steering Servo
• (1) Spektrum SX117AX Metal Gear Micro Servo, for ASD function (installed)
• (1) Spektrum Firma 70A 1070 Brushed Smart ESC (installed)
• (1) Spektrum SR515 Receiver (installed)
• (1) Spektrum DX3 2.4GHz Transmitter
• (4) AA Alkaline Transmitter Batteries
• (1) Product Manual

Needed to Complete:

• (1) 2-3S LiPo Battery with IC3 or EC3 connector
• (1) Compatible Battery Charger

At Aerobertics, we're proud to offer you this top-tier RC trail buggy, designed for both seasoned enthusiasts and those eager to push their RC crawling skills to new heights! Ready for anything, the Axial AXP8 Gilamon is the ultimate tool for conquering the most demanding off-road challenges.
