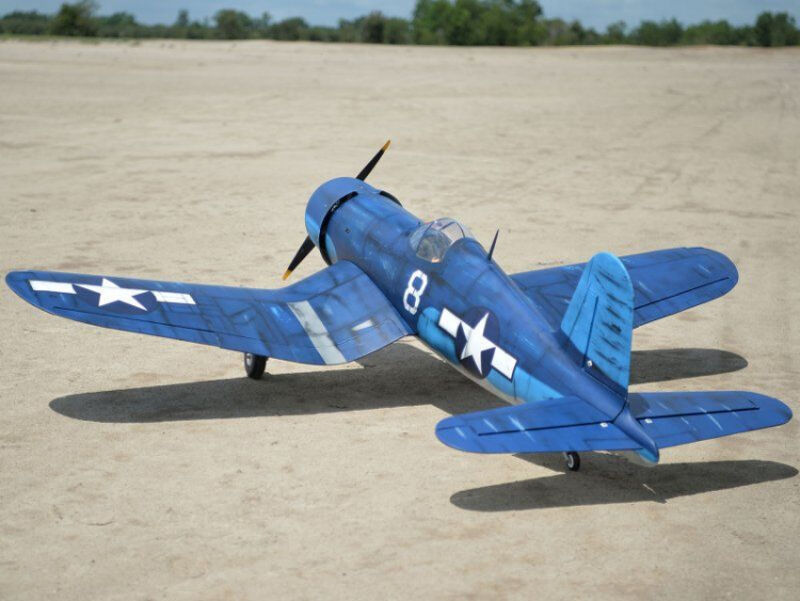

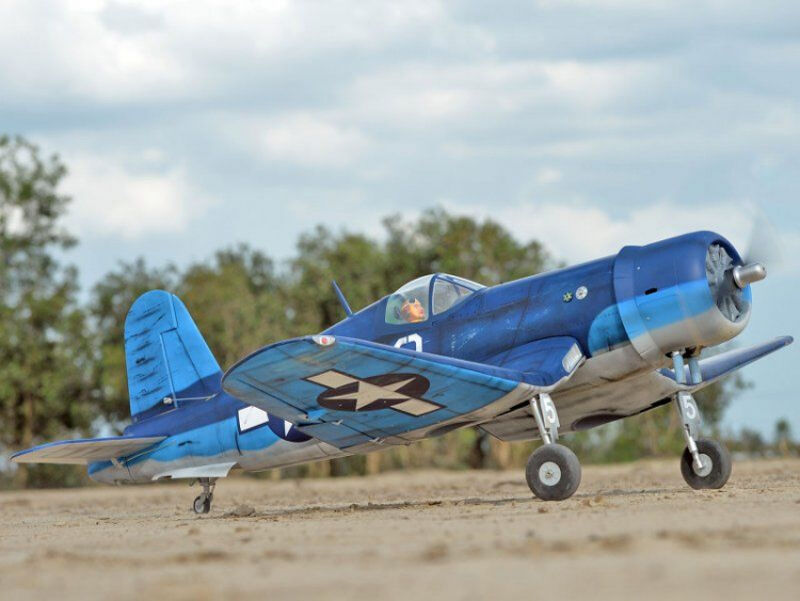

The world of 1/5th scale warbirds has suddenly become very affordable with the launch of the new, big, Black Horse Corsair. At 90 inch span this is a serious size model, but by careful use of laser cut, balsa and ply components, weight has been kept down to an amazing 18 1/2lbs. This low weight allows the use of affordable 50cc engines that are becoming so popular now. Fit a 62cc engine an you have real performance in the vertical.
The outline has been kept as close to scale as possible to keep the classic look 'all Corsair' as she grooves around the sky in a manner that only big models like this can. Black Horse made sure that the gull wing angle was correct as the easy option was never a consideration.
Not only are the multi-section flaps true to the original, there are air operated, twist and turn retracts included complete with functioning oleo legs. These are items that are nearly always a major additional cost in many models of this size, not so with Black Horse, they're there as standard! An air tank must be purchased separately.
For easy of transpotation, the individual wing sides can be easily removed.
Flying is so predictable and easy that you could even make her your first warbird. The stall is benign and she handles predictably and stabiliy at all speeds.
SPECIFICATIONS:
- Wingspan: 2280mm
- Length: 1800mm
- Weight: 9.6 - 10kg
- Wing area: 94.6dm2
- Wing loading: 101.5g/dm2
- Servo mount: 42x21mm
- Spinner size: Corsair style (not included)
- Wing type: Naca Airfoil

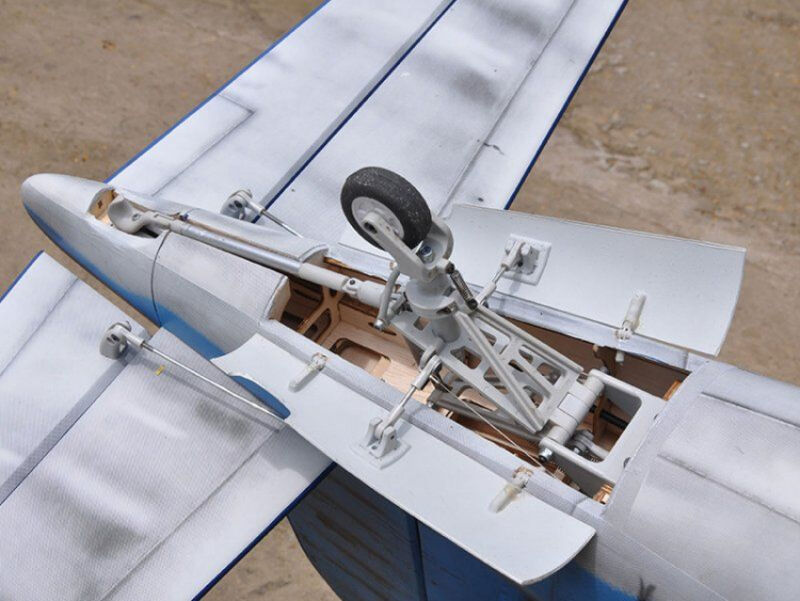

- Main gear type: Rotary 90 degree electric retract gear and CNC suspension metal struts (included)
- Tail gear type: Electric retract gear with CNC suspension metal struts (included)
Parts listing required (not included):
- Radio: 7 channels
- Servo: 9x size: 40x20x38mm - Standard high torque servos
- Engine: 55-65cc gas
- ELECTRIC Motor: Brushless outrunner 5000-6500W/230KV
- Propeller: Suit with your engine
Electric Conversion (not included):
- Motor: ”50cc”
- LiPo: 12S 5500-6000mAh
- Receiver battery: 6.0V- 7.4V 2600-3200mAh
- ESC: 120A
