Specifically designed for 14XX Series Sensored Motors, this package includes all the necessary components to replace the front endbell and ensure optimal performance.

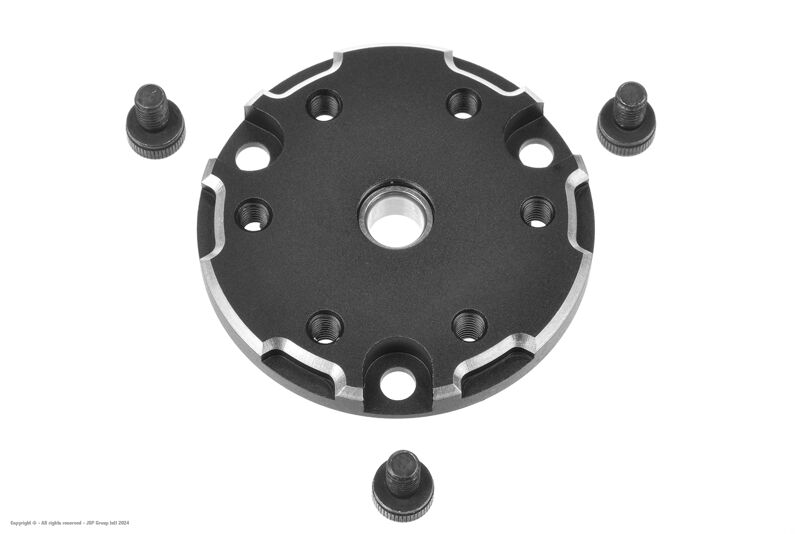

The package contains:
• Front Endbell with Ball Bearing
• Endbell Screws M3 x 5mm (Quantity: 3)
Installation Instructions:
1. Using a 2.5mm hex key, carefully remove the front endbell screws.
2. Gently pull the damaged endbell away, ensuring the shaft and endbell remain concentric. Rotating the endbell may assist in freeing it.
3. Replace the damaged endbell with the new one. The magnetic attraction between the rotor and stator will cause the rotor to shift, so
the endbell must be positioned to center it.
4. Apply removable threadlocker to the threads of the new screws and tighten them until snug.
By following these instructions, you can successfully replace the front endbell of your 14XX Series Sensored Motor. Ensure proper alignment and take care during the installation process for optimal performance.
