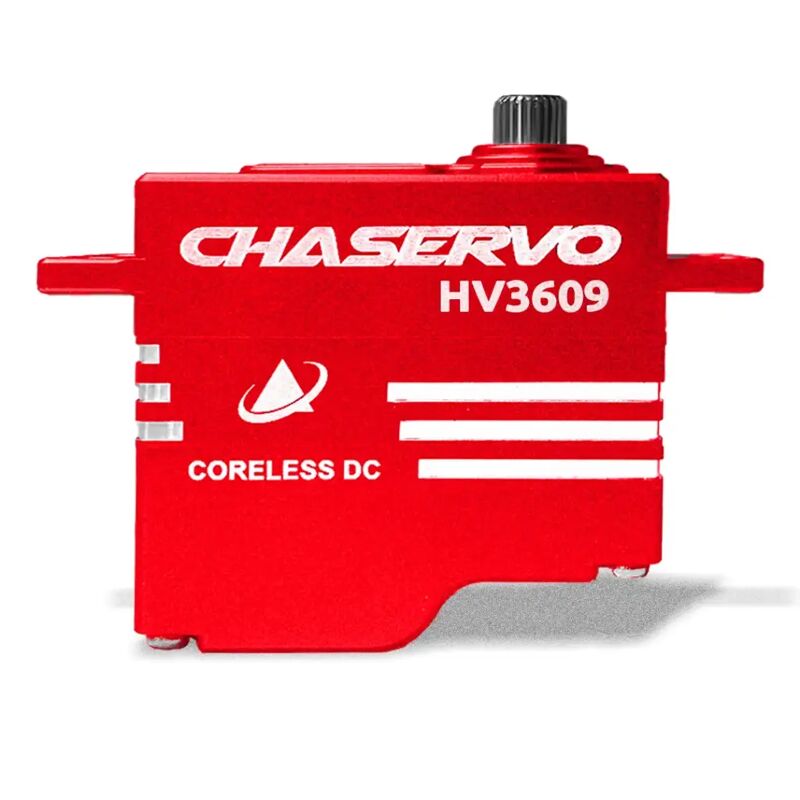

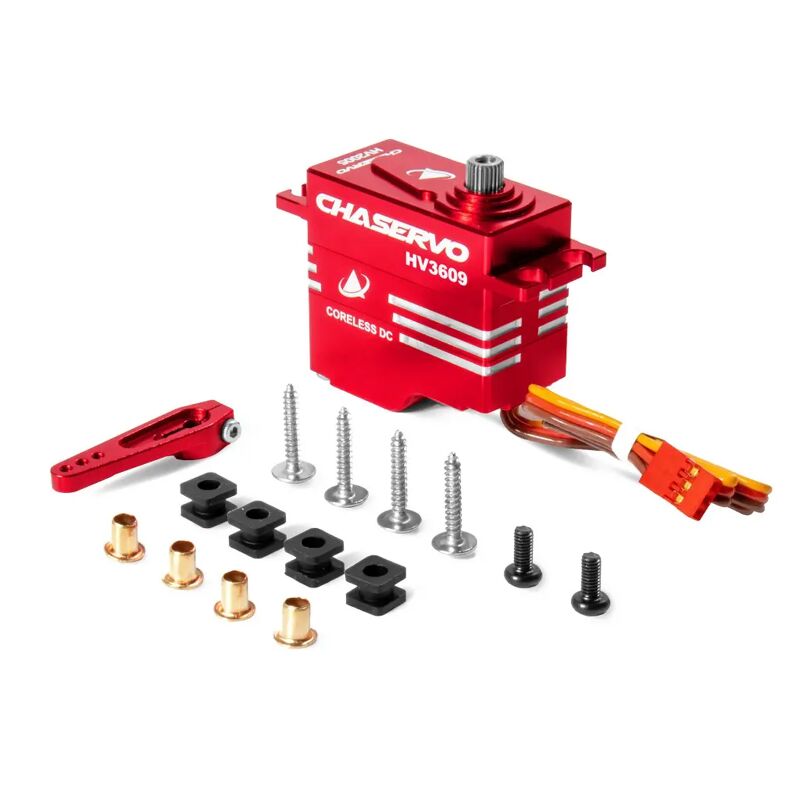

CHA Servo – High-Precision and Reliable Servo Motors for Optimal Performance, at Aerobertics
At Aerobertics, we offer CHA Servo motors designed to deliver exceptional precision, reliability, and efficiency in a wide range of industrial applications. Crafted for automation systems, our CHA Servo motors ensure optimal performance for tasks requiring accurate motion control, speed regulation, and torque management.
Key Features:
- High Precision: CHA Servo motors provide precise control over position, velocity, and acceleration, ensuring smooth, accurate operation for even the most complex automation systems.
- Durability: Built with premium materials and cutting-edge technology, our motors are designed for long-lasting performance with minimal maintenance.
- Energy Efficiency: Optimized for low power consumption, CHA Servo motors are an excellent solution for reducing energy costs while maintaining top-tier performance.
- Versatile Applications: Perfect for robotics, CNC machinery, packaging, textile machines, and a variety of other automated systems.
- Advanced Control Systems: Our CHA Servo motors integrate seamlessly with advanced control systems, allowing easy compatibility with your existing setup.
Specifications:
- Brand: Chaservo
- Weight: 81g
- Dimensions: 40.5 x 20 x 40 mm
- Rated Voltage: DC 7.4V
- Voltage Range: DC 4.8 – 8.4V
- Output Shaft Spline: 25T, 0.236 in (6 mm)
- Ball Bearings: 2 x Ball Bearings
- Position Sensor: Potentiometer
- Motor Type: Coreless DC
- Working Frequency: 1520µs/333Hz
- Pulse Range: 500 μs – 2500 μs
- Programmable: Yes
Material:
- Case Material: Aluminium
- Gear Set Material: Metal gears
Holding Torque:
- At 4.8V: 24.0 kg·cm
- At 6.0V: 416.62 oz·in (30.0 kg·cm)
- At 7.4V: 36.0 kg·cm
- At 8.4V: 555.49 oz·in (40.0 kg·cm)
Output Torque:
- At 4.8V: 16.0 kg·cm
- At 6.0V: 227.75 oz·in (20.0 kg·cm)
- At 7.4V: 24.0 kg·cm
- At 8.4V: 27.0 kg·cm
No-load Speed:
- At 4.8V: 0.13 sec/60°
- At 6.0V: 0.11 sec/60°
- At 7.4V: 0.09 sec/60°
- At 8.4V: 0.08 sec/60°
Max. Current:
- At 6.0V: 4.15 A
- At 7.4V: 4.95 A
- At 8.4V: 5.85 A
At Aerobertics, we understand the importance of precision and reliability in your projects. That’s why our CHA Servo motors are the perfect choice for enhancing motion control and boosting system performance.
