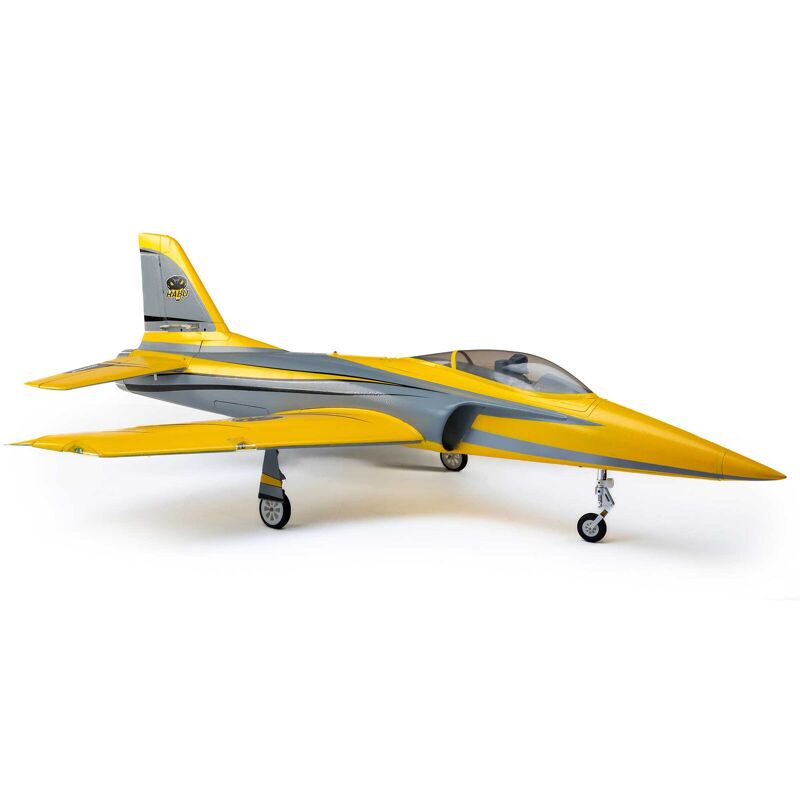

E-flite Habu XS 80mm EDF RC Jet – High Performance Meets Accessibility
Available now at Aerobertics
Inspired by the iconic Habu 32x – one of the most advanced electric ducted fan (EDF) sport jets ever designed – the E-flite® Habu XS (eXtra Sport) 80mm brings enhanced speed, aerobatic capability, and exceptional low-speed handling to a wide range of RC pilots. This “full-house” jet is ideal both as a first EDF for newer pilots and as a thrilling everyday performer for experienced flyers.
Engineered as a larger and more powerful evolution of the popular Habu SS 50mm and 70mm series, the Habu XS features a distinctive aerodynamic design including swept-back trailing edges and leading-edge wing extensions. These enhancements deliver superior performance across a broad flight envelope — from slow, stable landings to impressive high-speed passes.
At Aerobertics, we’re excited to offer this jet as part of our collection because it truly bridges the gap between approachability and top-tier performance in the EDF category.
Key Features:
- Spektrum AR637TA+ Receiver with telemetry, AS3X+® stabilization, and optional-use SAFE® Select technology.
- Loaded Smart Transmitter File (STF): Automatically configures NX and iX series transmitters during binding.
- 80mm 12-Blade EDF System powered by a factory-installed Spektrum brushless inrunner motor and Avian 130A Smart ESC.
- Turbine-like Sound & Performance with no “cheater” holes — optimized ducting ensures maximum efficiency.
- Top Speeds up to 120 MPH and strong vertical climb capability.
- Compatible with 6S 4000–7000mAh LiPo batteries, delivering excellent flight time and flexibility.
- Fast, Tool-Free Assembly: No glue required; wing and stabilizers bolt in securely for quick setup.
- Shock-Absorbing Electric Retracts with trailing-link struts for operation from grass or paved surfaces.
- Functional Flaps for shorter takeoffs, smoother landings, and enhanced low-speed performance.
- Eight Digital Metal-Geared Servos with ball-linkages and captured rod hinges for precise control.
- Durable EPO Construction with composite reinforcements, plastic-capped hatches, and a high-visibility factory paint scheme.

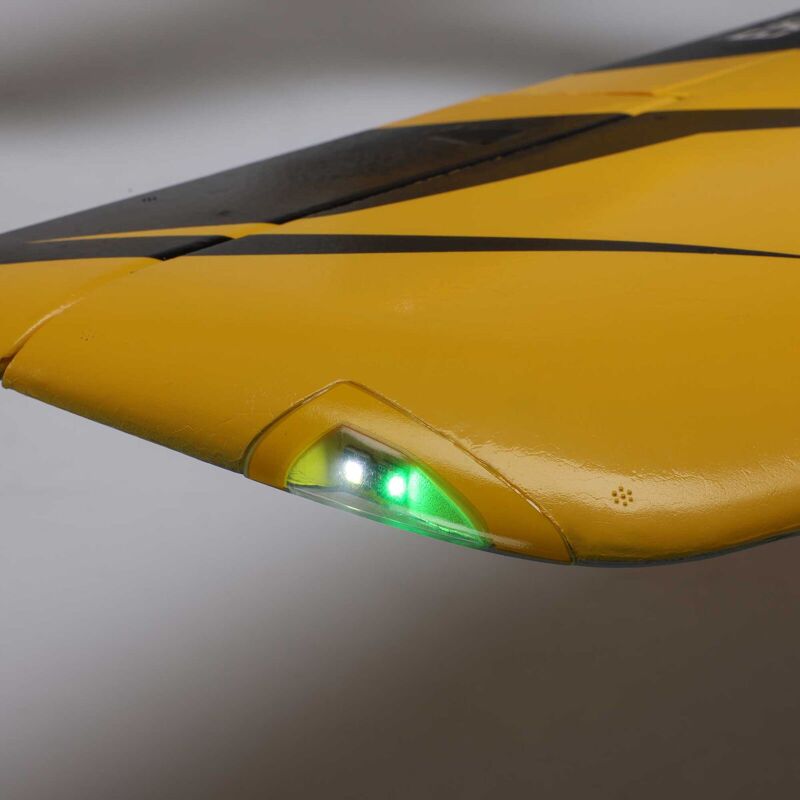

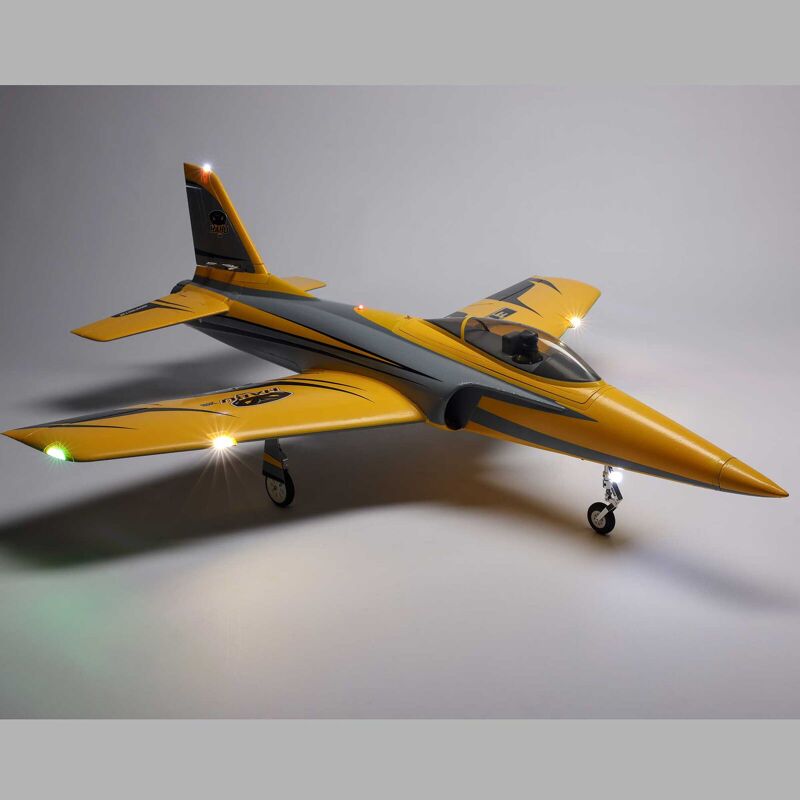

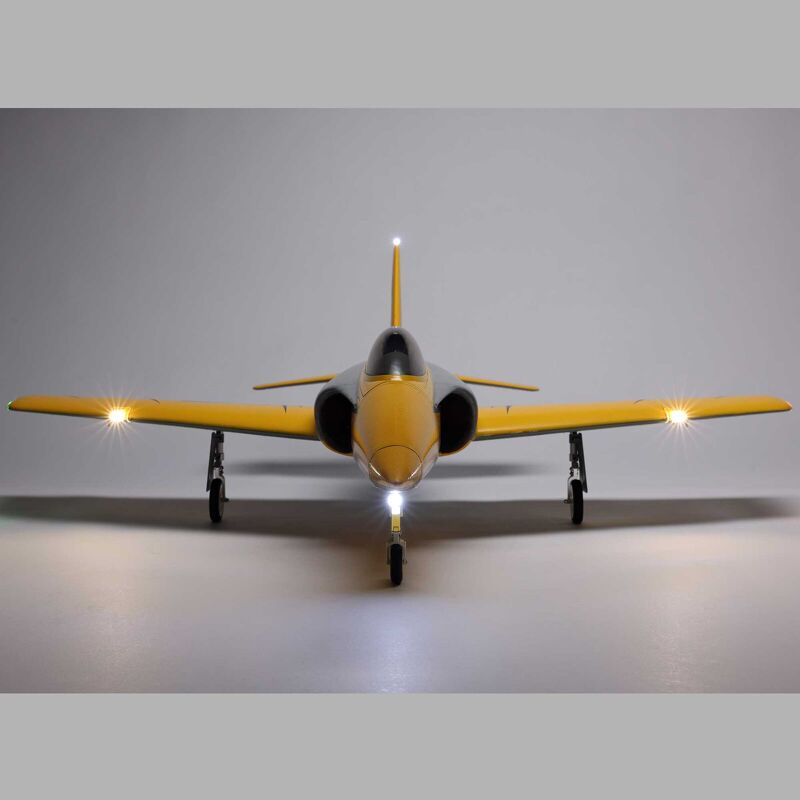

- LED Landing and Navigation Lights for enhanced visibility and realism.

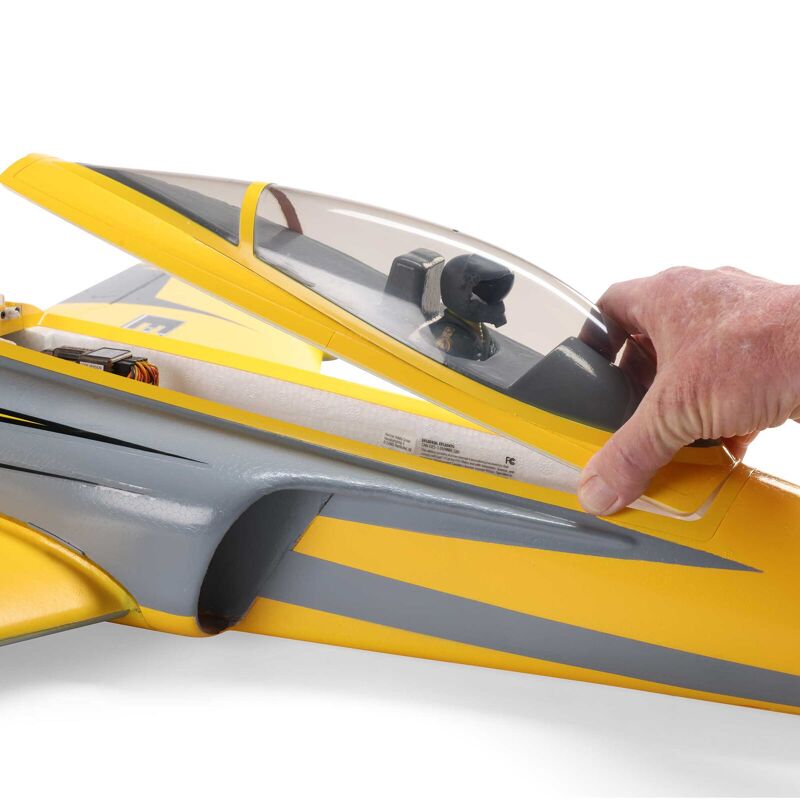

- Large Hatch with Pilot Detail for easy battery access and scale appearance.
Skill Level 2 – Some Experience Required
Skill Level 2 aircraft, like this one, are suitable for RC pilots who already have some experience and the skills to assemble, set up, and fly similar class models. And although this is one of the easiest-to-fly “full-house” Habu models yet, it’s not a suitable first-ever RC aircraft for new pilots or first-ever EDF (Electric Ducted Fan) jet model for intermediate to experienced RC pilots. You should have the experience and skills necessary to successfully fly simpler EDF models like the E-flite Habu SS (Super Sport) 50mm or 70mm or similar jet models before attempting to fly the Habu XS (eXtra Sport) 80mm EDF.
Are you new to flying RC (Radio Controlled) aircraft? If you are, the Habu XS 80mm is not a suitable first-ever RC model, and we recommend learning to fly with one of our purpose-built trainer aircraft such as the E-flite® Habu STS (Smart Trainer with SAFE) 70mm EDF (www.horizonhobby.cc/HabuSTSRTF). It’s equipped with exclusive and innovative SAFE technology, making it possible for almost anyone to learn to fly successfully! The Ready-To-Fly (RTF) Basic version includes nearly everything needed to fly (except for a compatible LiPo battery and charger sold separately or together in a money-saving Powerstage bundle) and is a perfect choice if you’re a new RC pilot.
Exclusive Technologies

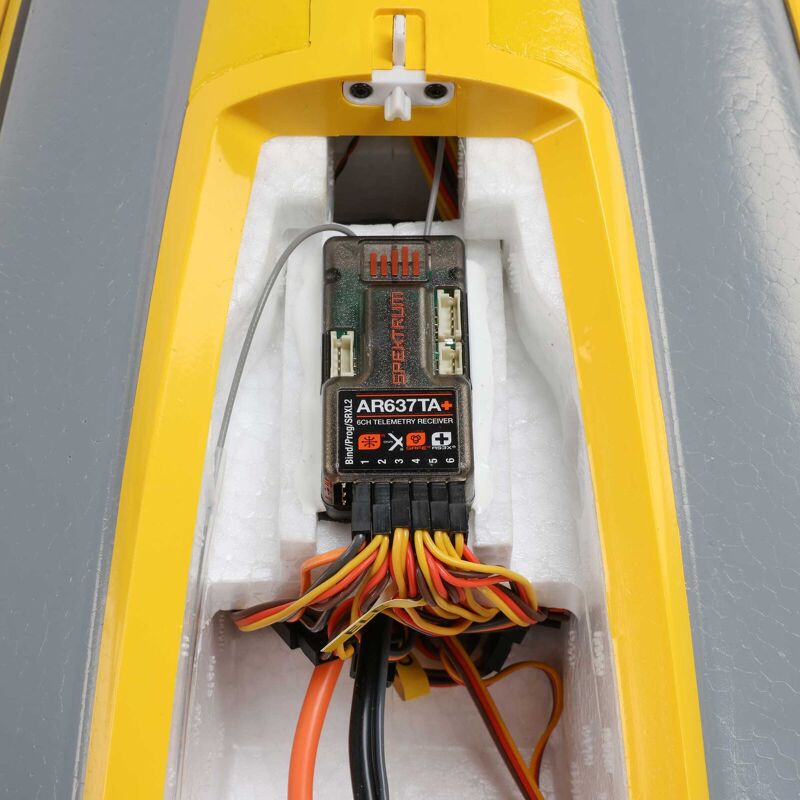

The BNF Basic version Habu XS 80mm EDF is equipped with exclusive Spektrum AS3X+ and SAFE Select technologies. Enhanced AS3X+ technology works behind the scenes to smooth out the effects of wind and turbulence and deliver an even more locked-in feel than standard AS3X, which makes it seem like you’re flying a much larger airplane. Optional-use SAFE Select offers pitch and bank angle limits and automatic self-leveling that can be turned on and off at the flip of a switch! If you don’t want to enable the SAFE Select features, simply bind the receiver normally, and only AS3X+ will be active. The receiver is also loaded with a Smart Transmitter File (STF) that allows you to import all the settings for NX and iX series transmitters during the binding process to be ready to fly in less time than ever!
Smart Technology
The exclusive Spektrum Avian Smart ESC provides a variety of real-time power system-related telemetry data, including overall battery voltage, current draw, motor RPM, and more – with both Smart and non-Smart batteries – via compatible receivers (including the AR637TA+) and Spektrum AirWare equipped transmitters (including the DX6e and 8e, DX6 G2/3 and 8 G2, the DX9, NX6 to 20, iX12 to 20 and others) while you fly. Plus, optional-use motor/thrust reversing can help shorten rollout after landing and offers other special ground handling capabilities (7–8+ channel transmitter required for reversing).
eXtra Capable Gear

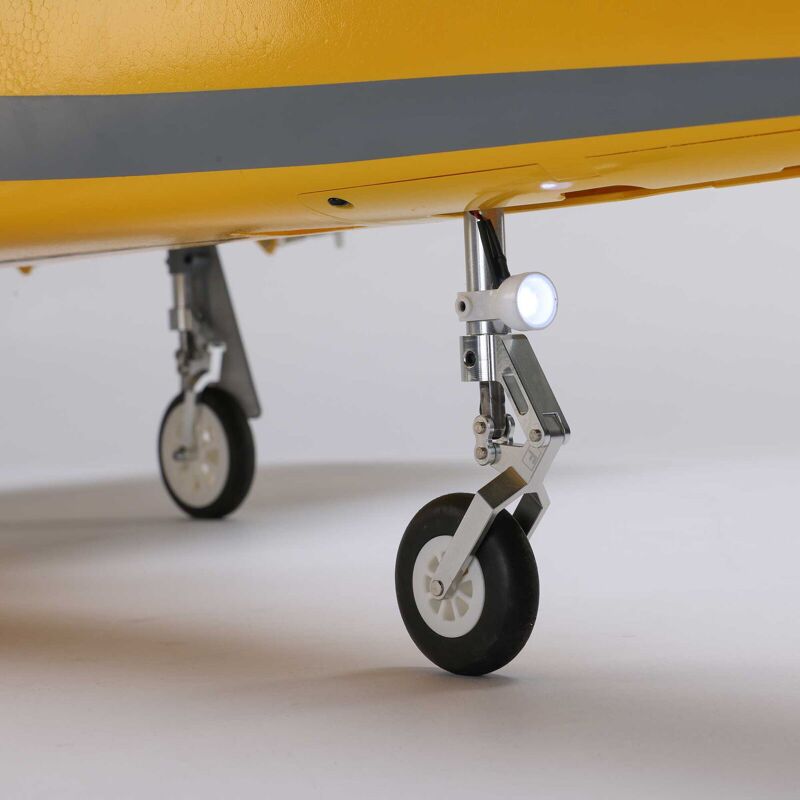

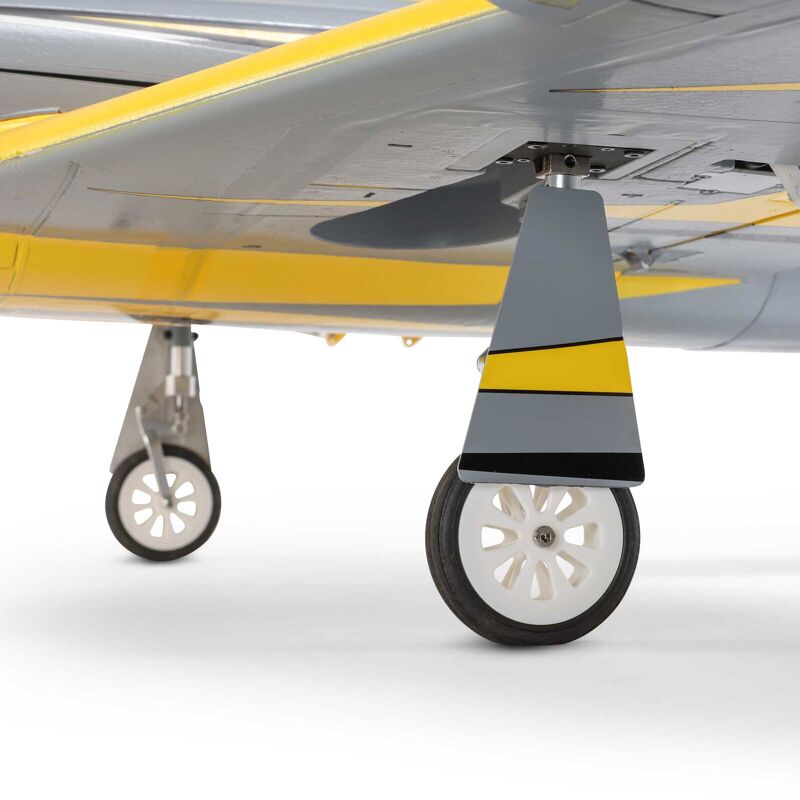

Shock-absorbing, trailing link struts on the nose and main gear soak up the bumps of rough surfaces, including grass, and make flying from a wider variety of fields possible. The reliable electric retracts have durable metal components, and the steerable nose wheel plus wide-spaced main gear offers excellent ground handling.
eXtra Functional Features

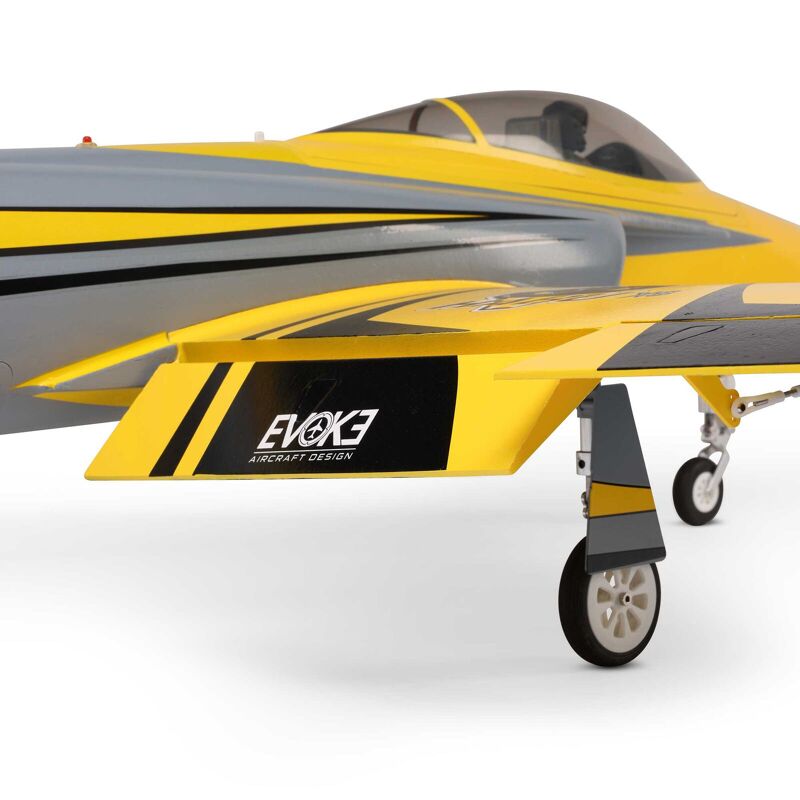

The factory-installed flaps offer improved slow-flight capability and performance, making it possible to take off and land in shorter distances and at slower speeds. This makes the Habu XS 80mm a perfect first “full-house” jet model for those moving up from simpler EDF models. It’s also equipped with LED navigation and landing lights for improved visibility and orientation.
eXtra Precision
The composite-reinforced EPO airframe is lightweight yet durable. The eight factory-installed digital, metal-geared servos with ball-link equipped linkages, plus control surfaces with captured rod hinges, deliver crisp and precise control at every speed.
eXtra Capability

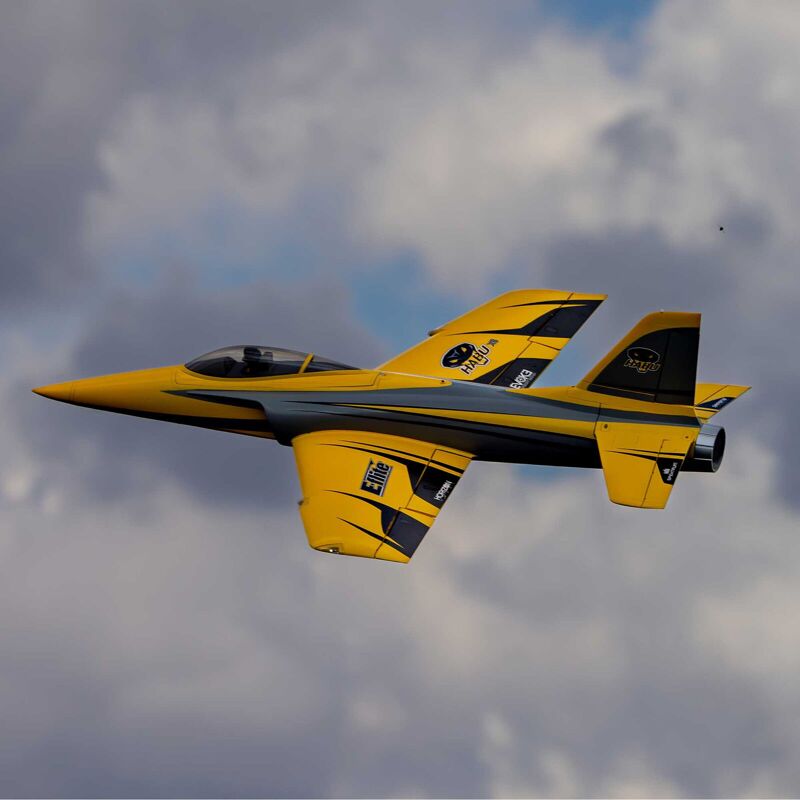

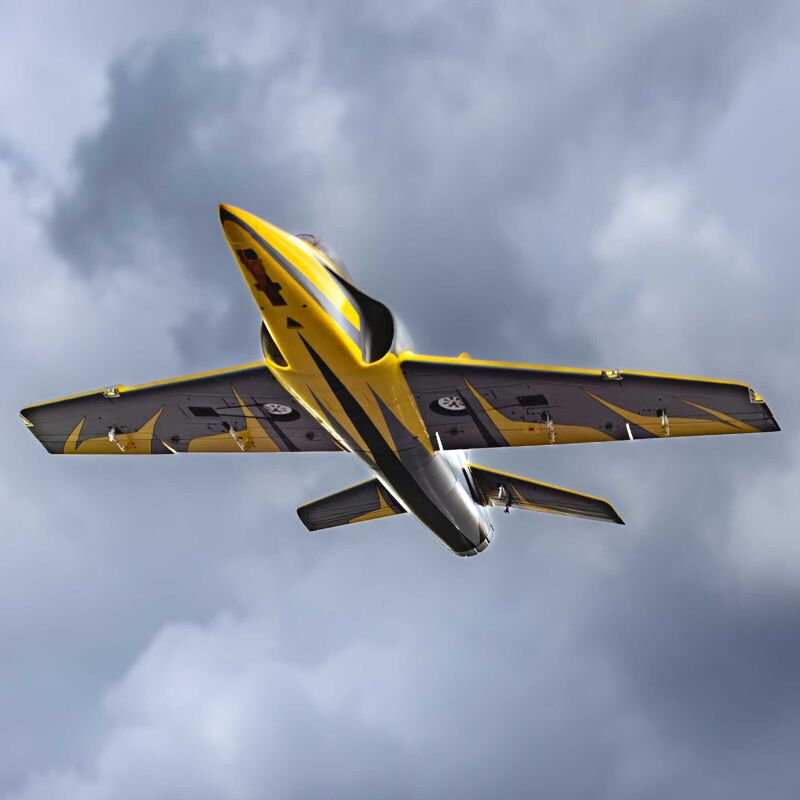

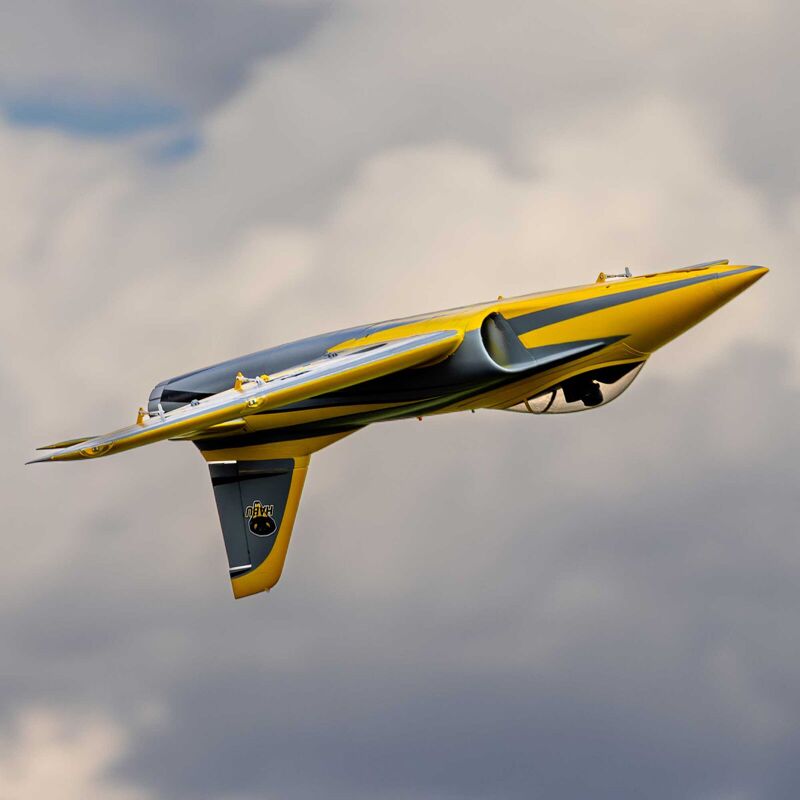

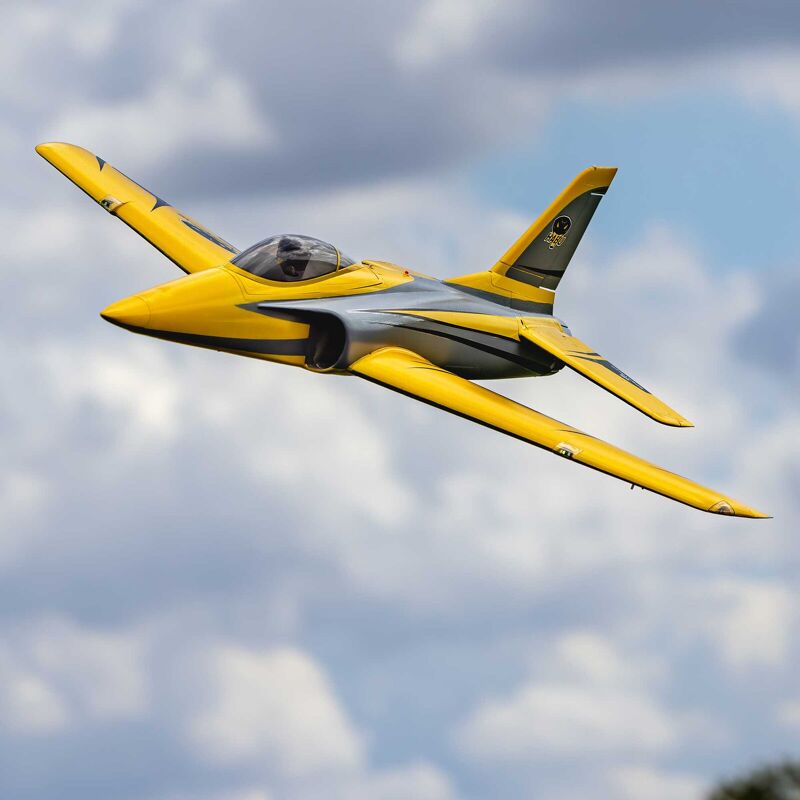

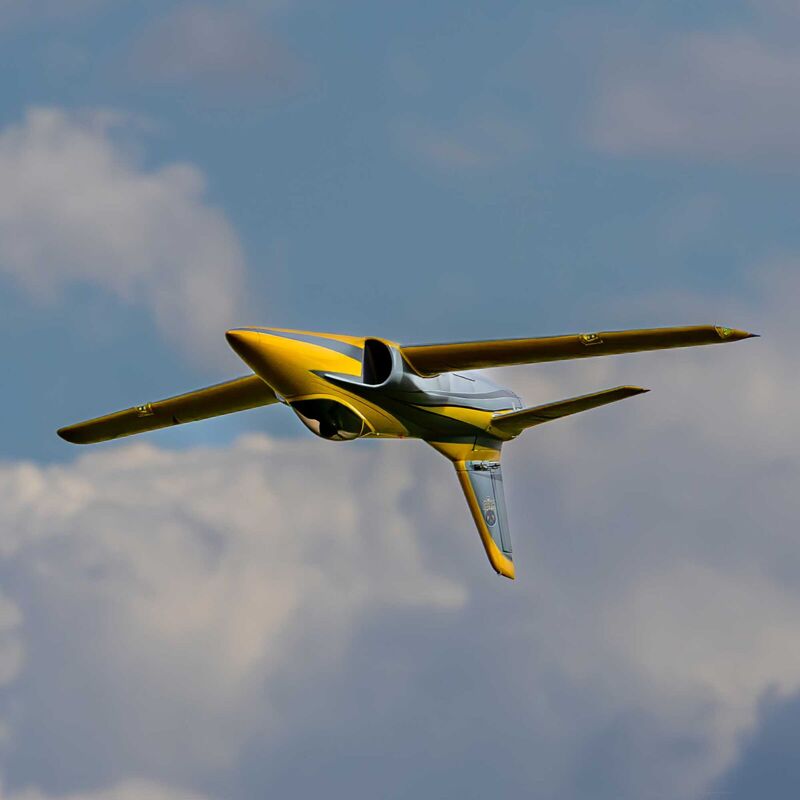

The Habu XS design offers incredible handling across a wide speed range and flight envelope. From slower-than-expected landings and low-speed passes to 120+ MPH high-speed flybys, the airframe and power system deliver unbelievable performance and aerobatic capability so you can perform giant loops, rolls, knife edge flight, snaps, and other maneuvers.
eXtra Easy Assembly

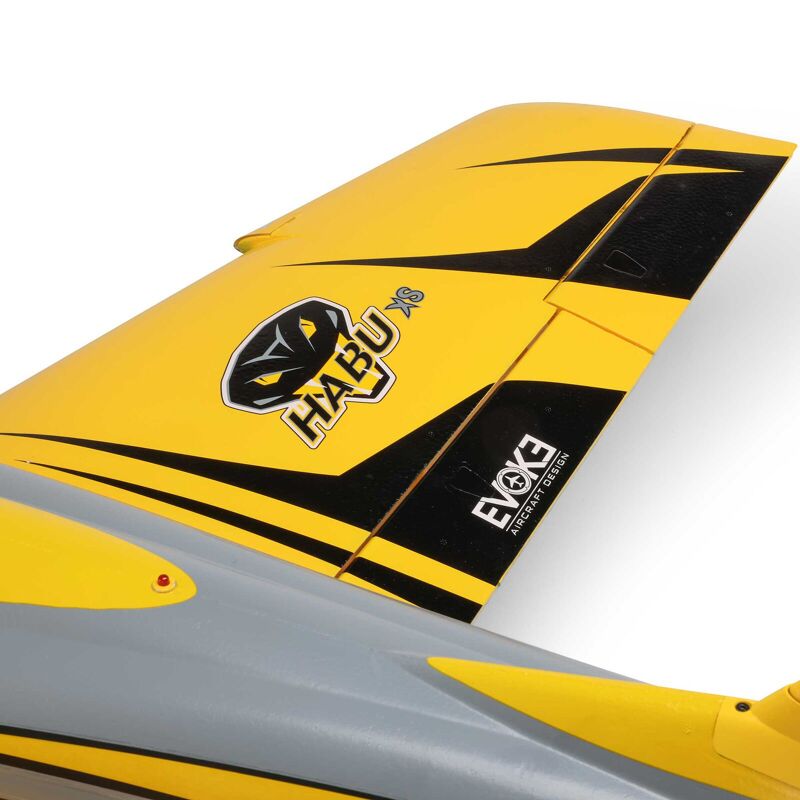

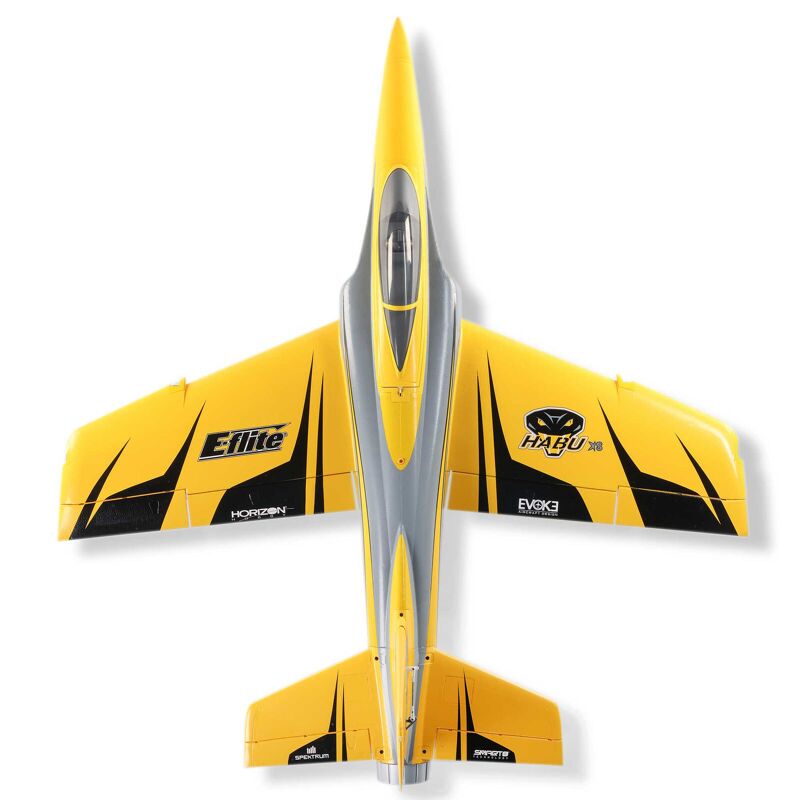

No glue is required for assembly, and you can have the Habu XS ready to fly in less time than it takes to charge a battery! The one-piece wing with hands-free connections bolts into place and can easily be removed for convenient storage and transport. Plus, the airframe is factory-finished in a premium, fully painted, and high-visibility trim scheme.
eXtra Performance
The 12-blade 80mm fan, Spektrum brushless inrunner motor and Avian 130-amp ESC combine with your 6S 4000–7000mAh 30+C LiPo battery to deliver excellent vertical performance and a fantastic speed range with virtually instantaneous throttle response. But what makes the experience truly rewarding is the sound the power system produces—it’s almost like a real turbine engine.
Technical Specifications

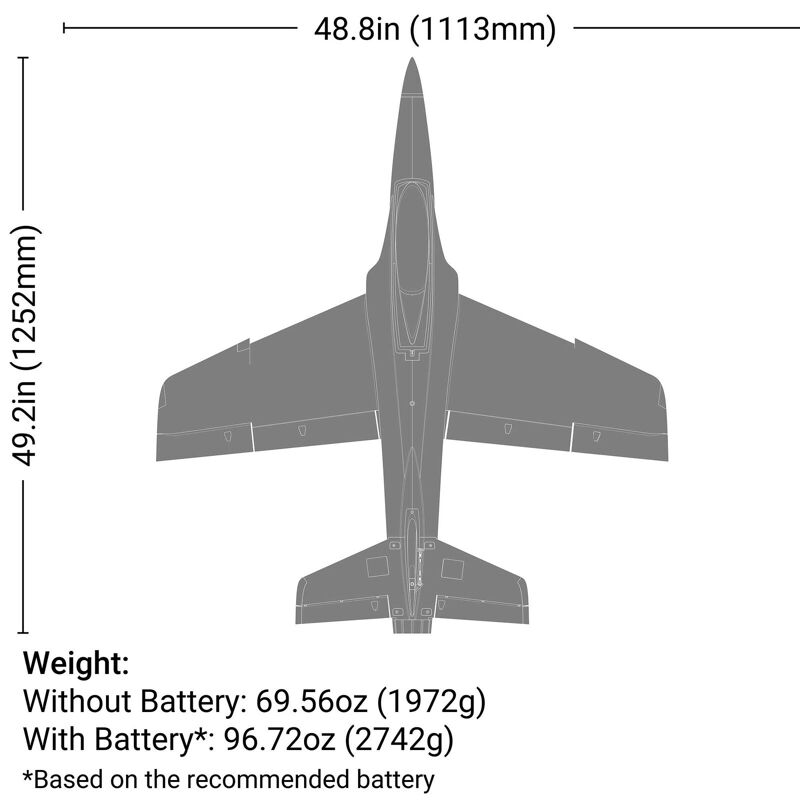

- Wingspan: 1113mm
- Length: 1252mm
- Weight (without battery): 69.56 oz (1972 g)
- Weight (with recommended battery): 96.72 oz (2742 g)
- Motor Type: 4-pole Brushless Inrunner 3665–2170Kv
- EDF Fan: 80mm, 12-blade
- ESC: Spektrum Avian 130A Smart
- Battery Compatibility: 6S 22.2V LiPo, 4000–7000mAh, 30C or higher, IC5/EC5 connector
- Servos: 8 factory-installed digital, metal-geared servos
- Receiver (BNF version): Spektrum AR637TA+ with AS3X+ and SAFE Select
- Functional flaps
- Electric retracts with shock-absorbing struts
- LED navigation and landing lights
- Optional-use thrust reversing (requires 7+ channel transmitter)
- Skill Level: Level 2 (Intermediate)
- Technology: AS3X+, SAFE Select
- Estimated Assembly Time: Less than 1 hour
- Center of Gravity (CG): 125mm ±10mm from the leading edge
What’s in the Box:
- (1) E-flite Habu XS 80mm EDF Jet
- (1) Spektrum Brushless Inrunner Motor (installed)
- (1) Spektrum Avian 130A Smart ESC (installed)
- (8) Spektrum Digital Metal-Geared Servos (installed)
- (1) Spektrum AR637TA+ Receiver (installed, BNF version)
- (1) Full-color Product Manual
What You’ll Need:
- Transmitter: 6-channel Spektrum DSMX/DSM2 for standard flight | 7-channel for SAFE Select or motor reversing | 8+ channel for both features simultaneously
- Battery: 6S 4000–7000mAh 30+C LiPo with IC5 or EC5 connector
- Charger: Compatible LiPo charger (sold separately)
