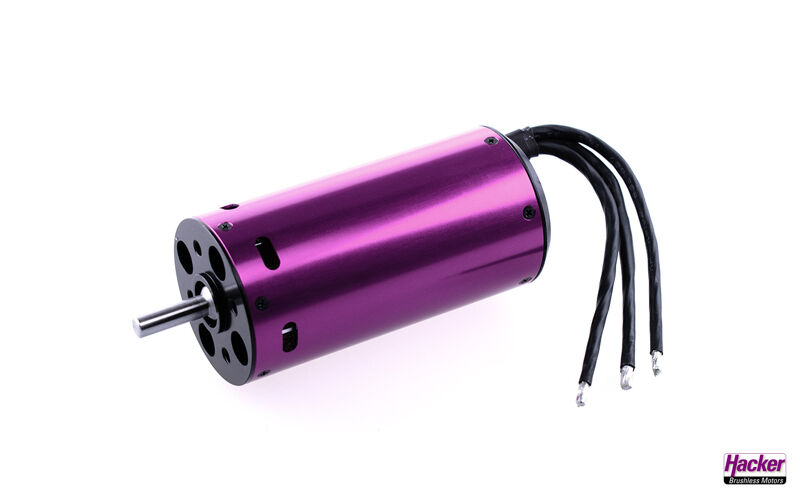

Hacker E50-M 1,5Y kv1300

Hacker E50-M 1,5Y kv1300

Hacker

HACK62100510

not in stock

€ 187,99 € 155,36 excl. VAT

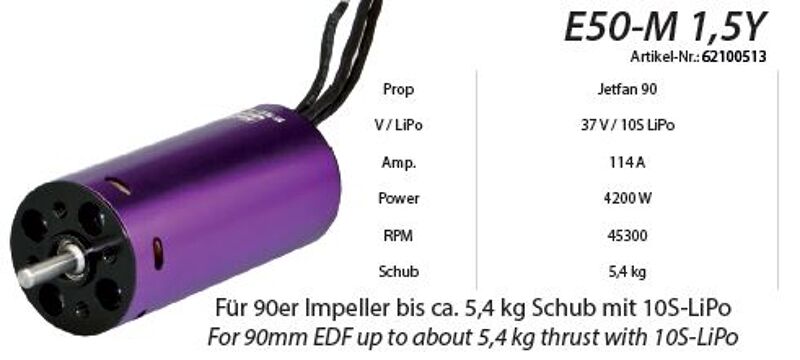

our 4-pole 10S ductec fan motor for 90mm fans.

E50-M 1,5Y

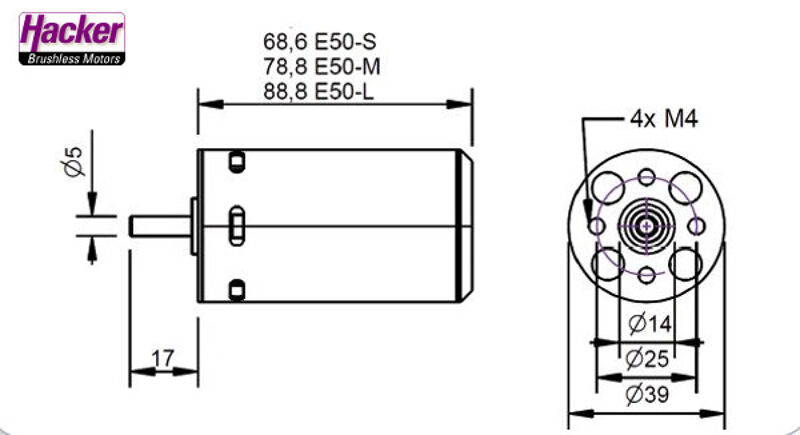

lenght: 79mmdiameter: 39,1mmweight: 375gKv: 1300poles: 4R(I): 12mOhmI(0)@37V: 3,4A

recommended timing: 10-15°

Shaft Diameter: 5mmShaft Lenght: 17mm

General Info

Brand: Hacker

Item Nr: HACK62100510

Barcode: 4250320240570,00

Motor - Specs

Motor - Input Voltage Range (V): 10S Li-Po

Motor - KV (Rpm/V): 1300,00

Motor - Poles: 4-Pole

Motor - Switching Frequency (kHz): 8 kHz

Motor - Timing: 10-15

Motor - Turns (T): 1,50

Motor - Dimensions

Motor - Dia. ø (mm): 39,10

Motor - Length (mm): 79,00

Motor - Shaft Dia. ø (mm): 5.0 mm

Motor - Weight (g): 375,00
