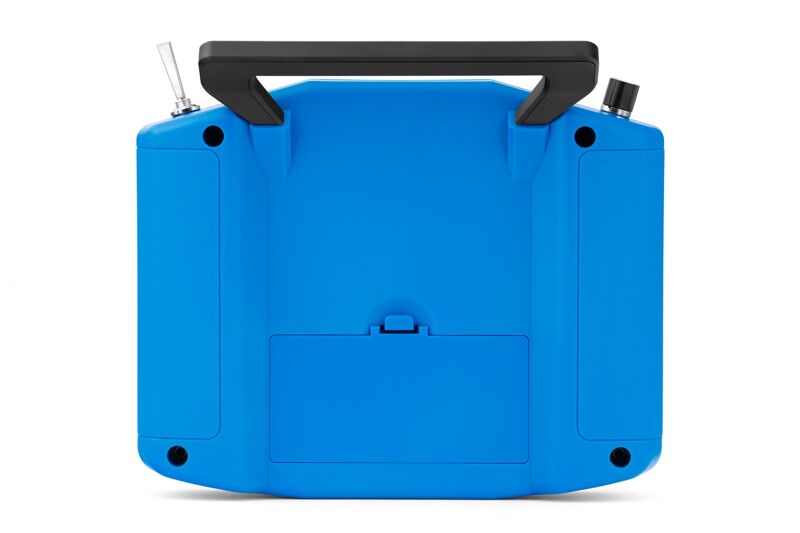

KAVAN V5 – 24-Channel 2.4GHz Transmitter with Full Telemetry
The KAVAN V5 is a versatile, entry-level 24-channel RC transmitter designed for pilots who demand precision, reliability, and ease of use. Utilizing the advanced 2.4GHz ACCESS or ACCST transmission system, the V5 delivers lightning-fast response times of up to 4ms and an impressive range extending to tens of kilometres. Its lightweight and streamlined ECOS operating system simplifies setup, operation, and programming, making it ideal for beginners and experienced pilots alike.
The V5 is compatible with a wide variety of KAVAN and FrSky receivers—telemetry-capable or standard—and supports classic PWM and serial outputs, giving you full flexibility for aeroplanes, helicopters, multicopters, boats, and land vehicles.
Compact, Comfortable, and Fully Customizable
The transmitter’s ergonomic design draws on the proven layouts of the V20 and V15, featuring robust, textured grips for secure handling. All controls are easily reachable, and the centring spring strength and ratcheting can be adjusted for a personalized feel.
For precise control, the V5 includes:
- CNC aluminium-stick gimbals with potentiometers
- 1 three-position switch
- 2 two-position switches

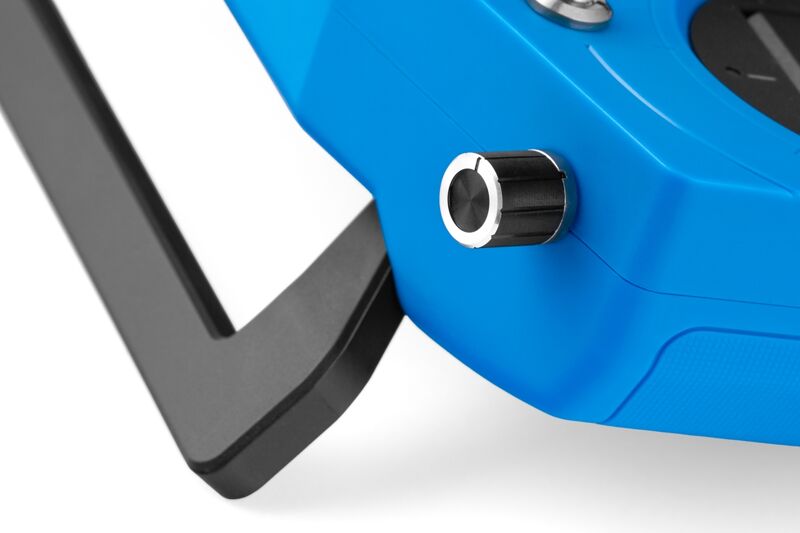

- 1 programmable rotary knob
- 4 digital trims
- 4 navigation buttons
The built-in flash memory stores up to 32 models, and the USB-C port allows both charging and memory access. The 2S Li-ion 2600 mAh battery is balanced internally for safe and efficient charging.
Powerful Features for Every Pilot
- Up to 8 flight modes for optimal control in all conditions
- Full telemetry with support for a wide range of sensors
- Reversible servo operation, end-point adjustments, and rate limiting
- Fail-safe emergency settings for peace of mind
- Flexible mix programming and logical switch linking
- Rate progression settings via exponential or 17-point curves
- Trainer mode via 3.5mm cable
- Adjustable display backlight, calibration options, beeper alerts, and range check
- Servo monitoring, dual timers, and 3 receiver operation modes for redundancy
Technical Specifications
- Transmission system: ACCESS / ACCST 2.4GHz
- Channels: Up to 24
- RF output power: ≤15 dBm (E.I.R.P.)
- Antenna: Built-in 2.4GHz, 3.01 dBi gain
- Dimensions: 185 × 161 × 91 mm
- Weight: 515 g (excluding battery)
- Battery: 2S Li-ion 2600 mAh, 6.5–8.4 V
- Operating temperature: -10°C to 60°C
- Display: 2.15" monochrome LCD (128×64 px)
Included in the Box
- KAVAN V5 transmitter
- 2S Li-ion 2600 mAh battery
- KAVAN R6L receiver
All KAVAN transmitters come with a three-year extended warranty, reflecting the brand’s confidence in durability and performance.
At Aerobertics, we love the KAVAN V5 for its unbeatable combination of precision, versatility, and user-friendly operation. Whether you’re flying planes, heli, or multi-rotors, it’s the ideal companion for pilots looking to push the limits of control and performance.
