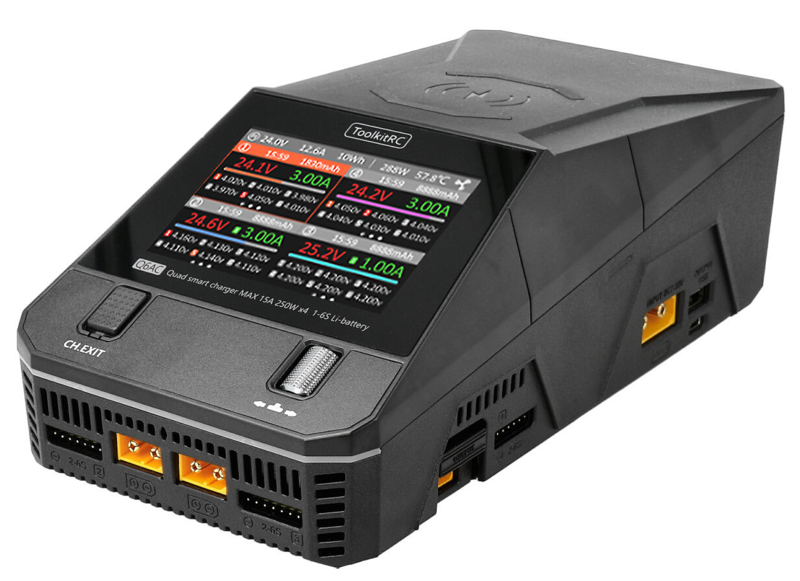

Q6AC Multi-Function Four-Channel Smart Charger
High-Performance Charging with IPS Display and Balancer Function
The Q6AC is a high-efficiency, four-channel smart charger designed for advanced users who require power, precision, and flexibility. With up to 250W per channel and integrated balancing for lithium batteries, this unit offers versatile charging for a wide range of battery types. The intuitive roller-based menu navigation and 3.5" IPS color display ensure easy operation and clear real-time monitoring.
Key Features
- High Charging Power: Up to 250W per channel, with a maximum charging current of 15A
- Four Independent Channels: Charge multiple battery types simultaneously
- Discharge Capability: Normal Mode: Up to 12W per channel at max. 3A | Recycle Mode: Up to 250W per channel at max. 15A
- Battery Memory: Store up to 32 battery profiles across 3 groups
- Battery Safety: Adjustable shutdown voltage for lithium batteries
- Advanced Balancing: 800mA per cell (2–6S)
- Multilingual User Interface
- Firmware Upgradeable: USB port for software updates
Technical Specifications
- Input Voltage: AC: 100–240V, max. 5.0A | DC: 7–30V, max. 50A
- Charging Power: DC Mode: 0.1–15A, up to 250W × 4 channels
- AC Mode: 0.1–15A, 250W × 2 channels | 0.1–15A, 100W × 4 channels
- Discharging Power: 0.1–3A, 12W × 4 (Normal Mode) | 0.1–15A, 250W × 4 (Recycle Mode)
- USB Output: USB-A: 30W | USB-C: 65W (20V), supports PD, QC, AFC, FCP, SCP, PE, SFCP, VOC
- Charging Accuracy: <0.005V
- Supported Battery Types: LiPo / LiFe / LiIon / LiHV: 1–6S | NiMH / NiCd: 1–16S | Pb: 1–10S
- Custom Voltage Range: 1.0V–5.0V (1–6S)
- Display: 3.5" IPS screen, 480×320 resolution
- Dimensions: 220 × 113 × 82 mm
- Weight: 1120 g
Included in the Box
- 1 × Q6AC Charger
- 1 × AC Power Cable
- 1 × USB Cable
- 1 × XT90 DC Input Cable
- 1 × Display Protection Film
- 1 × User Manual
