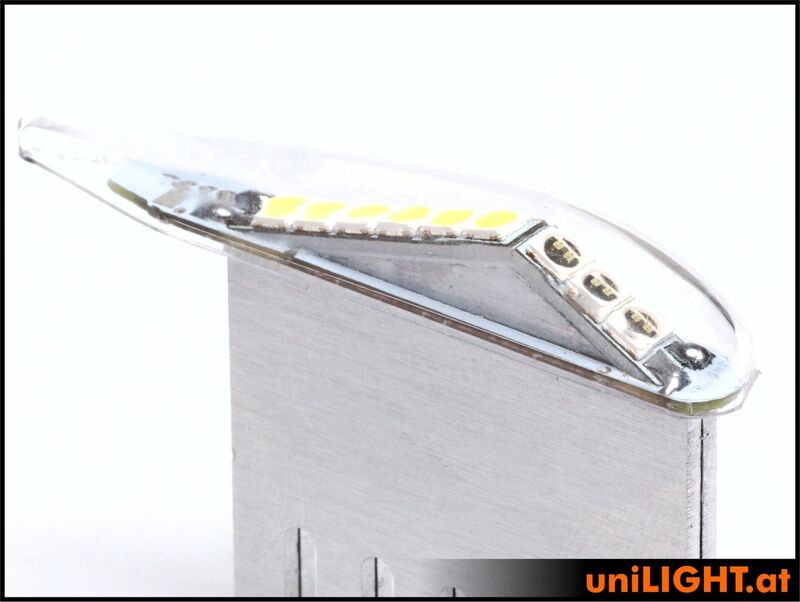

Dual Navigation/Strobe LED Lights
Designed for optimal visibility, these lights feature an angled design that ensures forward emission for position lights and side emission for strobe functionality—delivering excellent visibility with minimal glare, just like our prototype-tested models.
Thanks to their ultra-compact profile, these lights integrate seamlessly into even the thinnest wing tips of jets, sport aircraft, and gliders, without compromising on performance or style.
Technical Specifications:
- Performance: 4W x 2 Green, 8W x 2 WHITE (reference power)
- Voltage: 8V (12V); 0.3A RED/GREEN; 0.6A WHITE
- Light Intensity: RED: ~100 Lumen | WHITE: ~590 Lumen
- Dimensions: 6.6 x 55.3 mm
- Weight: 9g (without cable)
Included in the Package:
- 1m silicone cable
- Highly transparent, extremely durable cover cap made of injection-molded polycarbonate
Operating Details:
- Voltage: 2S/8V or 3S/12V (additional resistor required for 3S)
- Cable: 1m silicone, 0.25 mm²
- Design: Aerodynamic, profile-shaped
- Function: Dual Navigation/Strobe
- Dimensions: 6 mm
Assembly Instructions:
Important Safety Information:
High-performance LEDs can become very warm (up to 70°C), which is completely normal. These heat-sink-mounted lights are suitable for continuous operation with proper air convection. Always check operating temperatures after installation. Overheating is not covered by warranty.
Warning: The LED lights are extremely bright! Never look directly into the LEDs.
At Aerobertics, we combine precision engineering and hands-on testing to ensure these lights not only meet but exceed expectations for performance, reliability, and integration.
