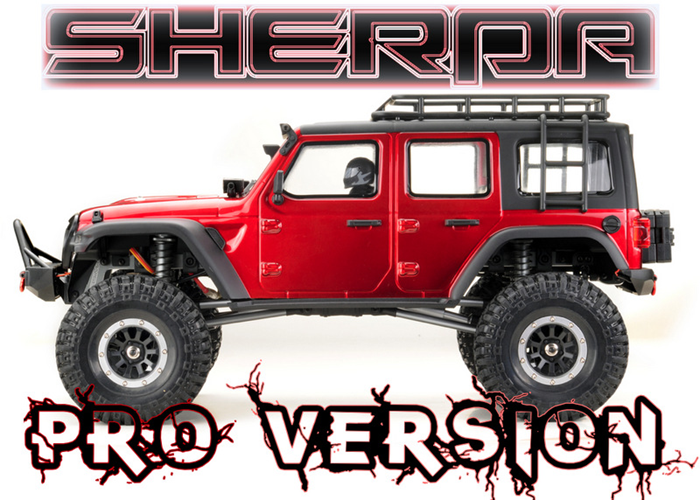

The CR3.4 SHERPA PRO is the best we can offer! In addition to the outstanding features offered by the CR3.4 chassis, we now add the ever-popular Quicrun 1080 WP speed controller from HOBBYWING. Working in conjunction with a 755 brushed motor, the programmable controller really gets the absolute most out of the car.
MORE HIGHLIGHTS:
- HOBBYWING Quicrun 1080 WP speed controller with programming box - 15 programmable features in cooperation with the 2-speed gearbox and independently lockable differentials! This configuration leaves absolutely nothing to be desired!
- 755 motor for even more power! 15x5T and 8800 rpm
- 25kg metal gear servo!
- Steel driveshafts - more weight and almost indestructible!
- Complete gear set made of steel - made for eternity!
- The paint in metallic red and the cockpit with driver figure included - So the PRO is also an optical highlight!
A realistic designed 5mm CNC machined aluminum frame with a heavy duty aluminum 4-link suspension system
UPDATE: September 2021!
Our new oil-filled shocks with 3mm piston rods and outboard springs provide an even better and more realistic response. Tuning springs are also available in soft and hard (sold separately).
Portal axles not only offer a greater distance from the differential housing to the ground than conventional axles, they also have another positive feature. With conventional crawlers, the torque applies so much force that the vehicle jumps over the obstacle. The design of the portal axles reduces the gear ratio at the wheels and virtually eliminates the torque surges of the drive. The overall reduction ratio of the axle drive is more than twice that of non-portal designs to insure a smooth run.
A unique hydraulic steering shock absorber design combined with a 25kg digital and waterproof steering servo...
...hardened steel drive shafts and a steering angle of 45.8° offer the best possibilities to handle any terrain.
The CR3.4 SHERPA features a 2-speed transmission to conquer tough terrain and bring you also fast to the next obstacle. Just push a button on the radio and change from transmission ratio 1/37.1 (low speed) to 1/15.1 (high speed)
Lock and unlock the front and rear differential independently to get the maximum performance on the track - all controlled remotly from your tranmitter and 2x 0,9kg mini servos. Leave the differential unlocked for a smooth hadling at high speed. On tecnical trails you can lock the front differential, the rear differential or even both to handle extreme terrain.
Aluminum motor mount and an adjustable slipper clutch provide a additional protection in extreme conditions.
Hardened steel differential gears and drive parts

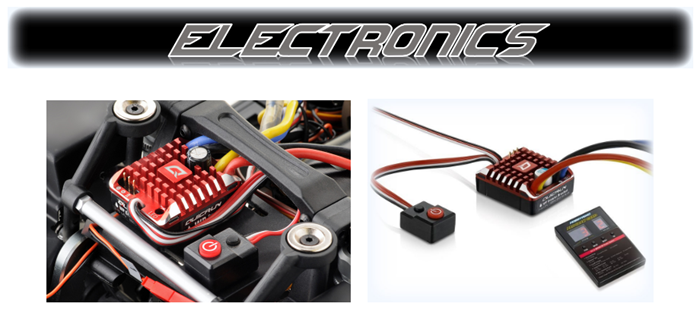

The drive concept - powered by HOBBYWING - includes the ever-popular QuicRun1080 WP speed controller and a 755 motor for rich torque. The built-in BEC is adjustable in voltage, 6V or 7.4 V and with 6A peak load also sufficiently dimensioned for strong servos. With the included LED programming card, a simple setting is done quickly even on the road. With the customizable parameters, there are over 80 setting options, you soon found his optimal setup for the vehicle.
A 25kg digital steering servo with metal gears and 3x 17g mini servos with 0.9kg actuating force for gear ratio and differential lock/unlock are already installed. All servos are waterproof.
The 2.4 GHz 6-channel radio system gives you total control over your vehicle - wether lighting system, 2-speed gear, diff. locks or top speed adjustment
- Evil eye hadlights
- Rear lights
- Turn lights (while steering)
- Search lights
- Marker lights
- Hazard warning lights (front & rear)
- Brake lights
- Roof lightbar
All these functions are combined in the 6-channel receiver. You want to use another 6-channel radio without loosing the lighting function? No problem!
A description how to do you will find in the manual.
Stylish 1.9" beadlock wheels with aluminum rings and 10 bolt design
Super soft tires with a realistic sidewall flex for maximum traction on the rocks
Wheel size: 43x120 mm
Rock sliders and molded inner fender help to protect the chassis from dirt and damage
Flip-Top body with magnetic lock and easy to open battery case
- 1.2mm PC bodyshell with many attachments like
- Towing shackles front/rear
- Rear view mirrors
- Snorke
- 2 Fuel tanks
- High lift jack
- Roof rack with ladder
- Tank filler neck
- Door handles
- Engine hood mount
- License plates
CAR SPECS:
- Length: 542mm
- Width: 250mm
- Height: 240mm
- Ground clearance: 53mm
- Wheelbase: 313mm
- Weight: 2970g
- Approach angle: 60°
- Descent angle: 45°
- Steering angle max: 45.8°
- Rims: 12mm Hex Beadlock 1.9" 32x69mm
- Wheels: 43x120mm
- Shock absorber length: 90mm
- Viscosity shock absorber oil: 500cps
- Gear ratio: 2-speed (Hi 1/15.1 / Lo 1/37.1), remote controlled
- Transmission: module 0.8/32dp - pinion 16Z / main gear 44T
- Drive system: 4WD
ELECTRONIC SPECS:
- ESC: Hobbywing QuicRun 80A brushed/waterproof with XT60-connector (BEC 6V@3A, 7.2V NiMh & 2S LiPo batteries can be used).
- Motor: 755 high-torque brushed motor 15x5T / 8,800 rpm
- Steering servo: 25kg metal gear, digital and waterproof
- Mini servos: 0.9kg, waterproof
- Radio system: 6-channel 2.4GHz remote control (4.8 - 12.0V LiPo capable)
INCLUDES:
- Absima CR3.4 SHERPA PRO RTR Model
- 6-channel 2.4GHz Radio System
- Sticker Sheet
- Manual (DE/ENG/FR)
REQUIRED ACCESSORIES:
The CR3.4 Sherpa allows you to use a variety of 2S & 3S LiPo batteries and NiMH batteries. Different chargers - depending on the selected battery type are available. 4x AA cells are needed for the remote control;For wheel mounting a 7.0mm wheel nut wrench (wheels are not mounted when shipped)
